Cylinder Sleeve

LA SLEEVE

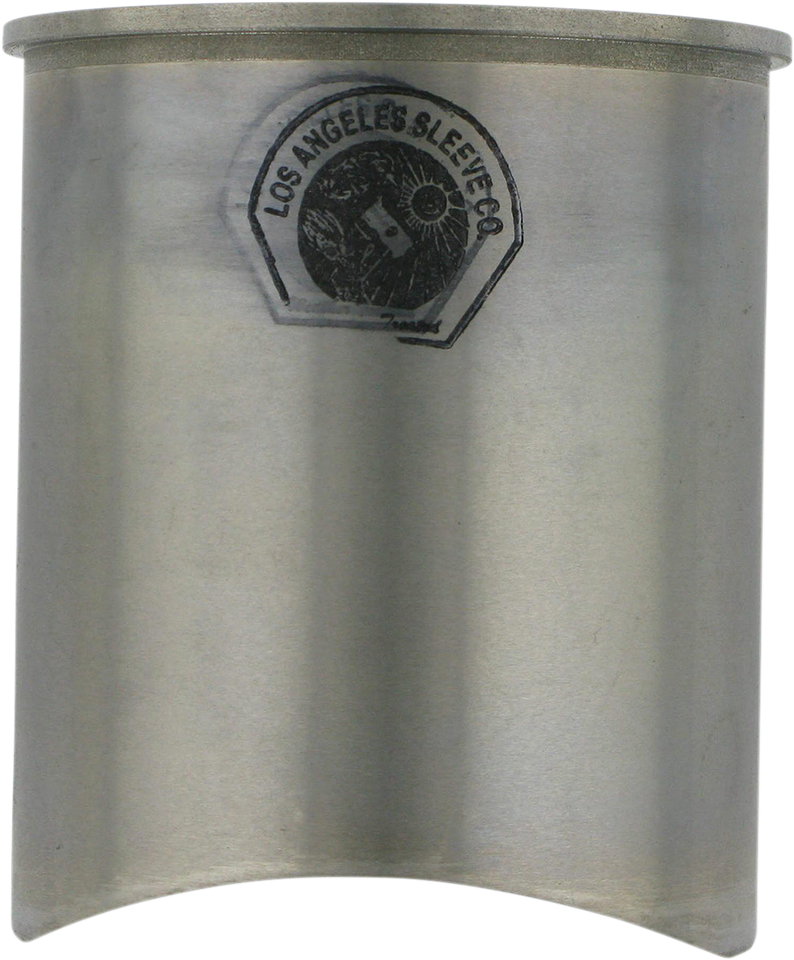

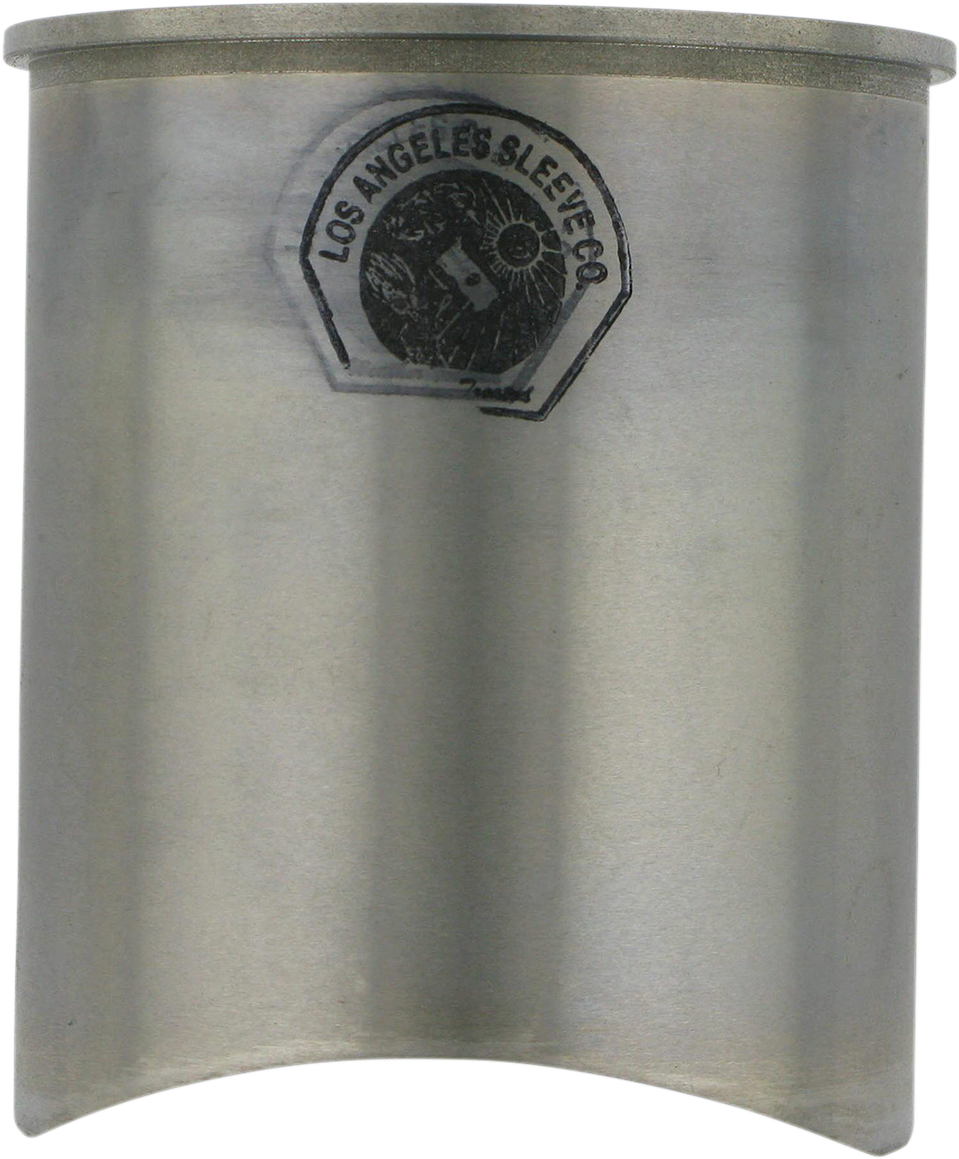

Cylinder Sleeve

0931-0159

$134.95

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
2005 - 2021 Kawasaki KVF 750 Brute Force 4x4i
2008 Kawasaki KRF 750 Teryx 4x4
2009 - 2013 Kawasaki KRF 750 Teryx FI 4x4
2012 - 2022 Kawasaki KVF 750 Brute Force EPS 4x4i
2012 - 2022 Kawasaki KVF 750 Brute Force EPS Camo 4x4i
2008 Kawasaki KRF 750 Teryx 4x4 LE
2009 - 2013 Kawasaki KRF 750 Teryx FI 4x4 LE
2009 - 2013 Kawasaki KRF 750 Teryx FI 4x4 LE Sport

Features

  • Quality replacement cylinder sleeves give old cylinders new life
  • CS – Original barrel has a cast-in iron liner in the cylinder; liner must be bored out completely (do not try to push out the cast-in liner)
  • RS – Original barrel has a replacement sleeve
  • AC – Original cylinder bore is alloy-chrome plated, nikasil, or electrofused; cylinder must be bored to accept new sleeve
  • CL – The cylinder’s original cast-in liner will be bored, but not completely removed; sleeve is designed to insert into the iron-lined cylinder

    • Specs

  • Product Name: Cylinder Sleeve
  • Riding Style: ATV
  • Units: Each
  • Type: AC
  • Bore Size: 85.00 mm
  • Color/Finish: Aluminum
  • Cylinder Bore Coating: Chrome-Moly Alloy
  • Riding Style: UTV

    • Approximate Package Weight & Dimensions

  • Weight: 1.31
  • Height: 3.62
  • Length: 4.44
  • Width: 3.67
