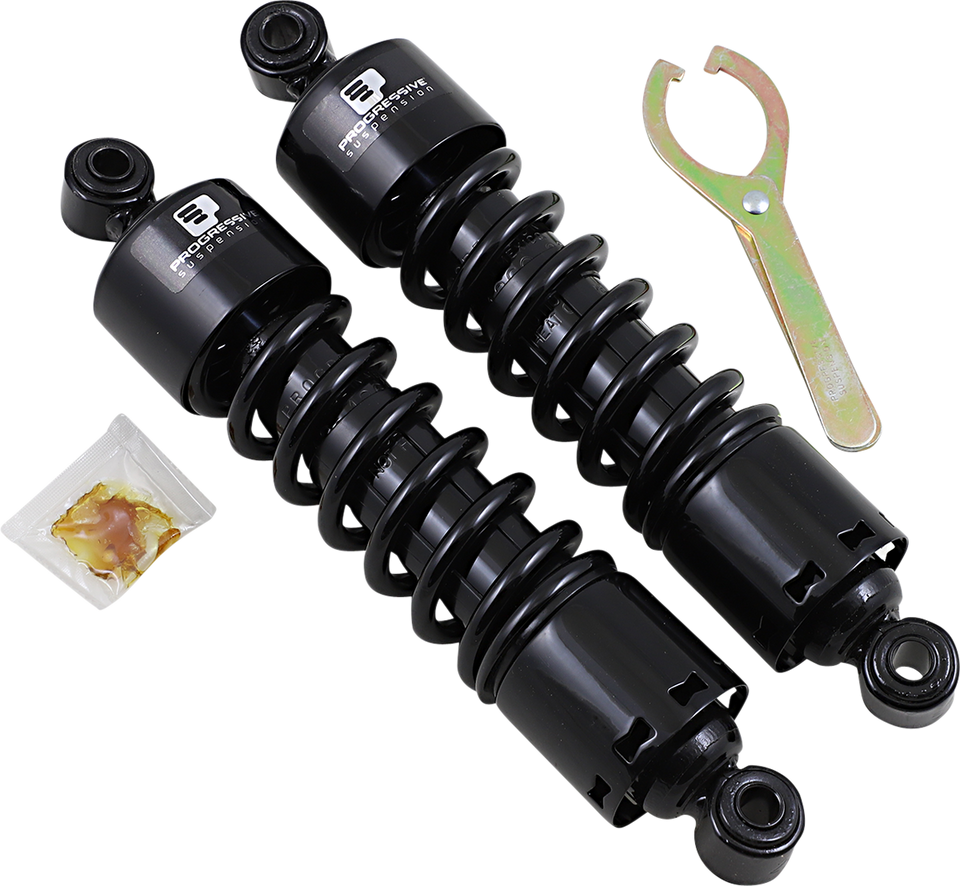

412 Series Shock - 12.5" - Standard - Black - FXD - Lutzka's Garage

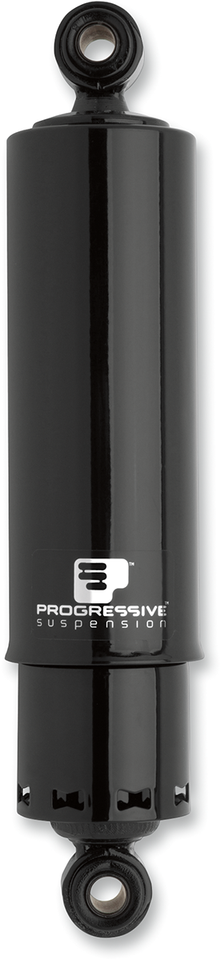

412 Series Shock - 12" - Standard - Black - FXD - Lutzka's Garage
412 Series Shock - 13" - Standard - Black - FXD - Lutzka's Garage

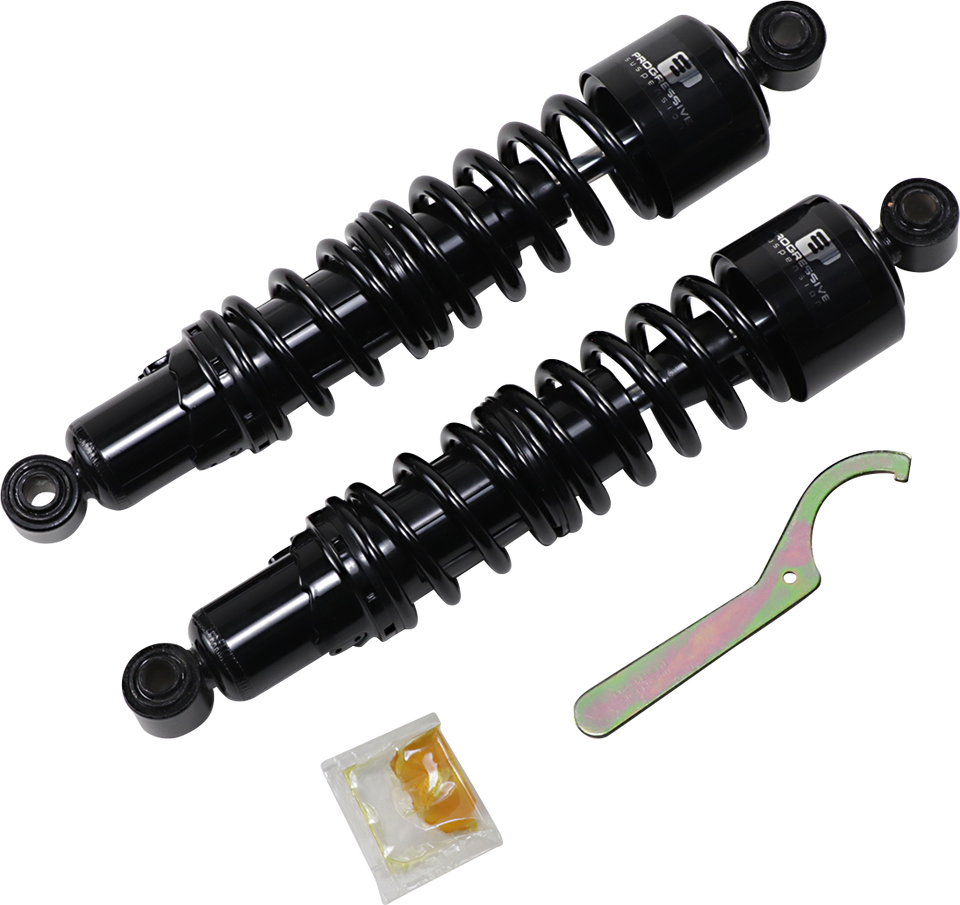

412 Series Shock - 14" - Standard - Black - FXD - Lutzka's Garage

PROGRESSIVE SUSPENSION

412 Series Shock - Standard - FXD

1310-0661

$344.95

-+
Colour :
Black
Size

Ask about this product

DESCRIPTION


Fitments

Years Make Model
1995 - 2006 Harley-Davidson Super Glide FXD
1995 - 2000 Harley-Davidson Dyna Convertible FXDS-CONV
1993 - 2006 Harley-Davidson Low Rider FXDL
1993 - 2006 Harley-Davidson Wide Glide FXDWG
1992 Harley-Davidson Dyna Glide Custom FXDC
1992 Harley-Davidson Dyna Daytona FXDB
1991 Harley-Davidson Dyna Sturgis FXDB
2005 - 2014 Harley-Davidson Super Glide Custom EFI FXDCI
2004 - 2010 Harley-Davidson Super Glide EFI FXDI
2000 - 2017 Harley-Davidson Wide Glide EFI FXDWGI
2008 - 2017 Harley-Davidson Fat Bob FXDF
2004 - 2017 Harley-Davidson Low Rider EFI FXDL
2006 - 2017 Harley-Davidson Street Bob FXDB
2006 Harley-Davidson Super Glide FXD35
2005 Harley-Davidson Super Glide Custom FXDC
2012 - 2016 Harley-Davidson Switchback FLD
2016 - 2017 Harley-Davidson Low Rider S FXDLS
2001 Harley-Davidson Wide Glide FXDWG2
1999 Harley-Davidson Super Glide Sport FXDX
2002 Harley-Davidson Wide Glide FXDWG3

Video


Features

  • Designed specifically for Harley models
  • The 412's simple, durable design makes them a cost effective improvement to your motorcycle's suspension performance
  • A five position cam style spring load preload adjuster lets you easily dial in your ride
  • Some or all shocks listed have TV approval. Refer to most recent TV certificate for current listing

    • Specs

  • Adjustment Style: Automatic
  • Mounting Position: Rear
  • Progressive Spring Rate: 210.00 lb/in - 250.00 lb/in
  • Spring Type: Single Progressive Rate
  • Duty: Standard
  • Extended Length: 318,00 mm (12,50")
  • Extended Length: 12.50"
  • Model: 412 Series without Covers
  • Progressive Spring Rate: 3.75 kg/mm - 4.50 kg/mm
  • Units: Pair
  • Material: Steel
  • Product Name: Shock Absorber
  • Damping Method: Gas Charged
  • Extended Length: 318.00 mm
  • Progressive Spring Rate: 3,75 kg/mm - 4,50 kg/mm (210 lb/in - 250 lb/in)
  • Reservoir Location: Internal
  • Riding Style: Street
  • Type: Coilover Monotube

    • Approximate Package Weight & Dimensions

  • Weight: 10.55
  • Height: 3.46
  • Length: 17.12
  • Width: 6.77
