DESCRIPTION
Fitments
| Years |
Make |
Model |
| 1997 - 2013 |
Kawasaki |
KVF 400 Prairie 4x4 |
| 1997 - 2013 |
Kawasaki |
KVF 400 Prairie 2x4 |
| 1999 - 2002 |
Kawasaki |
KVF 300 Prairie 4x4 |
| 1999 - 2002 |
Kawasaki |
KVF 300 Prairie 2x4 |
| 2003 - 2013 |
Kawasaki |
KVF 360 Prairie 2x4 |
| 2003 - 2013 |
Kawasaki |
KVF 360 Prairie 4x4 |
| 1997 - 2002 |
Kawasaki |
KVF 400 A Prairie 4x4 |
| 1997 - 2002 |
Kawasaki |
KVF 400 B Prairie 2x4 |
| 1997 - 2002 |
Kawasaki |
KVF 400 B Prairie 4x4 |
| 1997 - 2002 |
Kawasaki |
KVF 400 D Prairie 4x4 |
| 1997 - 2002 |
Kawasaki |
KVF 400 C Prairie 4x4 |
| 1997 - 2002 |
Kawasaki |
KVF 400 D Prairie 2x4 |
| 1999 - 2002 |
Kawasaki |
KVF 300 Prairie |
Video
Features

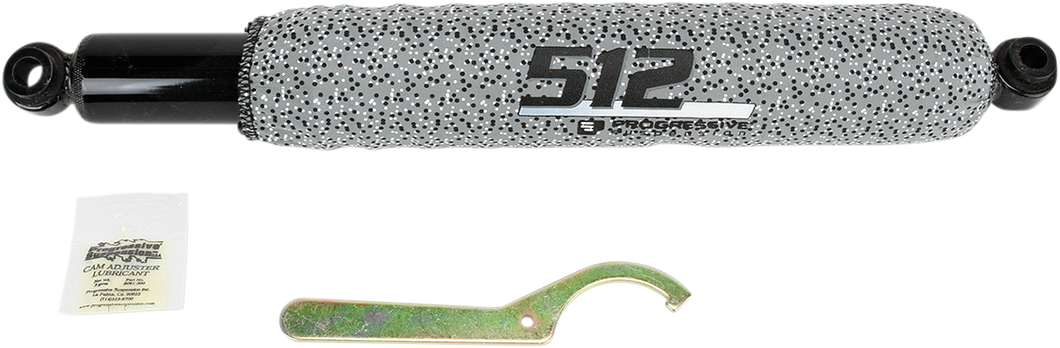

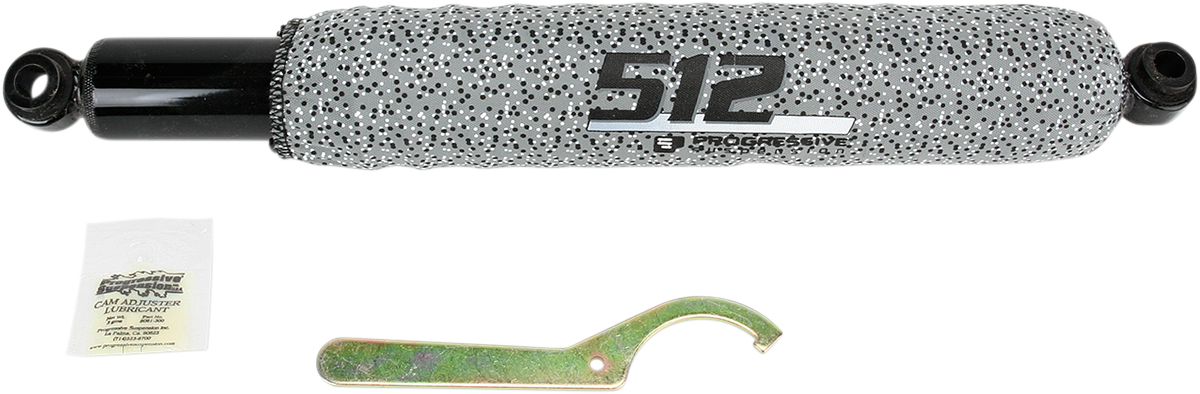

Increase ground clearance and wheel travel 1"-2" on most modelsRugged double-steel-wall constructionProgressive rate springs for comfortable ride and improved load-carrying capacityFive-position spring pre-load adjustment for varying loadsGas charged for fade-free operationDurable fabric Shock Sox are included to protect shocks from rock, sand and mud damageShock Sox are easily removable with hook-and-loop fasteners for cleaning and adjustmentsNot compatible with lift kitsSpecs
Extended Length: 17.50"
Mounting Position: Rear
Progressive Spring Rate: 120.00 lb/in - 170.00 lb/in
Adjustment Type: Adjustable Rebound Damping
Color/Finish: Gray
Model: 512 Series
Product Name: Shock Absorber
Reservoir Location: Internal
Color/Finish: Black
Damping Method: Gas Charged
Riding Style: ATV
Type: Coilover Twin-Tube
Units: Each
Material: Steel
Progressive Spring Rate: 2.15 kg/mm - 3.00 kg/mm
Spring Type: Single Progressive RateApproximate Package Weight & Dimensions
Weight: 7
Height: 4.44
Length: 21.65
Width: 9.05
