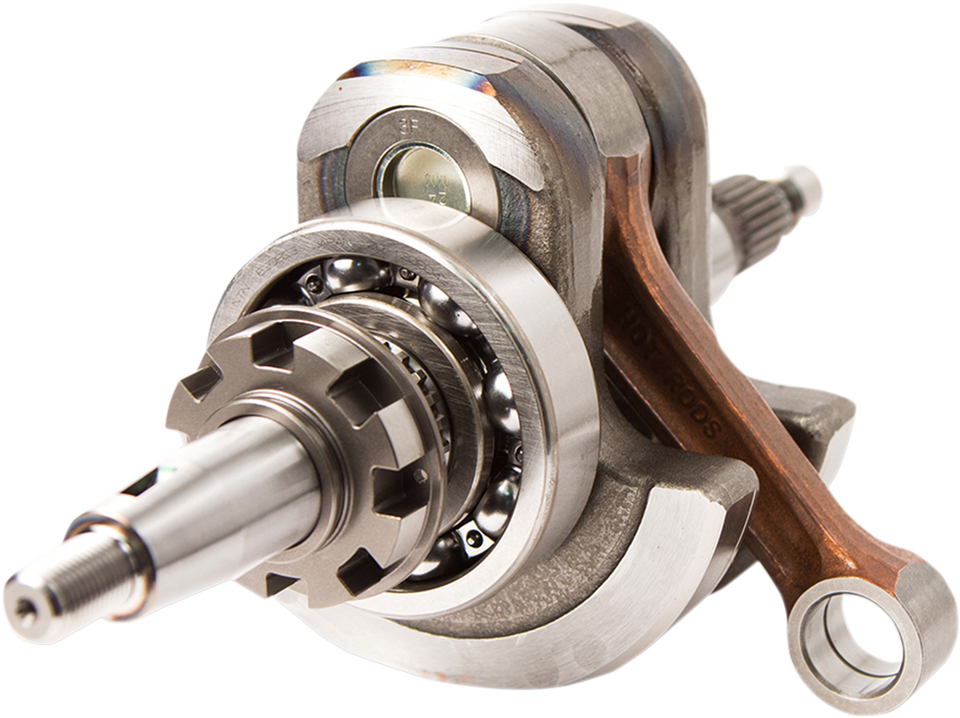

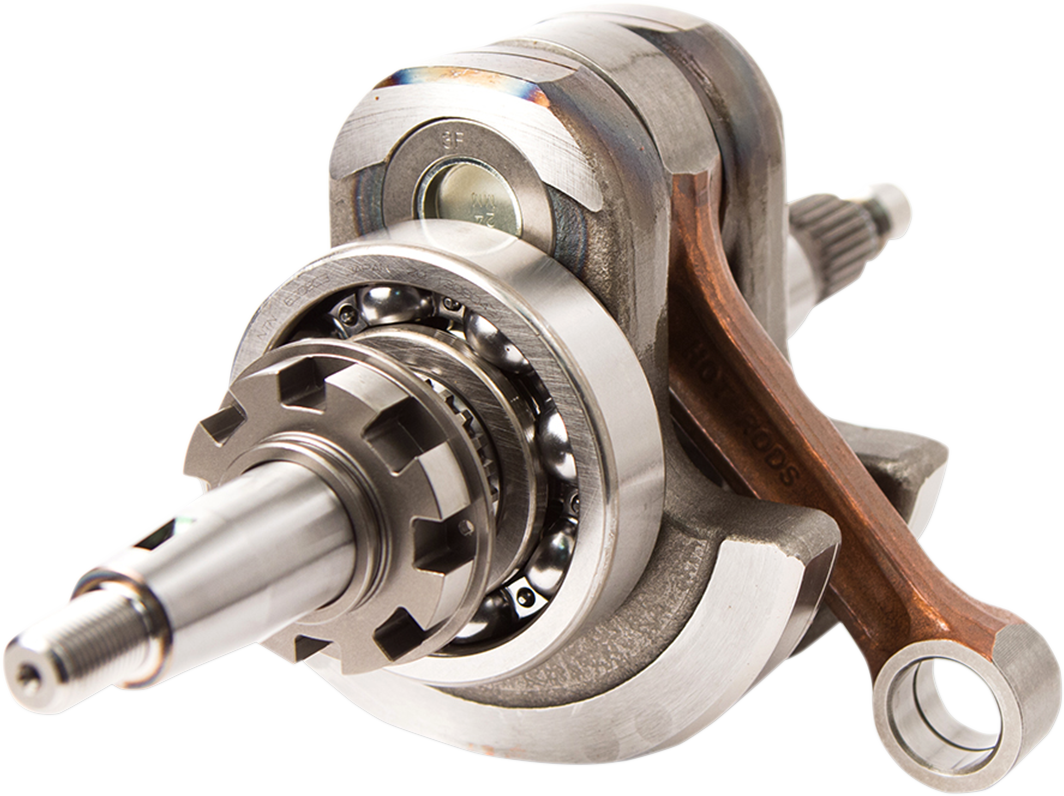

Crankshaft Assembly - Stroker - Yamaha

HOT RODS

Crankshaft Assembly - Stroker - Yamaha

0921-0125

$615.95

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
2014 - 2015 Yamaha YFM 700 Grizzly AT FI 4x4
2009 - 2015 Yamaha YFM 700 FG Grizzly AT FI EPS SE 4x4
2008 - 2013 Yamaha YXR 700FI Rhino 4x4
2007 - 2015 Yamaha YFM 700 FGP Grizzly AT FI EPS 4x4
2020 - 2021 Yamaha YFM 700 Grizzly EPS SE 4x4
2019 - 2021 Yamaha YFM 700 Kodiak EPS SE 4x4
2014 - 2021 Yamaha Viking 700 EPS 4x4
2014 - 2017 Yamaha Viking 700 SE EPS EFI
2019 - 2021 Yamaha YFM 700 Kodiak EPS 4x4
2019 - 2021 Yamaha YFM 700 Kodiak 4x4
2014 - 2020 Yamaha Viking 700 4x4
2019 - 2021 Yamaha Viking 700 VI Ranch EPS EFI 4x4

Features

  • Factory assembled and trued to OEM specifications
  • Drop in replacement crankshaft requires no modification unless noted
  • CNC machined and dynamically balanced to suit the increased stroke
  • Add +2.00 mm to +4.00 mm of stroke depending on application
  • Uses stock piston unless noted
  • Main bearings not included
  • Can be matched with Cylinder Works Big Bore cylinders to get significant displacement and horsepower gains

    • Specs

  • Features: Heavy Duty Crankshaft
  • Riding Style: UTV
  • Color/Finish: Steel
  • Stroke Length: 89.00 mm
  • Type: Stroker
  • Material: 4140 Steel
  • Model: 4-Cycle
  • Stroke Length: 89,00 mm
  • Units: Assembly
  • Displacement: 727 cc
  • Product Name: Crankshaft Assembly
  • Riding Style: ATV

    • Approximate Package Weight & Dimensions

  • Weight: 17.13
  • Height: 6.57
  • Length: 16.45
  • Width: 8.94
