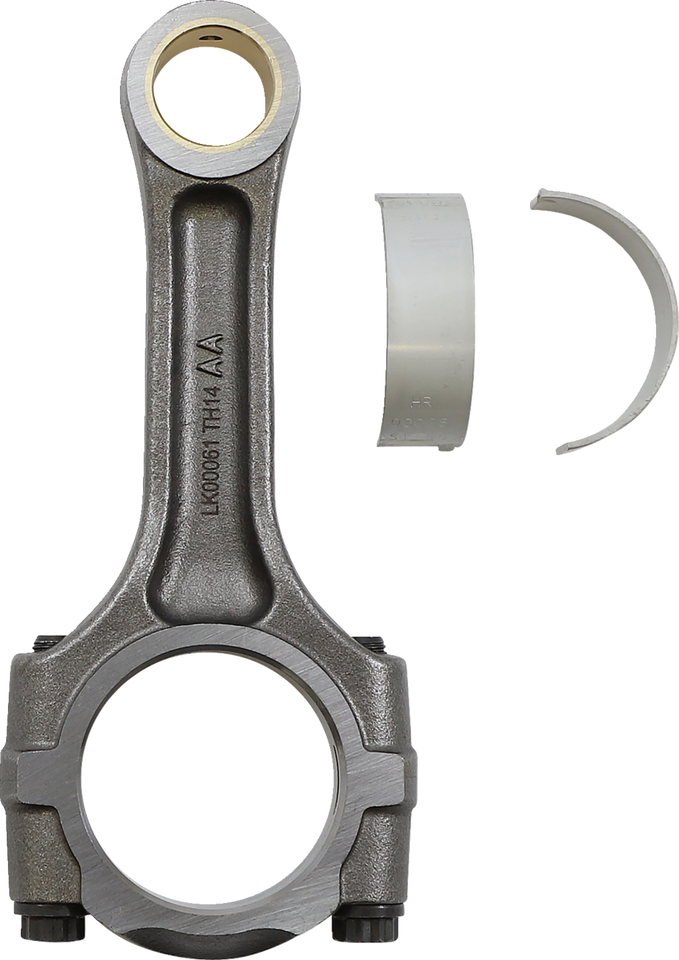

Connecting Rod Kit - Can- Am

HOT RODS

Connecting Rod Kit - Can- Am

0921-0884

$196.95

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
2018 - 2019 Can-Am Maverick Trail 800 4x4
2004 - 2008 Can-Am Outlander 400 H.O. XT 4x4
2012 - 2014 Can-Am Outlander 400 XT 4x4
2006 - 2008 Can-Am Outlander Max 650 H.O. EFI 4x4
2006 - 2008 Can-Am Outlander Max 650 H.O. XT EFI 4x4
2009 - 2016 Can-Am Outlander Max 650 XT 4x4
2007 - 2008 Can-Am Outlander Max 800 H.O. LTD EFI 4x4
2006 - 2008 Can-Am Outlander Max 800 H.O. XT EFI 4x4
2009 - 2012 Can-Am Outlander Max 800R LTD EFI 4x4
2009 - 2014 Can-Am Outlander Max 800R XT 4x4
2013 - 2014 Can-Am Outlander Max 800R DPS 4x4
2007 - 2008 Can-Am Renegade 800 H.O. EFI 4x4
2008 Can-Am Renegade 800 H.O. X EFI 4x4
2009 - 2015 Can-Am Renegade 800R 4x4
2004 - 2008 Can-Am Outlander Max 400 H.O. 4x4
2006 - 2008 Can-Am Outlander Max 400 H.O. XT 4x4
2009 - 2015 Can-Am Outlander Max 650 4x4
2009 - 2019 Can-Am Outlander 650 4x4
2006 - 2008 Can-Am Outlander 650 H.O. EFI 4x4
2006 - 2008 Can-Am Outlander 650 H.O. XT 4x4
2017 - 2018 Can-Am Outlander 650 DPS 6x6
2013 - 2014 Can-Am Outlander 650 DPS 4x4
2009 - 2015 Can-Am Outlander 800R 4x4
2009 - 2014 Can-Am Outlander 800R XT 4x4
2013 - 2014 Can-Am Outlander 800R XT-P 4x4
2016 - 2019 Can-Am Renegade 850 4x4
2019 Can-Am Maverick Trail 800 DPS 4x4
2003 - 2008 Can-Am Outlander 400 H.O. 4x4
2018 - 2019 Can-Am Outlander 450 4x4
2018 - 2019 Can-Am Outlander Max 650 North Edition 4x4
2013 - 2016 Can-Am Outlander Max 650 DPS 4x4
2012 - 2014 Can-Am Outlander Max 800R XT-P 4x4
2015 Can-Am Outlander L 450 4x4
2012 - 2014 Can-Am Renegade 800R X XC 4x4
2015 - 2016 Can-Am Outlander Max L 450 4x4
2017 - 2019 Can-Am Outlander Max 450 4x4
2019 Can-Am Outlander Max 450 DPS 6x6
2009 - 2014 Can-Am Outlander 650 XT 4x4
2015 - 2016 Can-Am Outlander 650 XT 6x6
2013 - 2015 Can-Am Outlander 650 X MR 4x4
2012 - 2015 Can-Am Outlander 800R X MR 4x4
2011 Can-Am Outlander 800R X XC EFI 4x4
2018 - 2019 Can-Am Defender Max 800 HD8 4x4
2019 Can-Am Outlander Max 650 DPS 6x6
2009 - 2014 Can-Am Outlander Max 400 4x4
2013 - 2014 Can-Am Outlander 800R DPS 4x4
2009 Can-Am Renegade 800R X EFI 4x4
2012 - 2019 Can-Am Commander 800R 4x4
2017 Can-Am Defender 1000 HD10 4x4
2013 - 2015 Can-Am Commander 800R DPS 4x4
2013 - 2015 Can-Am Commander 800R XT 4x4
2004 - 2005 Can-Am Outlander 330 H.O. 4x2
2004 - 2005 Can-Am Outlander 330 H.O. 4x4
2009 - 2014 Can-Am Outlander 400 4x4
2006 - 2008 Can-Am Outlander 800 H.O. EFI 4x4
2006 - 2008 Can-Am Outlander Max 800 H.O. EFI 4x4
2012 - 2014 Can-Am Outlander Max 400 XT 4x4
2006 - 2008 Can-Am Outlander 800 H.O. XT EFI 4x4
2004 Can-Am Outlander 400 H.O. 4x2

Features

  • Heavy-duty OE replacement connecting rod
  • Certified 8620 AISI steel provides superior strength
  • Uniquely designed big end uses strategically located side scalloping vent slots to minimize high-RPM bearing race distortion
  • Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc
  • Hot Rods uses the latest in caged needle roller bearing designs for high RPM longevity
  • Thrust washers are manufactured from bronze phosphor and are silver coated

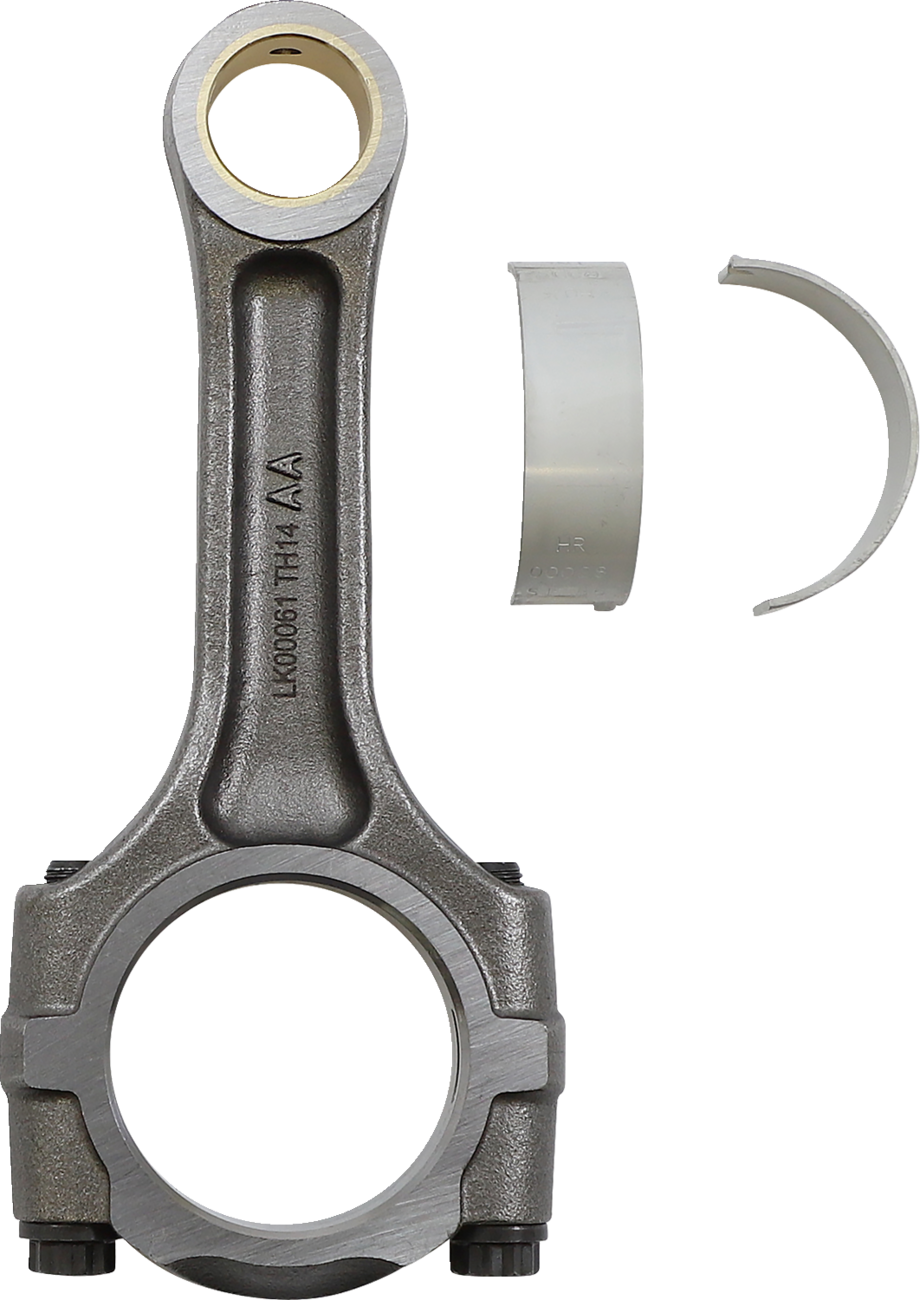

  • Rod assembly sold complete with rod, crankpin, crankpin bearing, top-end bearing and thrust washers
  • Compatible with Hot Rods and OE crankshafts
  • Made in U.S.A.

    • Specs

  • Product Name: Connecting Rod Kit
  • Riding Style: ATV
  • Units: Kit
  • Engine Type: 4-Cycle
  • Material: 8620 Steel
  • Style: Heavy Duty
  • Riding Style: UTV

    • Approximate Package Weight & Dimensions

  • Weight: 1.4
  • Height: 1.94
  • Length: 7.47
  • Width: 3.27
