Connecting Rod Kit - Yamaha

HOT RODS

Connecting Rod Kit - Yamaha

0923-0033

$177.95

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
2000 - 2002 Yamaha GP 1200 A WaveRunner R
2001 - 2005 Yamaha XA 1200 A WaveRunner XLT
1998 Yamaha GP 800 WaveRunner Limited Edition
2001 - 2005 Yamaha GP 800 A WaveRunner R
2000 - 2001 Yamaha XRT 1200 XR1800
2000 Yamaha XA 1200 WaveRunner XL
1999 - 2000 Yamaha GP 800 WaveRunner
2003 - 2006 Yamaha GP 1300 WaveRunner R

Features

  • Heavy-duty OE replacement connecting rods
  • Certified 8620 AISI steel provides superior strength
  • Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
  • Feature the latest in caged needle roller bearing designs for high rpm longevity
  • Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
  • Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
  • Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
  • Double honing produces an ultra-round bearing surface for reliability at high rpm

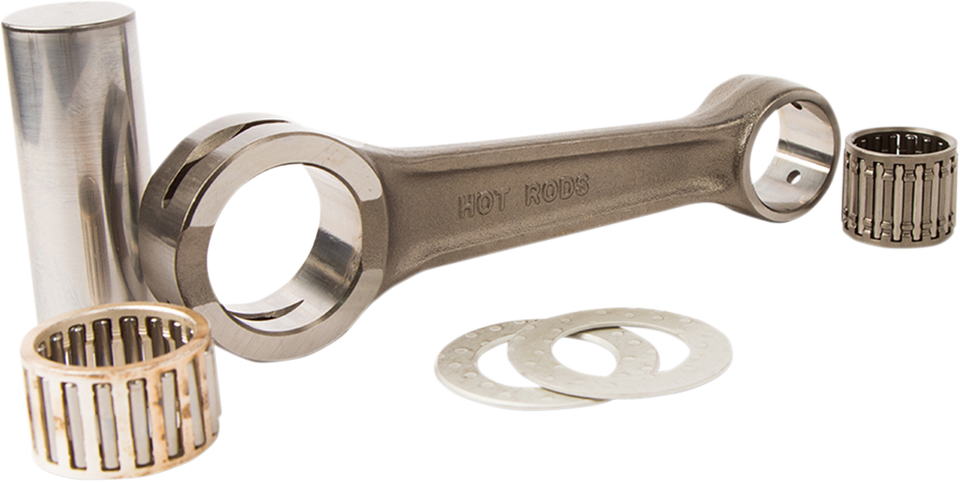

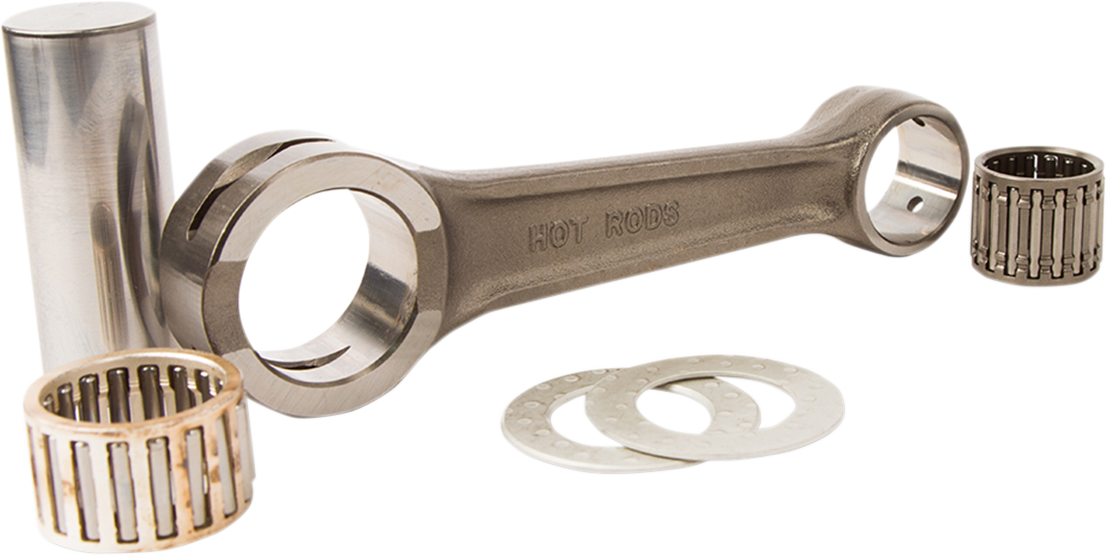

  • Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
  • Compatible with Hot Rods and OE crankshafts
  • Made in the USA

    • Specs

  • Product Name: Connecting Rod Kit
  • Features: Includes Thrust Washers
  • Riding Style: Watercraft
  • Material: 8620 Steel
  • Engine Type: 2-Cycle
  • Units: Kit

    • Approximate Package Weight & Dimensions

  • Weight: 1.75
  • Height: 1.66
  • Length: 7.6
  • Width: 3.4
