CAMSO

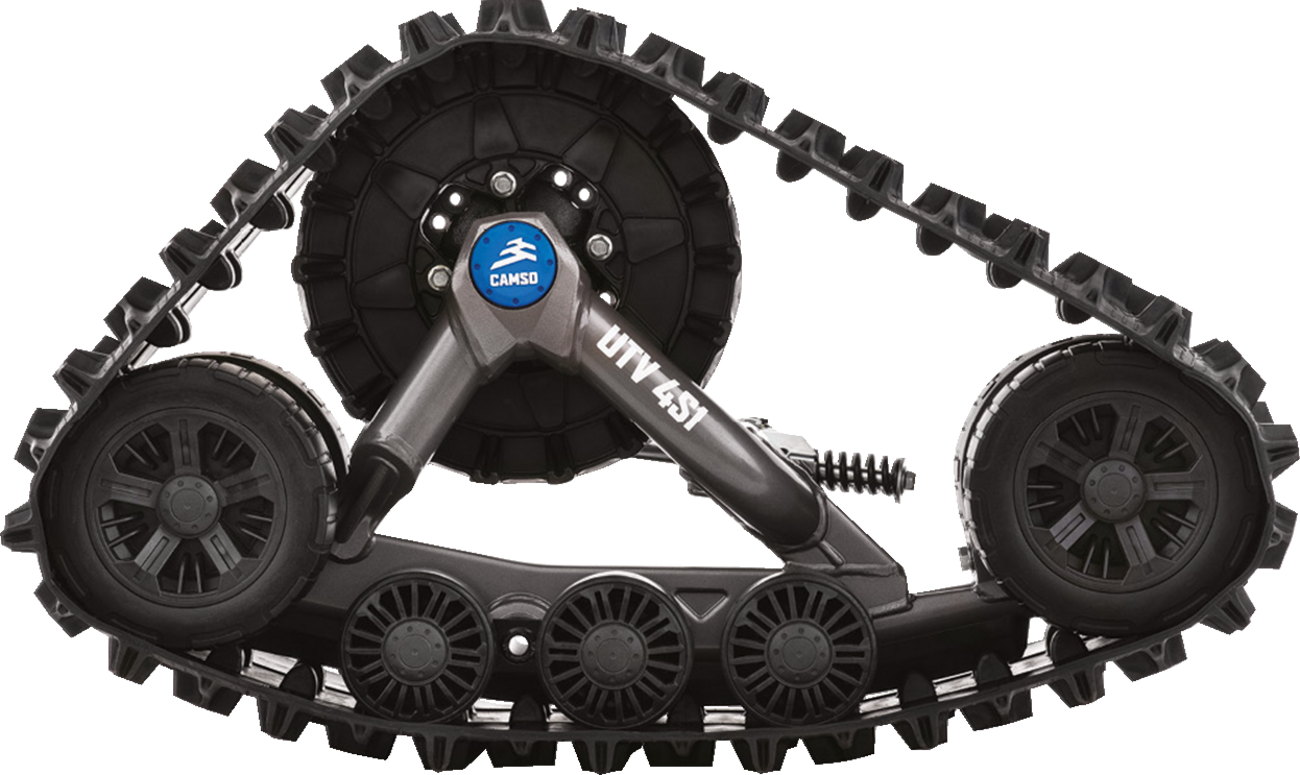

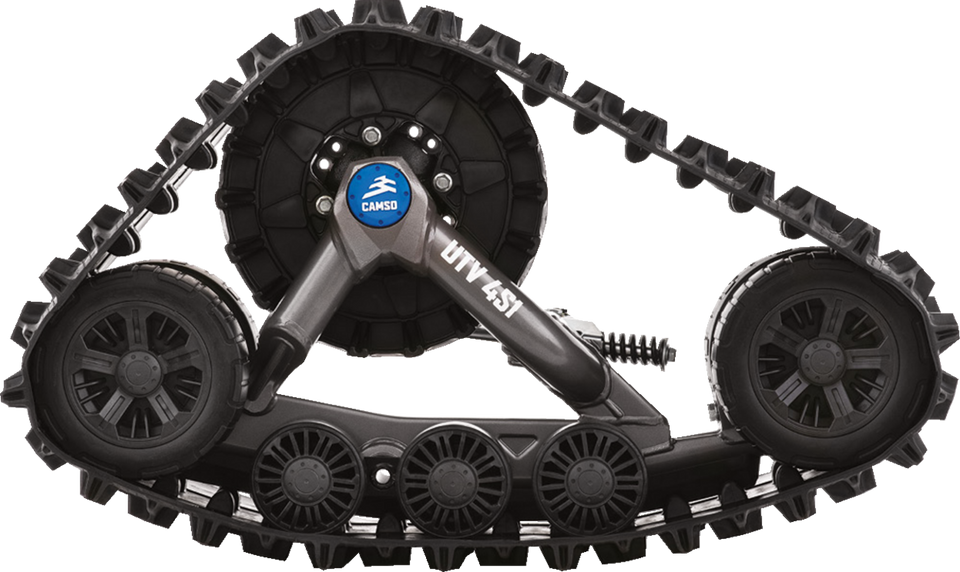

UTV 4S1 Track System

4510-0912

Regular price $6,599.00

Quantity

-+

Ask about this product

DESCRIPTION

Fitments

Years	Make	Model
2009 - 2014	Polaris	Sportsman 800 Big Boss EFI 6x6
2009 - 2014	Polaris	Sportsman 800 EFI 4x4

Video

Features

Easier switch between tracks and tires allows side-by-side enthusiasts to go out and free themselves from the road as quickly as possible

Sturdier and more adjustable tensioner prevents critical part misalignment

Triple bearing design with oil bath lubrication improves durability and stainless sleeves for greater reliability

New anti-rotation bracket bolted onto the frame with factory pre-loaded spring and dual rubber damper (rear only) makes adjusting the rod and track to the required angle easier

Enhanced wheel seal design improves sealing and guiding, reduces wear and eliminates water absorption due to temperature variations

Specs

Front Track Width: 12-1/2"

Ground Clearance: +5"

Units: Each

Ground Surface: 1,62 m² (2520 square inch)

Lug Height: 1-1/4"

Product Name: Track System

Type: Conversion

Rear Track Length: 116-11/16"

Tooth Count: 15-18

Front Height: 25"

Front Track Length: 98-1/2"

Model: UTV 4S1

Rear Height: 24-11/16"

Rear Track Width: 14"

Riding Style: Snow

Riding Style: UTV
