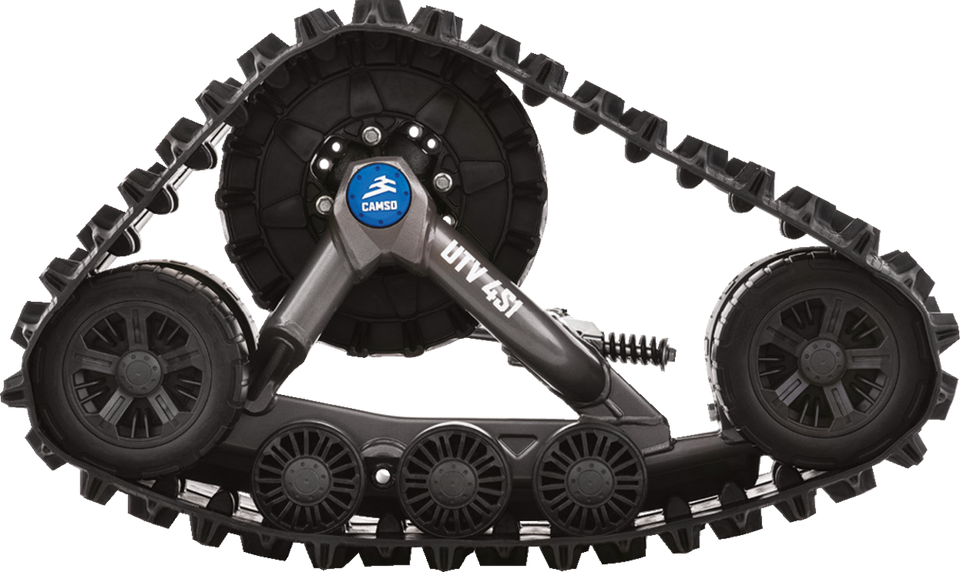

UTV 4S1 Track System
UTV 4S1 Track System
UTV 4S1 Track System

CAMSO

UTV 4S1 Track System

4510-0952

$6,599.00

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
2009 - 2015 Arctic Cat Prowler 550 EFI 4x4
2009 - 2015 Arctic Cat H1 Prowler 550 XT 4x4
2009 - 2015 Arctic Cat H1 550 Prowler EFI 4x4
2009 - 2015 Arctic Cat Prowler 550 XT 4x4
2010 - 2011 Arctic Cat H1 550 Prowler XT EFI 4x4

Video


Features

  • Easier switch between tracks and tires allows side-by-side enthusiasts to go out and free themselves from the road as quickly as possible
  • Sturdier and more adjustable tensioner prevents critical part misalignment
  • Triple bearing design with oil bath lubrication improves durability and stainless sleeves for greater reliability
  • New anti-rotation bracket bolted onto the frame with factory pre-loaded spring and dual rubber damper (rear only) makes adjusting the rod and track to the required angle easier
  • Enhanced wheel seal design improves sealing and guiding, reduces wear and eliminates water absorption due to temperature variations

    • Specs

  • Front Track Width: 12-1/2"
  • Product Name: Track System
  • Rear Track Length: 116-11/16"
  • Front Track Length: 98-1/2"
  • Units: Each
  • Front Height: 25"
  • Ground Clearance: +5"
  • Model: UTV 4S1
  • Rear Track Width: 14"
  • Riding Style: Snow
  • Riding Style: UTV
  • Ground Surface: 1,62 m² (2520 square inch)
  • Lug Height: 1-1/4"
  • Rear Height: 24-11/16"
  • Tooth Count: 15-18
  • Type: Conversion

    • Approximate Package Weight & Dimensions

  • Weight: 0.01
  • Height: 0.1
  • Length: 0.1
  • Width: 0.1
    • Back to CAMSO
