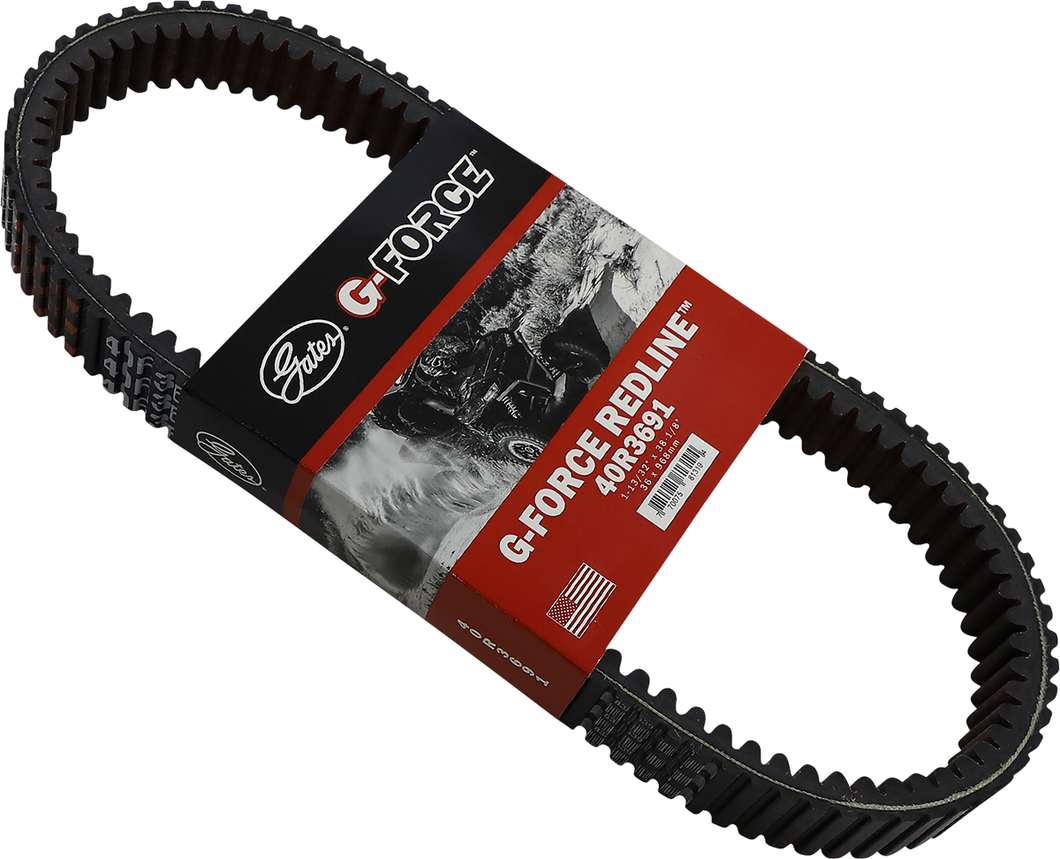

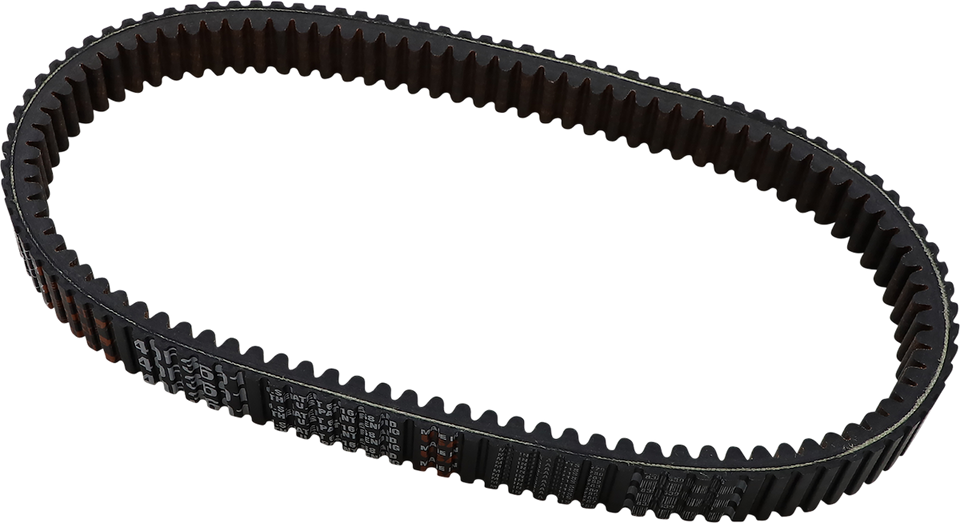

Drive Belt
Drive Belt

GATES

Drive Belt

1142-0998

$221.71

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
2021 - 2023 CF Moto C-Force 800 XC 4x4
2021 - 2023 CF Moto C-Force 1000 Overland 4x4
2016 - 2023 CF Moto Z-Force 800 Trail 4x4
2022 - 2023 CF Moto Z-Force 950 H.O. EX 4x4
2014 - 2022 CF Moto Z-Force 800 EX 4x4
2013 - 2022 CF Moto U-Force 800 4x4
2020 - 2023 CF Moto U-Force 1000 4x4
2013 - 2020 CF Moto C-Force 800
2012 - 2013 CF Moto X8 EFI 4x4
2015 - 2016 CF Moto Z-Force 800
2020 CF Moto Z-Force 1000
2011 - 2014 CF Moto Terralander 800

Features

  • Designed to handle the rapid acceleration and high variable torque loads of next-generation high-performance platforms
  • Built with Gates® patented fiber-reinforced EE (ethyl elastomer) compound for maximum transverse stiffness and heat resistance
  • 75% better dynamic axial stiffness and 50% lower speed losses from temperatures up to 338°F (EU: 170°C)
  • High-tensile aramid cord layer with specially-formulated adhesion gum maximizes acceleration, shock load resistance, and service life
  • Fabric cog jacket on rounded bottom cogs enables smooth shifting and higher abrasion resistance
  • Made without chlorinated compounds for reduced environmental impact

    • Specs

  • Length: 937 mm (36-57/64")
  • Length: 937 mm
  • Model: G-Force Redline™
  • Product Name: Primary Belt
  • Thickness: 19/32"
  • Type: Primary Belt Drive
  • Color/Finish: Black
  • Material: Carbon
  • Units: Each
  • Riding Style: ATV
  • Width: 1-21/64"
  • Length: 36-57/64"
  • Riding Style: UTV

    • Approximate Package Weight & Dimensions

  • Weight: 1.15
  • Height: 1.4
  • Length: 16
  • Width: 6
