WOSSNER

Piston Kit - 101.94 mm - Yamaha

0910-4967

Regular price $204.00

Quantity

-+

DESCRIPTION

Years	Make	Model
2013 - 2014	Yamaha	Raptor 700 4x2
2006 - 2014	Yamaha	Raptor 700R 4x2
2006 - 2014	Yamaha	Raptor 700R SE 4x2
2008 - 2013	Yamaha	YXR 700FI Rhino 4x4
2007	Yamaha	Raptor 700R GYTR Edition 4x2
2007 - 2009	Yamaha	YFM 700 Grizzly AT FI Ducks Unltd Ed. 4x4
2007 - 2013	Yamaha	YFM 700 FGP Grizzly AT FI EPS 4x4
2007	Yamaha	YFM 700 Grizzly AT FI Outdoorsman Ed 4x4
2009 - 2013	Yamaha	YFM 700 FG Grizzly AT FI EPS SE 4x4
2007 - 2013	Yamaha	YFM 700 Grizzly AT FI 4x4
2007	Yamaha	YFM 700 Grizzly AT FI Exploring Ed 4x4
2007	Yamaha	YFM 700 Grizzly AT FI SE 4x4

Enhanced piston pin oiling slots, radial boss machining, and annular grooves for improved wrist pin lubrication

Lightweight piston with a tight piston wall clearance for a quieter running engine

Skirt coated for reduced friction and improved break in performance

Ring land treatment for improved ring seal and oil control

Double bridged forging design where noted

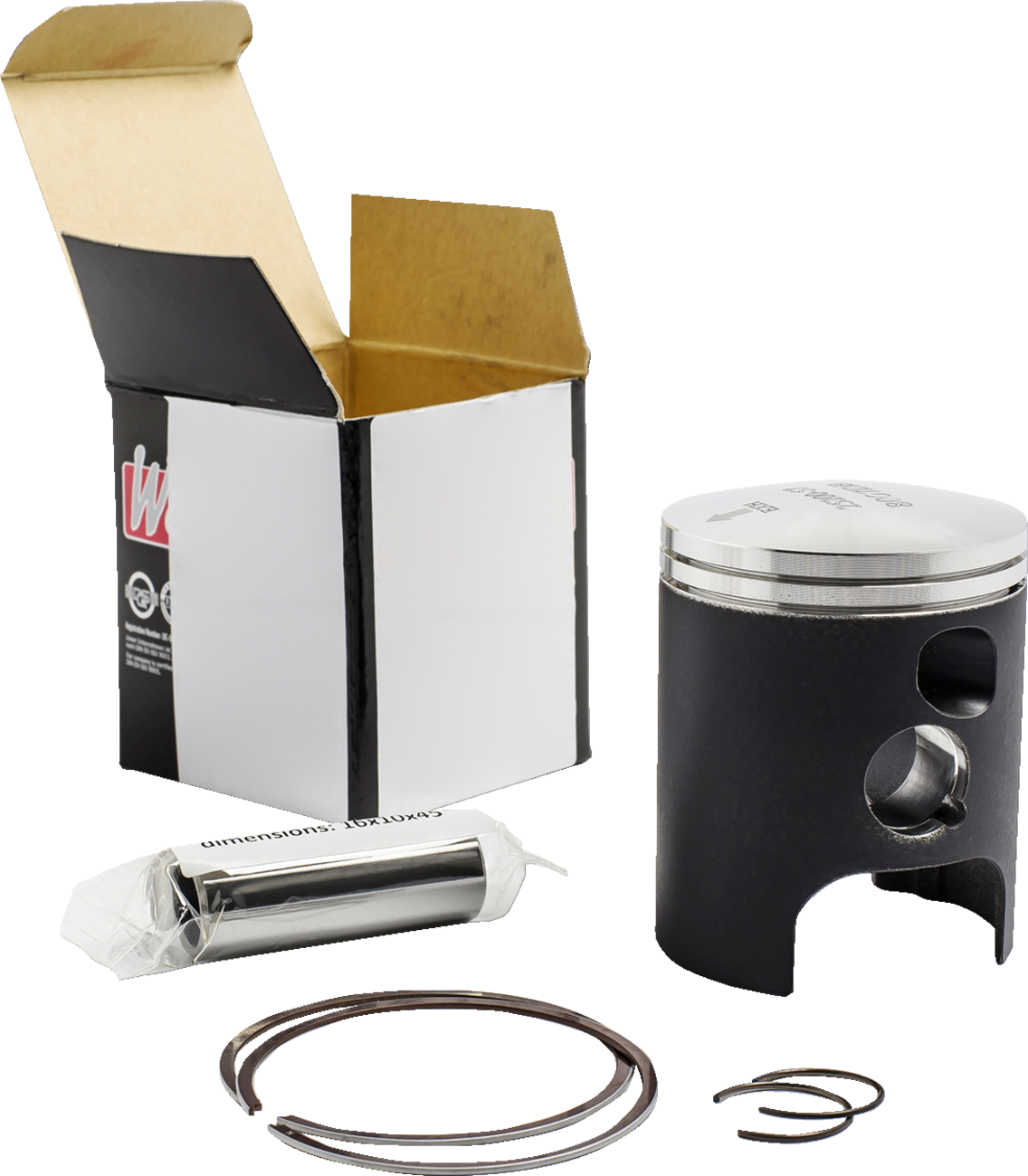

Kit includes piston, rings, wrist pin and pin locks

Bore Size: 102.00 mm

Product Name: Piston Kit

Riding Style: UTV

Compression Ratio: 11.0:1

Engine Type: 4-Stroke

Model: Pro Series

Riding Style: ATV

Style: Standard Size A

Units: Kit

Bore - Oversize: Standard

Piston Material: Aluminum Alloy

Piston Material: Forged

Piston Size: 101.94 mm

Weight: 1.3

Height: 2.87

Length: 4.13

Width: 4.09
