Cam Kit - Race Series® - 592 Series - Oil Cooled - M8

FEULING OIL PUMP CORP.

Cam Kit - Race Series® - 592 Series - Oil Cooled - M8

0925-1268

$1,995.95

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
2017 - 2019 Harley-Davidson Electra Glide Ultra Classic EFI FLHTCUI
2019 - 2020 Harley-Davidson Electra Glide Standard EFI FLHTI
2017 - 2020 Harley-Davidson CVO Street Glide FLHXSE
2017 - 2020 Harley-Davidson Road King EFI FLHR
2017 - 2020 Harley-Davidson Street Glide EFI FLHX
2018 - 2020 Harley-Davidson CVO Road Glide Custom FLTRXSE
2018 - 2019 Harley-Davidson Softail Breakout FXBR
2018 - 2020 Harley-Davidson Softail Heritage Classic FLHC
2018 - 2020 Harley-Davidson Softail Heritage Classic 114 FLHCS
2018 - 2020 Harley-Davidson Softail Low Rider FXLR
2018 - 2020 Harley-Davidson Softail Slim FLSL
2017 - 2020 Harley-Davidson Street Glide Special FLHXS
2017 - 2020 Harley-Davidson Road Glide Special FLTRXS
2017 - 2020 Harley-Davidson Road Glide Custom FLTRX
2017 - 2020 Harley-Davidson Road King Special FLHRXS
2018 - 2020 Harley-Davidson Softail Breakout 114 FXBRS
2018 - 2019 Harley-Davidson Softail Fat Bob FXFB
2018 - 2020 Harley-Davidson Softail Fat Bob 114 FXFBS
2018 - 2020 Harley-Davidson Softail Fat Boy 114 FLFBS
2018 - 2020 Harley-Davidson Softail Street Bob FXBB
2018 - 2020 Harley-Davidson Softail Deluxe FLDE
2018 - 2019 Harley-Davidson Softail Fat Boy FLFB
2018 - 2020 Harley-Davidson Softail Sport Glide FLSB
2019 - 2020 Harley-Davidson FXDR 114
2017 - 2020 Harley-Davidson Electra Glide Police FLHTPI
2017 - 2020 Harley-Davidson Electra Glide Ultra Limited FLHTK
2017 - 2019 Harley-Davidson Road Glide Ultra FLTRU
2017 - 2020 Harley-Davidson CVO Electra Glide Ultra Limited FLHTKSE
2020 Harley-Davidson Road Glide Limited FLTRK
2017 - 2019 Harley-Davidson Electra Glide Ultra Limited Low FLHTKL
2020 Harley-Davidson Softail Standard FXST
2020 Harley-Davidson Softail Low Rider S FXLRS
2017 - 2020 Harley-Davidson Tri Glide Ultra Classic FLHTCUTG
2017 - 2020 Harley-Davidson Freewheeler FLRT
2020 Harley-Davidson CVO Tri Glide FLHTCUTGSE

Video


Features

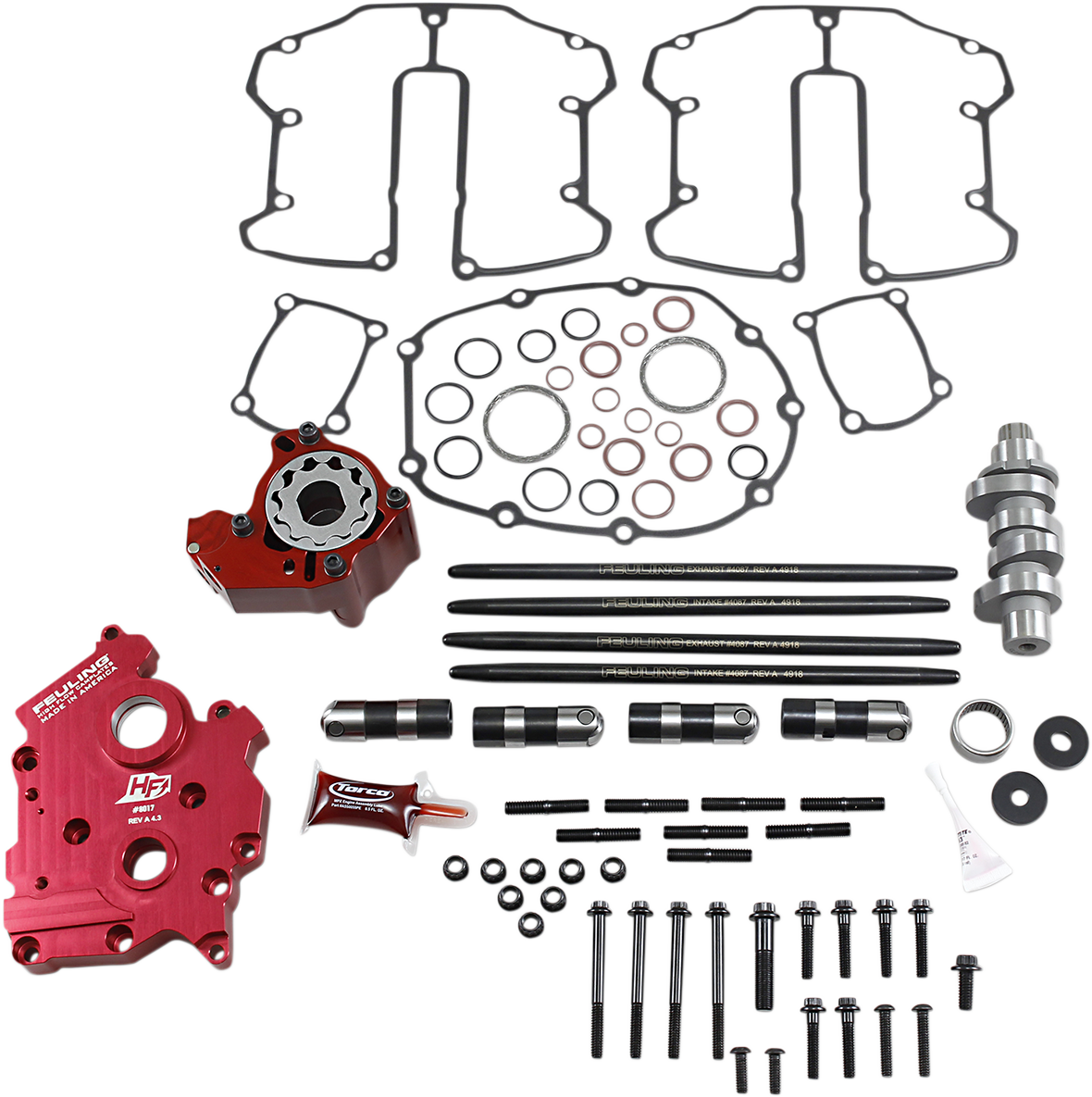

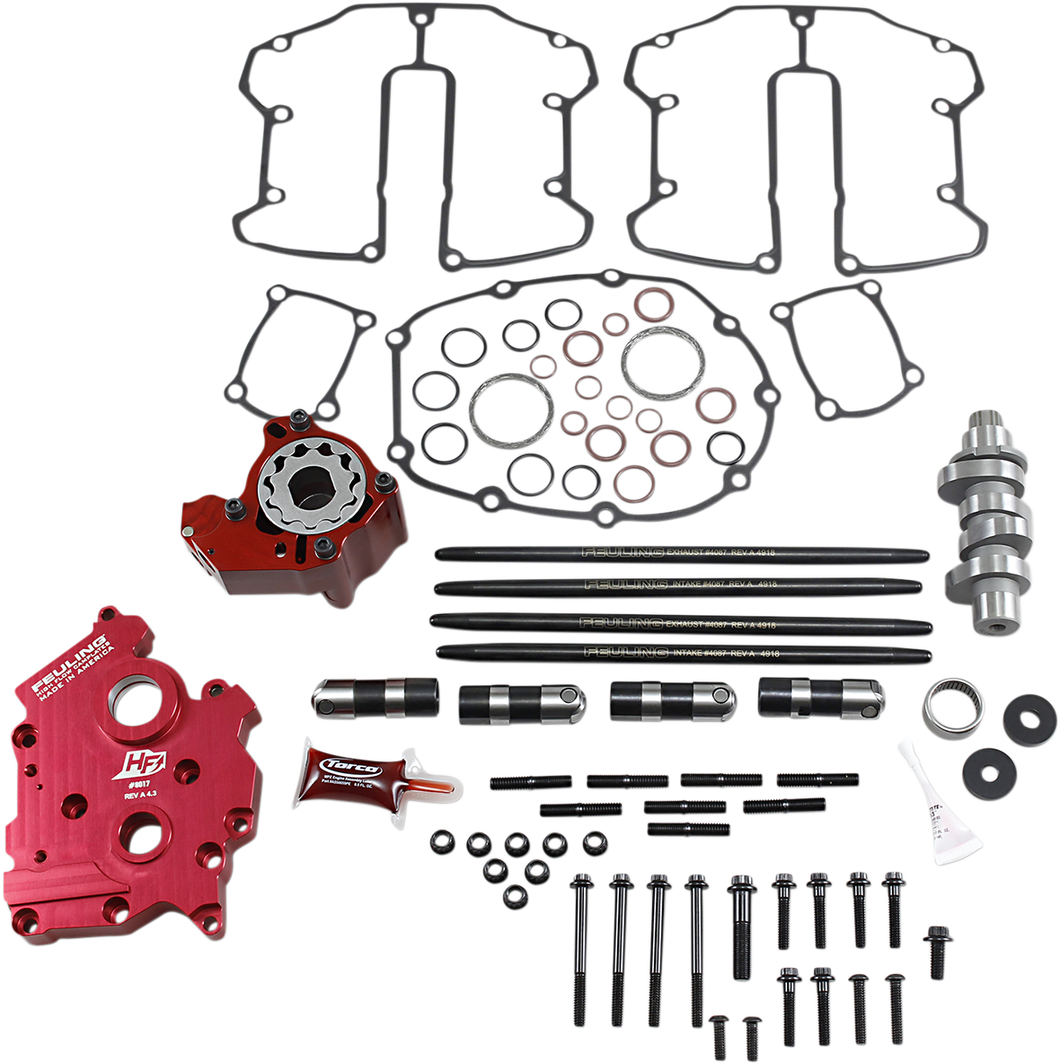

  • Kit includes Race Series oiling system: billet 7075 oil pump, Race Series lifters and High Flow billet aluminum camplate
  • Oil pump is 50% harder and stronger than the factory pump, holds tighter tolerances under temperature
  • Race Series hydraulic lifters have a full .200” of total travel designed with slower bleed-down rate to handle heavy valve spring pressures, increase engine rpm before valve float and feature increased roller clearance for steep-ramped camshafts and clearance for the M-Eight front exhaust camshaft lobe flange
  • Quieter and smoother engine operation
  • Increase oil pressure, scavenge volume and engine oil flow
  • 15°-25° cooler engine temperatures
  • 15°-30° degree cooler oil temperatures
  • 10-30 more PSI of oil pressure
  • Eliminate wet sumping, blow by and oily air cleaners
  • Heavy duty .165” wall one-piece pushrods reduce valvetrain harmonics and increase valve lift
  • High-flow air cleaner and triple-stepped exhaust pipe highly recommended
  • High-lift high-load valve springs are required
  • RPM range 2850-6250

    • Specs

  • Application: Exhaust
  • Features: Oil Cooled
  • Type: Chain
  • Application: Intake
  • Exhaust Close: 16°
  • Exhaust Duration: 264°
  • Exhaust Lift: 0.592"
  • Intake Duration: 234°
  • Model: Race Series®
  • Product Name: Camchest Kit
  • Exhaust Open: 68°
  • Grind: 592 Series
  • Intake Close: 34°
  • Riding Style: Street
  • Exhaust Lobe Centerline: 116°
  • Intake Lift: 0.578"
  • Intake Lobe Centerline: 97°
  • Intake Open: 20°
  • Units: Kit

    • Approximate Package Weight & Dimensions

  • Weight: 11.7
  • Height: 5.8
  • Length: 16.2
  • Width: 10.7
