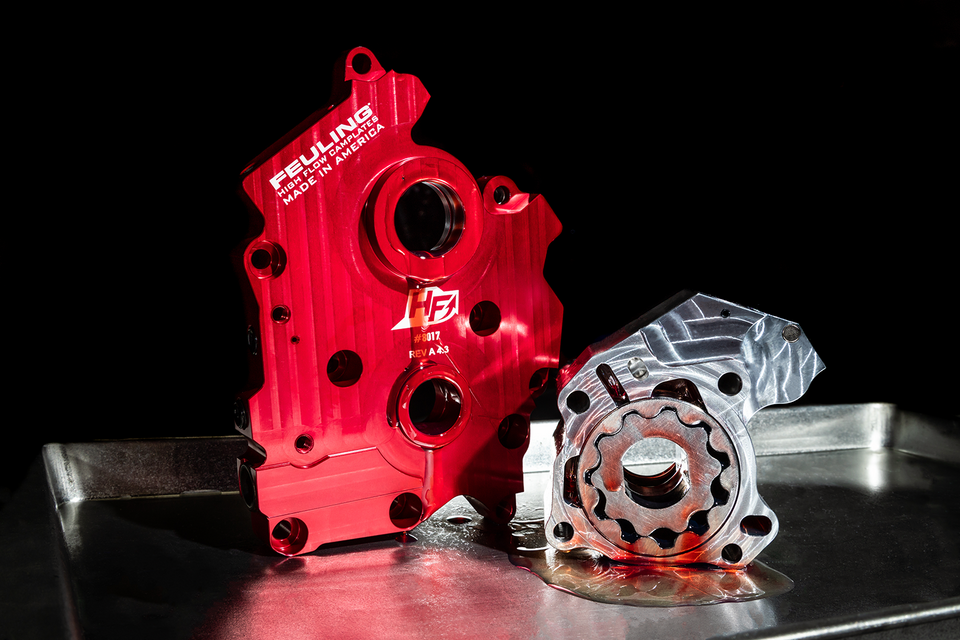

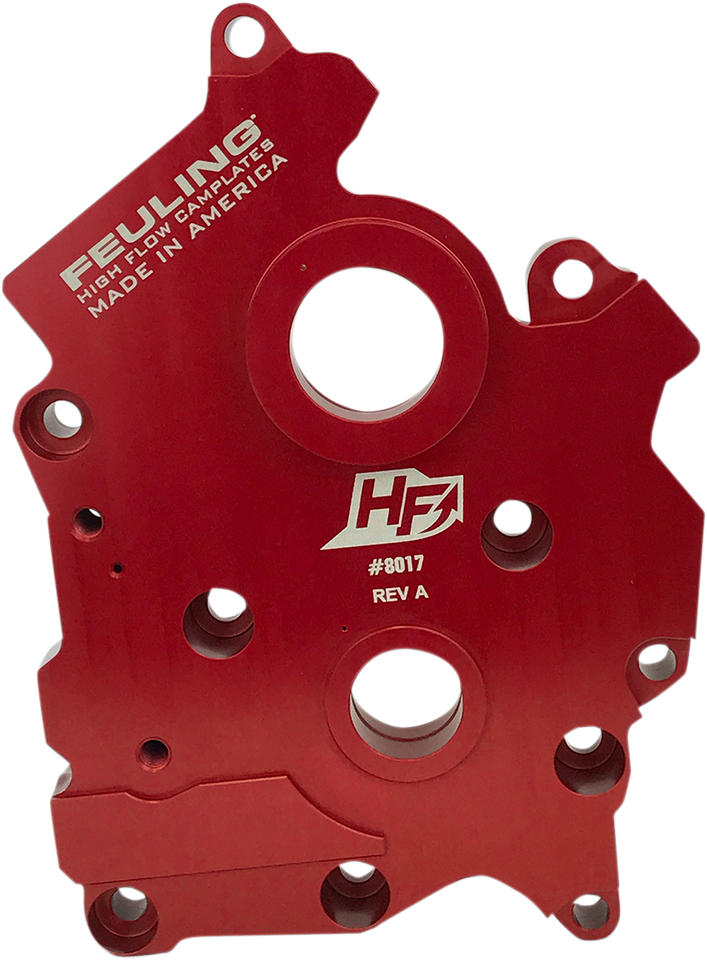

HiFlow Camplate - M8
HiFlow Camplate - M8
HiFlow Camplate - M8

FEULING OIL PUMP CORP.

HiFlow Camplate - M8

0932-0192

$379.95

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
2017 - 2021 Harley-Davidson Street Glide Special FLHXS
2017 - 2021 Harley-Davidson CVO Street Glide FLHXSE
2018 - 2020 Harley-Davidson Softail Low Rider FXLR
2018 - 2021 Harley-Davidson Softail Slim FLSL
2019 - 2020 Harley-Davidson FXDR 114
2019 - 2021 Harley-Davidson Electra Glide Standard EFI FLHTI
2017 - 2021 Harley-Davidson Electra Glide Ultra Limited FLHTK
2017 - 2021 Harley-Davidson CVO Electra Glide Ultra Limited FLHTKSE
2020 Harley-Davidson Road Glide Limited FLTRK
2018 - 2020 Harley-Davidson Softail Deluxe FLDE
2018 - 2021 Harley-Davidson Softail Fat Bob 114 FXFBS
2018 - 2021 Harley-Davidson Softail Fat Boy 114 FLFBS
2018 - 2021 Harley-Davidson Softail Heritage Classic 114 FLHCS
2017 - 2021 Harley-Davidson Street Glide EFI FLHX
2017 - 2021 Harley-Davidson Road King Special FLHRXS
2020 Harley-Davidson Softail Standard FXST
2018 - 2021 Harley-Davidson Softail Heritage Classic FLHC
2018 - 2021 Harley-Davidson Softail Sport Glide FLSB
2017 - 2021 Harley-Davidson Road King EFI FLHR
2017 - 2021 Harley-Davidson Road Glide Special FLTRXS
2017 - 2021 Harley-Davidson Road Glide Custom FLTRX
2020 Harley-Davidson Softail Low Rider S FXLRS
2017 - 2020 Harley-Davidson Tri Glide Ultra Classic FLHTCUTG
2017 - 2020 Harley-Davidson Freewheeler FLRT
2020 Harley-Davidson CVO Tri Glide FLHTCUTGSE
2017 - 2021 Harley-Davidson Electra Glide Police FLHTPI
2017 - 2019 Harley-Davidson Electra Glide Ultra Classic EFI FLHTCUI
2017 - 2019 Harley-Davidson Road Glide Ultra FLTRU
2018 - 2019 Harley-Davidson Softail Breakout FXBR
2018 - 2020 Harley-Davidson Softail Breakout 114 FXBRS
2018 - 2019 Harley-Davidson Softail Fat Boy FLFB
2017 - 2019 Harley-Davidson Electra Glide Ultra Limited Low FLHTKL
2018 - 2019 Harley-Davidson Softail Fat Bob FXFB
2018 - 2021 Harley-Davidson Softail Street Bob FXBB
2018 - 2021 Harley-Davidson CVO Road Glide Custom FLTRXSE

Video


Features

  • Increase engine oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including the scavenging return holes from the pump to the camplate and into the engine case
  • Camplate matches the oil port holes on the camplate to the oil holes in the engine case to increase oil flow throughout the engine
  • Lowers engine temperatures by 15-25 degrees and oil running temperature by 15-25 degrees
  • 7075 billet aluminum construction, which is 50% harder and stronger than the factory cast and Feuling® OE+ camplates
  • Increases the strength and hardness of the camplate, holding tighter tolerances under temperature and eliminating flexing and the need for bronze bushings
  • When matched with the Feuling® Race Series Oil Pump, rear wheel power gains of 2 horsepower and 2 ft. lb. of torque can be achieved
  • Made in the U.S.A.

    • Specs

  • Riding Style: Street
  • Units: Each
  • Color/Finish: Red
  • Product Name: Cam Plate
  • Type: Oil Pump
  • Base Color: Red

    • Approximate Package Weight & Dimensions

  • Weight: 2
  • Height: 2.08
  • Length: 8.62
  • Width: 8.49
