Flywheel - 84" Stroker

S&S CYCLE

Flywheel - 84" Stroker

0922-0161

$1,580.95

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
1983 - 1984 Harley-Davidson Low Rider FXSB
1979 - 1982 Harley-Davidson Low Rider FXS
1980 - 1982 Harley-Davidson Sturgis FXB
1980 - 1984 Harley-Davidson Wide Glide FXWG
1978 - 1984 Harley-Davidson Electra Glide FLH
1977 - 1979 Harley-Davidson 1200 Low Rider FXS
1974 - 1980 Harley-Davidson 1200 Super Glide FXE
1979 - 1981 Harley-Davidson Fat Bob FXEF
1979 - 1984 Harley-Davidson Super Glide 80 FXE
1971 - 1978 Harley-Davidson 1200 Super Glide FX
1981 Harley-Davidson Electra Glide Heritage FLH
1980 - 1983 Harley-Davidson Tour Glide Classic FLTC
1970 - 1980 Harley-Davidson 1200 Electra Glide FLH
1980 - 1983 Harley-Davidson Tour Glide FLT
1979 - 1980 Harley-Davidson 1200 Fat Bob FXEF
1980 - 1982 Harley-Davidson Electra Glide Sport FLHS
1983 Harley-Davidson Sport Glide FXRT
1982 - 1983 Harley-Davidson Super Glide II FXR
1970 - 1980 Harley-Davidson Electra Glide FL
1982 - 1983 Harley-Davidson Super Glide II FXRS
1983 Harley-Davidson Electra Glide Classic FLHTC
1984 Harley-Davidson Electra Glide Special FLHX
1983 Harley-Davidson Disc Glide FXDG
1981 - 1982 Harley-Davidson Electra Glide Classic FLH
1983 Harley-Davidson Electra Glide Standard FLHT

Features

  • Upgrades 74" and 80" Shovelhead engines to 84" displacement at approximately 8.4:1 or 7.3:1 compression (depending on pistons used)

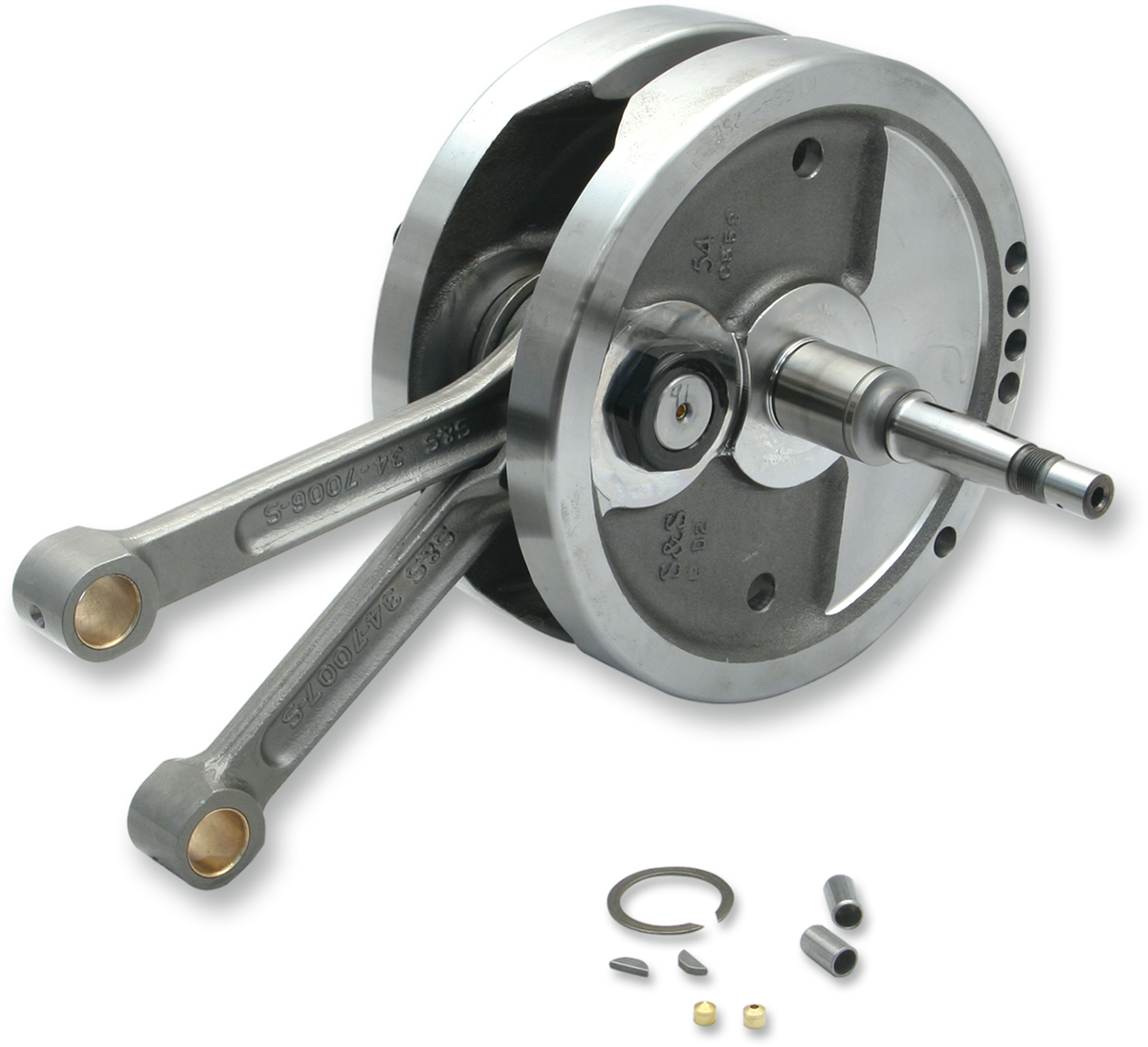

  • Includes a dynamically balanced 41/2?" stroke flywheel assembly complete with S&S heavy-duty connecting rods and mainshafts
  • Reuse the stock cylinders, saving cost and retaining stock appearance of the engine
  • Minor crankcase and cylinder modifications are required that can easily be done with hand tools
  • Kit requires special pistons which must be ordered separately (Contact S&S for required pistons)

    • Specs

  • Type: Stroker
  • Engine Type: 4-Stroke
  • Product Name: Flywheel Assembly
  • Riding Style: Street
  • Stroke Length: 4-1/2"
  • Units: Each
  • Displacement: 84"
  • Stroke Length: 4-1/2"

    • Approximate Package Weight & Dimensions

  • Weight: 39.5
  • Height: 11.13
  • Length: 14.78
  • Width: 12.14
