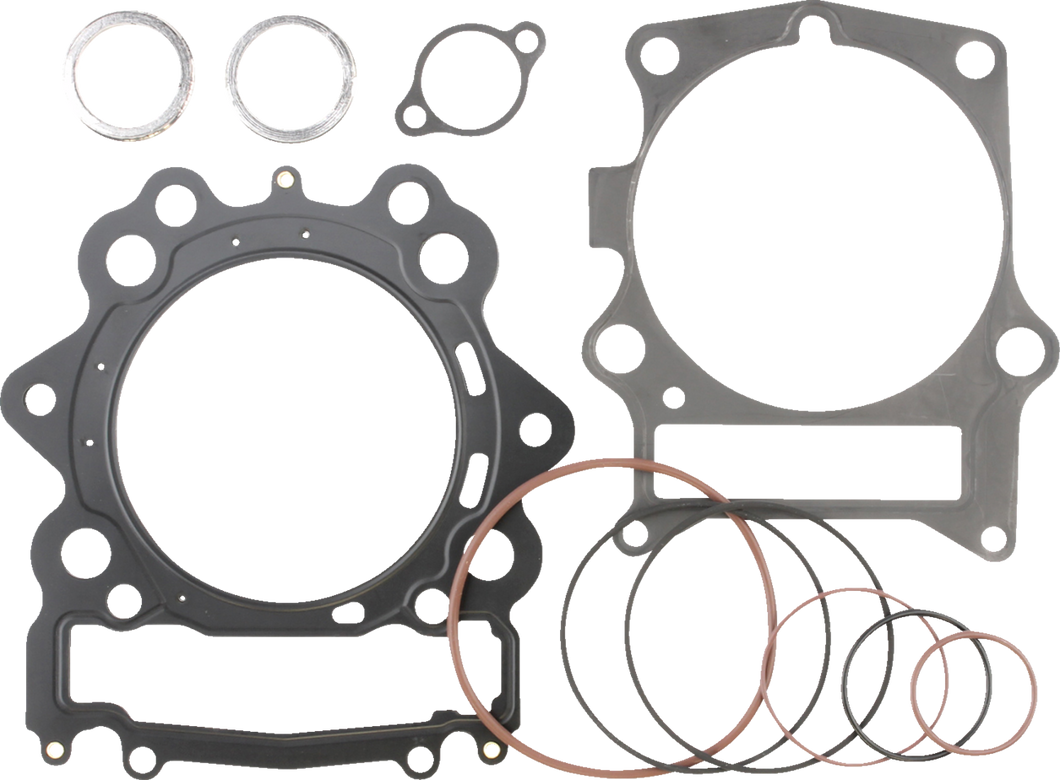

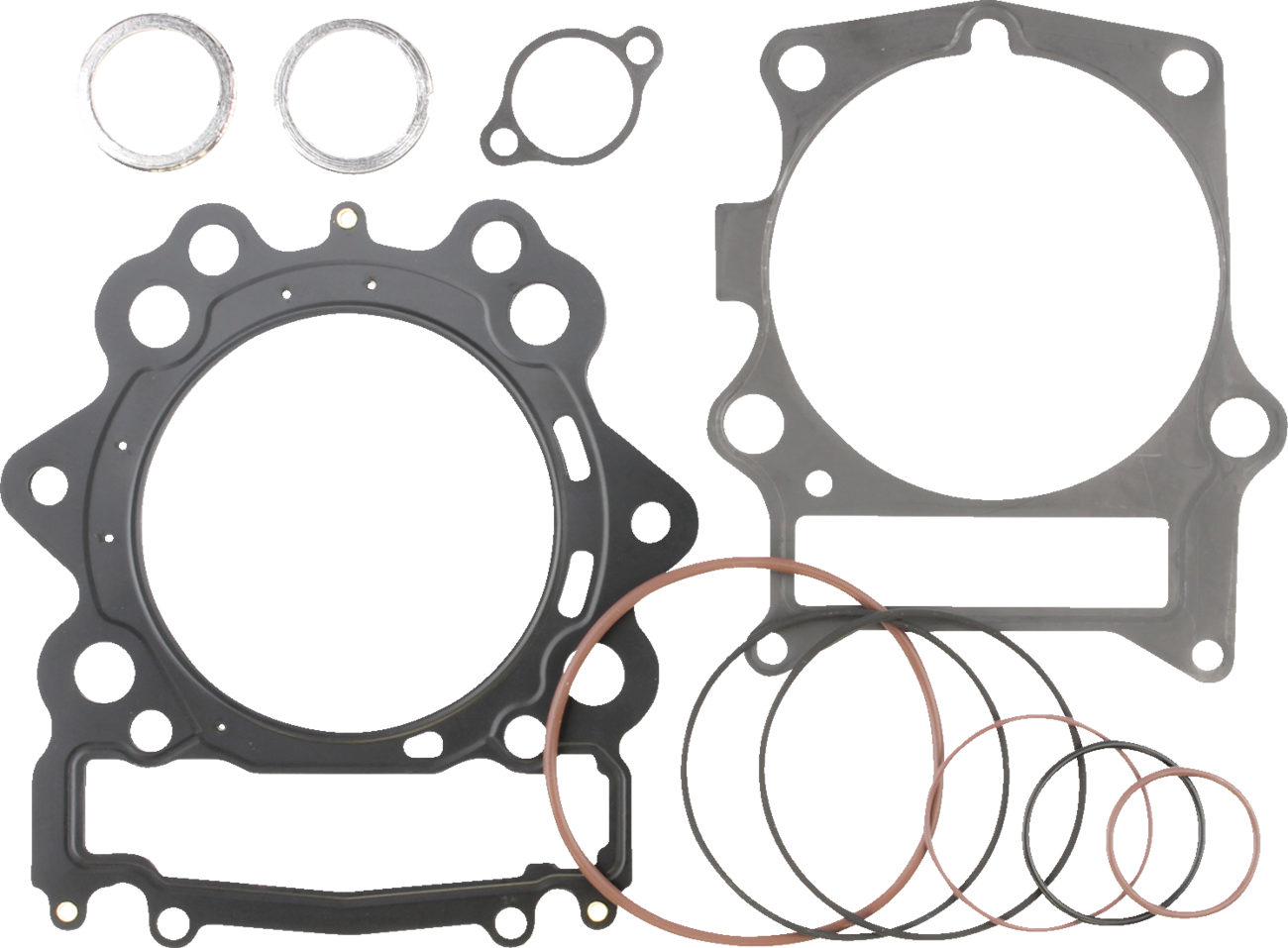

Top End Gasket Kit - 104 mm - Yamaha

COMETIC

Top End Gasket Kit - 104 mm - Yamaha

0934-7870

$109.95

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
2007 - 2015 Yamaha YFM 700 Grizzly AT FI 4x4
2007 - 2015 Yamaha YFM 700 FGP Grizzly AT FI EPS 4x4
2013 - 2023 Yamaha Raptor 700 4x2
2020 - 2023 Yamaha YFM 700 Grizzly EPS XT-R 4x4
2009 - 2015 Yamaha YFM 700 FG Grizzly AT FI EPS SE 4x4
2019 - 2023 Yamaha YFM 700 Kodiak EPS 4x4
2007 - 2023 Yamaha Raptor 700R SE 4x2
2015 - 2023 Yamaha Viking 700 VI EPS EFI 4x4
2016 - 2023 Yamaha Viking 700 VI Ranch EPS EFI 4x4
2008 - 2012 Yamaha YXR Rhino 700 Sport
2019 - 2023 Yamaha YFM 700 Grizzly EPS 4x4
2014 - 2019 Yamaha Viking 700 SE EPS EFI
2019 - 2023 Yamaha YFM 700 Kodiak 4x4
2019 - 2023 Yamaha YFM 700 Kodiak EPS SE 4x4
2006 - 2023 Yamaha Raptor 700R 4x2
2014 - 2023 Yamaha Viking 700 EPS 4x4
2014 - 2015 Yamaha Viking 700 4x4
2015 - 2016 Yamaha Viking 700 VI 4x4
2015 - 2017 Yamaha Viking 700 VI SE EPS EFI 4x4
2008 - 2013 Yamaha YXR 700FI Rhino 4x4
2008 - 2013 Yamaha YXR Rhino 700 Special Edition
2019 - 2023 Yamaha YFM 700 Grizzly EPS SE 4x4
2018 - 2023 Yamaha Viking 700 Ranch EPS EFI
2007 Yamaha Raptor 700R GYTR Edition 4x2
2008 Yamaha Rhino 700 Ducks Unlimited Edition

Features

  • Top end gasket kit includes correct base, head gasket and cylinder O-rings as well as other top end specific O-rings or seals needed for R&R of top end
  • MLS head gaskets promote an even torque load across the gasket sealing surface, providing less bore distortion and better piston ring seal for more power
  • 4-stroke head gaskets are made to perform on today’s highest-output 4-stroke naturally aspirated and boosted machines, utilizing a multi-layered steel design with the outer layers being embossed and coated with a Viton rubber coating; these head gaskets are designed to meet the demands of today's high-horsepower, high-cylinder-pressure engines
  • EST (Extreme Sealing Technology) gasket kit includes embossed stainless steel head, base and rocker gaskets covered with a proprietary rubber material
  • Head gasket material allows heat to be drawn away from the combustion ring and dissipated evenly across the gasket surface to eliminate hot spots and gasket failure
  • Made in the U.S.A.

    • Specs

  • Material: MLS (Multi-layer Steel)
  • Riding Style: ATV
  • Type: Top End
  • Units: Kit
  • Bore Size: 104.00 mm
  • Product Name: Gasket Kit
  • Thickness: 0,027"
  • Riding Style: UTV
  • Thickness: 0.69 mm

    • Approximate Package Weight & Dimensions

  • Weight: 0.01
  • Height: 0.01
  • Length: 0.01
  • Width: 0.01
