Connecting Rod Kit - KTM

HOT RODS

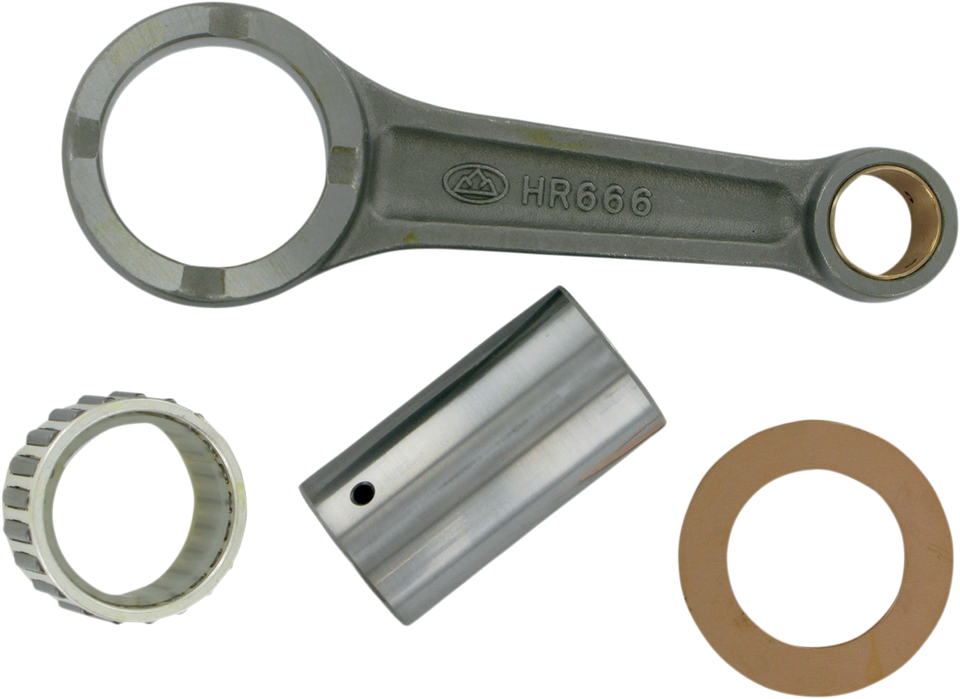

Connecting Rod Kit - KTM

0923-0223

$227.95

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
2003 - 2005 KTM 250 XC-F
2003 - 2005 KTM 250 EXC-F
2003 - 2005 KTM 250 XCF-W 4-Stroke
2003 - 2007 KTM 525 SMR
2003 - 2008 KTM 525 XC
2004 KTM 540 SXS
2003 - 2007 KTM 525 SX Racing 4-Stroke
2003 - 2005 KTM 250 XCF-W Six Days
2007 KTM 450 XC-W Six Days
2003 - 2005 KTM 525 MXC-G
2005 KTM 250 EXC-F Six Days
2003 - 2005 KTM 250 XCF-W Champions Edition
2007 KTM 450 EXC Champions Edition
2003 - 2005 KTM 450 MXC-G
2008 KTM 450 ATV XC
2007 KTM 525 EXC Six Days
2003 - 2006 KTM 525 EXC-G
2007 KTM 450 XC-W Champions Edition
2006 - 2007 KTM 525 MXC Racing 4-Stroke
2003 - 2006 KTM 450 EXC Racing 4-Stroke
2007 KTM 525 EXC Racing 4-Stroke
2007 KTM 450 XC-W
2007 KTM 525 XC-W
2007 KTM 450 EXC

Features

  • Heavy-duty OE replacement connecting rods
  • Certified 8620 AISI steel provides superior strength
  • Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
  • Feature the latest in caged needle roller bearing designs for high rpm longevity
  • Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
  • Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
  • Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
  • Double honing produces an ultra-round bearing surface for reliability at high rpm

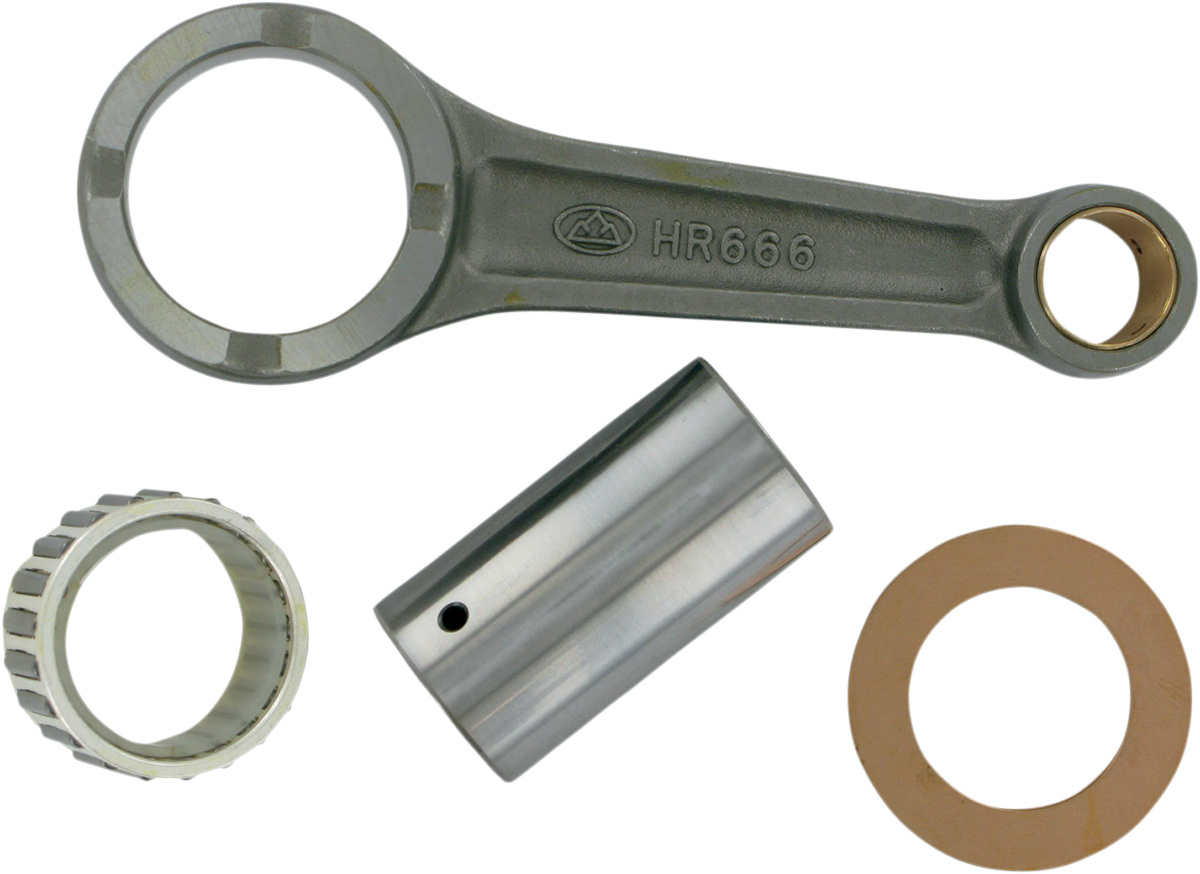

  • Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
  • Compatible with Hot Rods and OE crankshafts
  • Made in the USA

    • Specs

  • Product Name: Connecting Rod Kit
  • Riding Style: ATV
  • Riding Style: Off-Road
  • Features: Includes Thrust Washers
  • Engine Type: 4-Cycle
  • Material: 8620 Steel
  • Riding Style: Adventure Touring / Dual-Sport
  • Units: Kit

    • Approximate Package Weight & Dimensions

  • Weight: 2.06
  • Height: 1.77
  • Length: 7.79
  • Width: 3.46
