HOT RODS

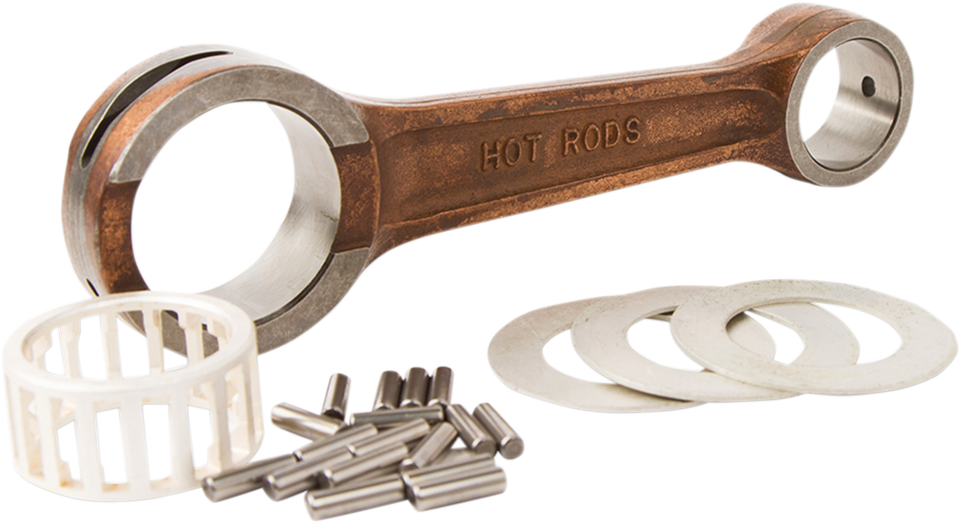

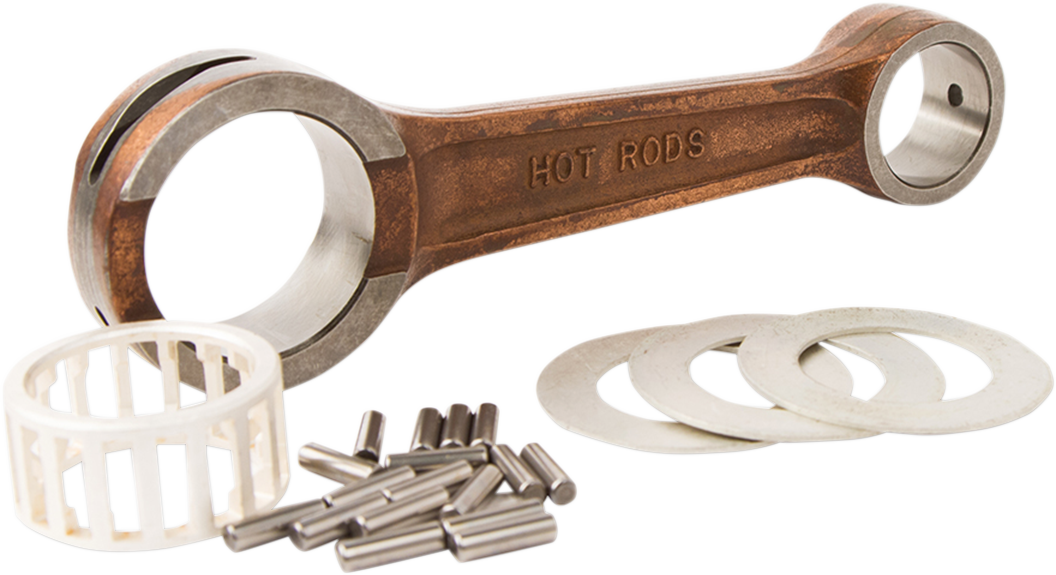

Connecting Rod Kit - Polaris

0923-0326

Regular price $200.95

Quantity

-+

Ask about this product

DESCRIPTION

Fitments

Years	Make	Model
2010 - 2013	Polaris	IQ 600 WideTrak 1.25" w/156" Track
2007 - 2010	Polaris	Indy 700 Classic
2007 - 2009	Polaris	Indy 700 Edge Touring
2007 - 2010	Polaris	Indy 700 SKS
2010	Polaris	Rush 600 Pro-R
2007 - 2012	Polaris	SwitchBack 600
2007 - 2010	Polaris	Indy 700 RMK
2007 - 2012	Polaris	RMK 600
2007 - 2013	Polaris	IQ 600
2011 - 2012	Polaris	Rush 600

Features

Heavy-duty OE replacement connecting rods

Certified 8620 AISI steel provides superior strength

Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc

Feature the latest in caged needle roller bearing designs for high rpm longevity

Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm

Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing

Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses

Double honing produces an ultra-round bearing surface for reliability at high rpm

Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers

Compatible with Hot Rods and OE crankshafts

Made in the USA

Specs

Riding Style: Snow

Material: 8620 Steel

Features: Includes Thrust Washers

Product Name: Connecting Rod Kit

Units: Kit

Engine Type: 2-Cycle

Approximate Package Weight & Dimensions

Weight: 0.85

Height: 1.67

Length: 7.47

Width: 3.3
