HOT RODS

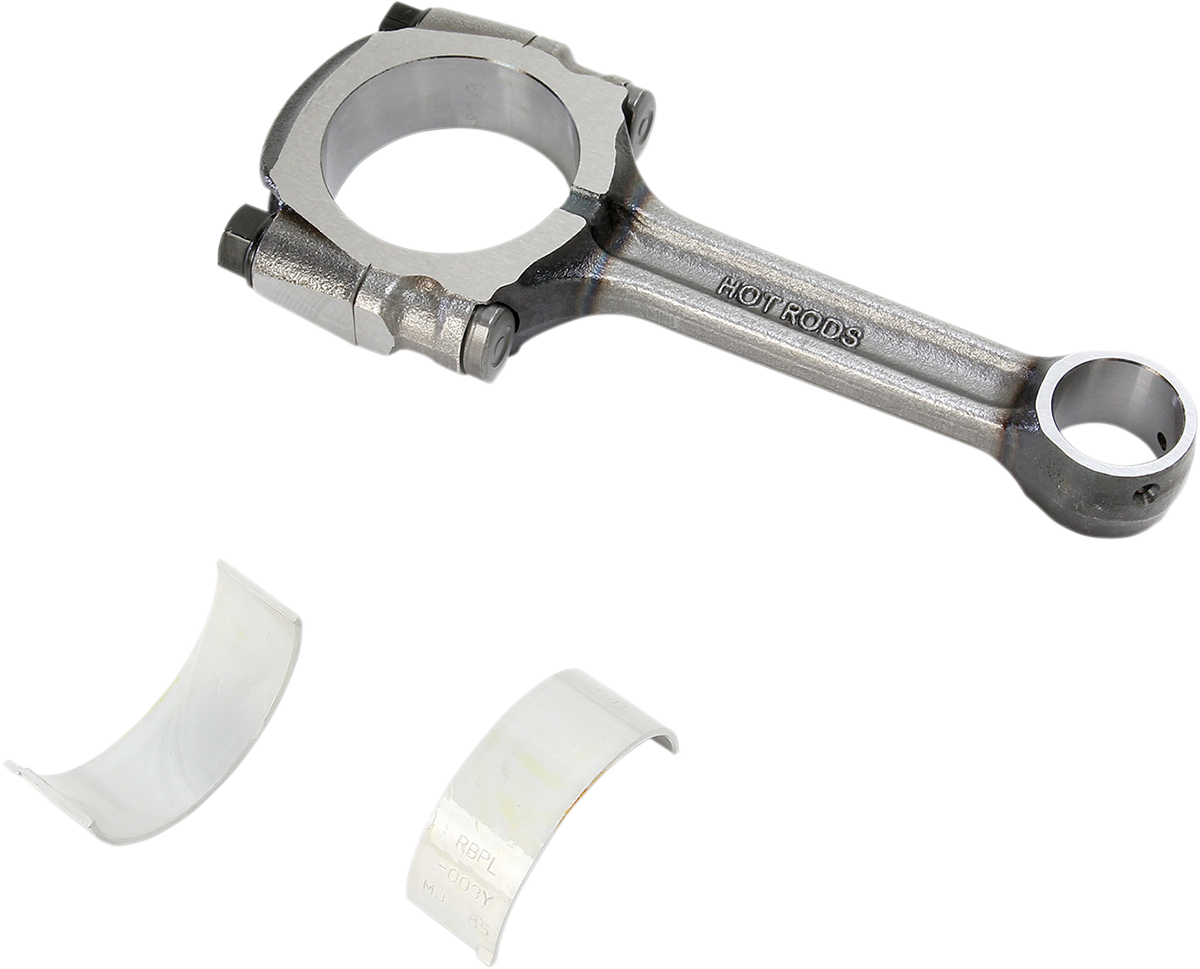

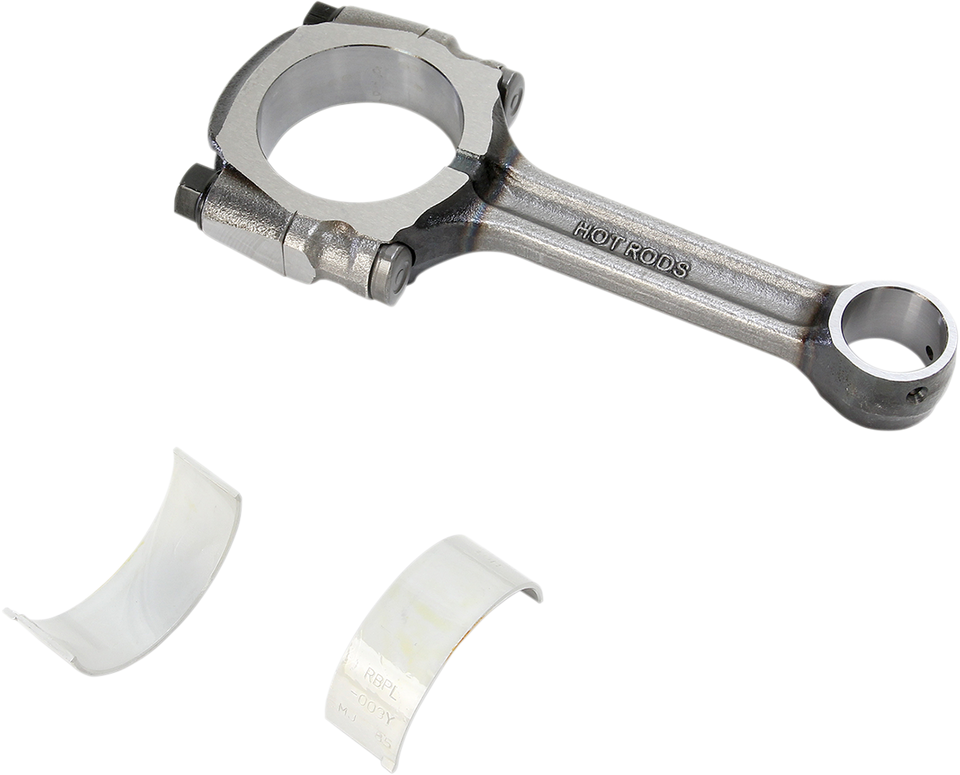

Connecting Rod Kit - Kawasaki | Suzuki

0923-0336

Regular price $215.95

Quantity

-+

Ask about this product

DESCRIPTION

Fitments

Years	Make	Model
2004 - 2009	Kawasaki	KSV 700 KFX V-Force
2009 - 2013	Kawasaki	KRF 750 Teryx FI 4x4 LE
2014 - 2021	Kawasaki	KRF 800 Teryx
2014 - 2021	Kawasaki	KRT 800 Teryx4
2012 - 2013	Kawasaki	KRT 750 Teryx4 EPS 4x4
2021	Kawasaki	Teryx4 LE 4x4
2008	Kawasaki	KRF 750 Teryx 4x4 LE
2021	Kawasaki	KRF 800 Teryx LE
2012 - 2013	Kawasaki	KRT 750 Teryx4 4x4
2004 - 2006	Kawasaki	KVF 700 Prairie 4x4
2008	Kawasaki	KRF 750 Teryx 4x4
2009 - 2013	Kawasaki	KRF 750 Teryx FI 4x4
2005 - 2021	Kawasaki	KVF 750 Brute Force 4x4i
2012 - 2021	Kawasaki	KVF 750 Brute Force EPS 4x4i
2004 - 2005	Suzuki	LT-V 700 F Twin Peaks 4x4

Features

Heavy-duty OE replacement connecting rods

Certified 8620 AISI steel provides superior strength

Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc

Feature the latest in caged needle roller bearing designs for high rpm longevity

Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm

Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing

Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses

Double honing produces an ultra-round bearing surface for reliability at high rpm

Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers

Compatible with Hot Rods and OE crankshafts

Made in the USA

Specs

Riding Style: UTV

Style: Heavy Duty

Product Name: Connecting Rod Kit

Riding Style: ATV

Units: Kit

Material: 8620 Steel

Engine Type: 4-Cycle

Approximate Package Weight & Dimensions

Weight: 0.95

Height: 1.62

Length: 7.7

Width: 3.4
