Connecting Rod Kit - KTM

HOT RODS

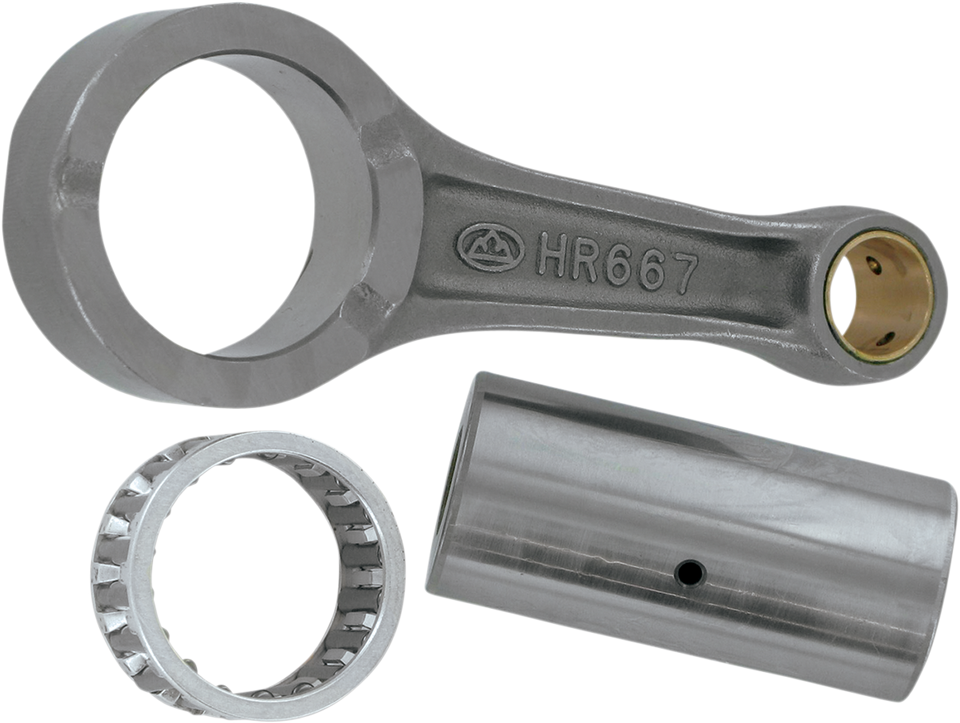

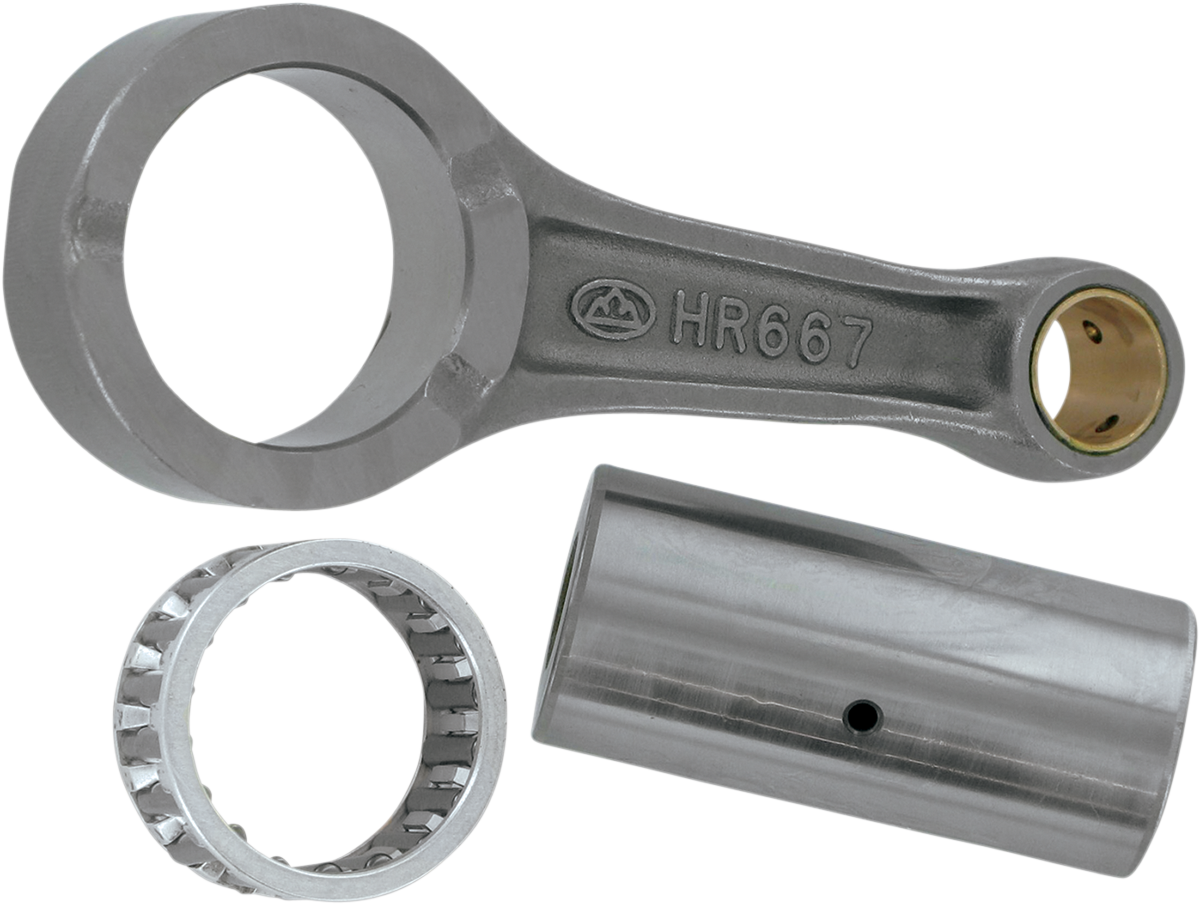

Connecting Rod Kit - KTM

0923-0224

$232.95

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
2008 - 2013 KTM 250 XCF-W Six Days
2008 - 2013 KTM 250 XCF-W Champions Edition
2007 - 2011 KTM 250 XC-F
2005 - 2012 KTM 250 SX-F
2006 - 2007 KTM 250 EXC-F Six Days
2006 - 2007 KTM 250 EXC-F
2006 - 2008 KTM 250 SXS-F
2008 - 2013 KTM 250 XCF-W
2008 - 2013 KTM 250 XCF-W 4-Stroke

Features

  • Heavy-duty OE replacement connecting rods
  • Certified 8620 AISI steel provides superior strength
  • Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
  • Feature the latest in caged needle roller bearing designs for high rpm longevity
  • Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
  • Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
  • Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
  • Double honing produces an ultra-round bearing surface for reliability at high rpm
  • Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
  • Compatible with Hot Rods and OE crankshafts
  • Made in the USA

    • Specs

  • Material: 8620 Steel
  • Product Name: Connecting Rod Kit
  • Riding Style: Off-Road
  • Units: Kit
  • Engine Type: 4-Cycle
  • Riding Style: Adventure Touring / Dual-Sport

    • Approximate Package Weight & Dimensions

  • Weight: 1.35
  • Height: 1.96
  • Length: 7.71
  • Width: 3.46
