DESCRIPTION
Fitments
| Years |
Make |
Model |
| 1996 - 2016 |
Suzuki |
DR 650 SE |
| 1990 - 1992 |
Suzuki |
GSX-R 750 |
| 2017 |
Suzuki |
DR 650 S |
| 1999 - 2019 |
Yamaha |
YZF-R6 |
| 2006 - 2009 |
Yamaha |
YZF-R6 S |
Features
The ultimate in the evolution of spark plug technology and performance from the industry leaderThe iridium electrode is 25% smaller than a platinum electrode, and it's just 1/4 the size of a conventional nickel electrodeUltra-small diameter center electrode reduces voltage requirement and extends ignition system lifeNew metal shell plating has enhanced anti-corrosion qualitiesSpecs
Center Electrode Projection: Non-Projected
Ground Electrode Shape: Grooved
Type: Resistor

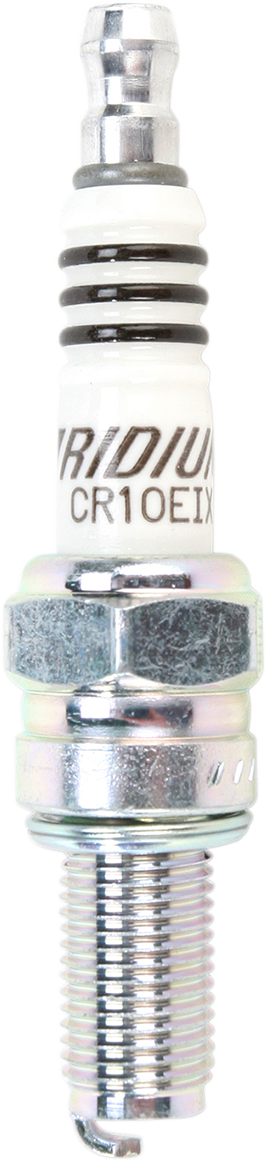

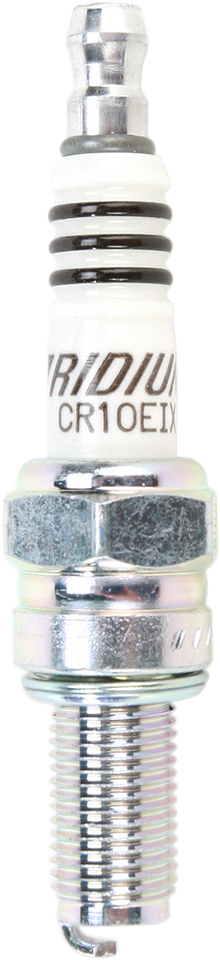

Model: CR10EIX
Riding Style: Adventure Touring / Dual-Sport
Riding Style: Street
Spark Gap: 0.031"
Terminal Configuration: Threaded Stud
Thread Reach: 19.1 mm
Center Electrode Type: Necked Down
Electrode Tip Material: Iridium
Ground Electrode Configuration: Single
Heat Range: 10
Hex Size: 16 mm
Product Name: Spark Plug
Style: Iridium IX
Electrical Resistance: 5k Ohms
Spark Gap: 0.8 mm
Units: EachApproximate Package Weight & Dimensions
Weight: 0.05
Height: 0.83
Length: 3.4
Width: 0.94
