ULTRACOOL

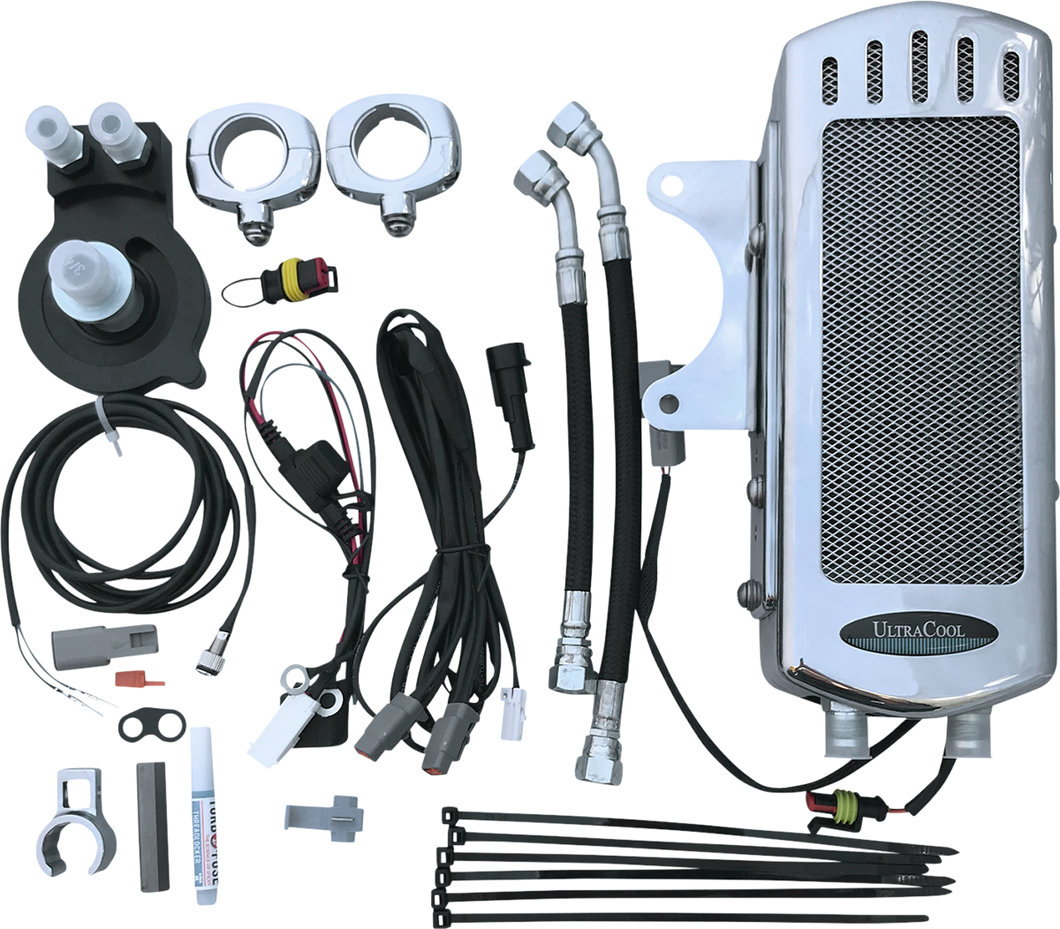

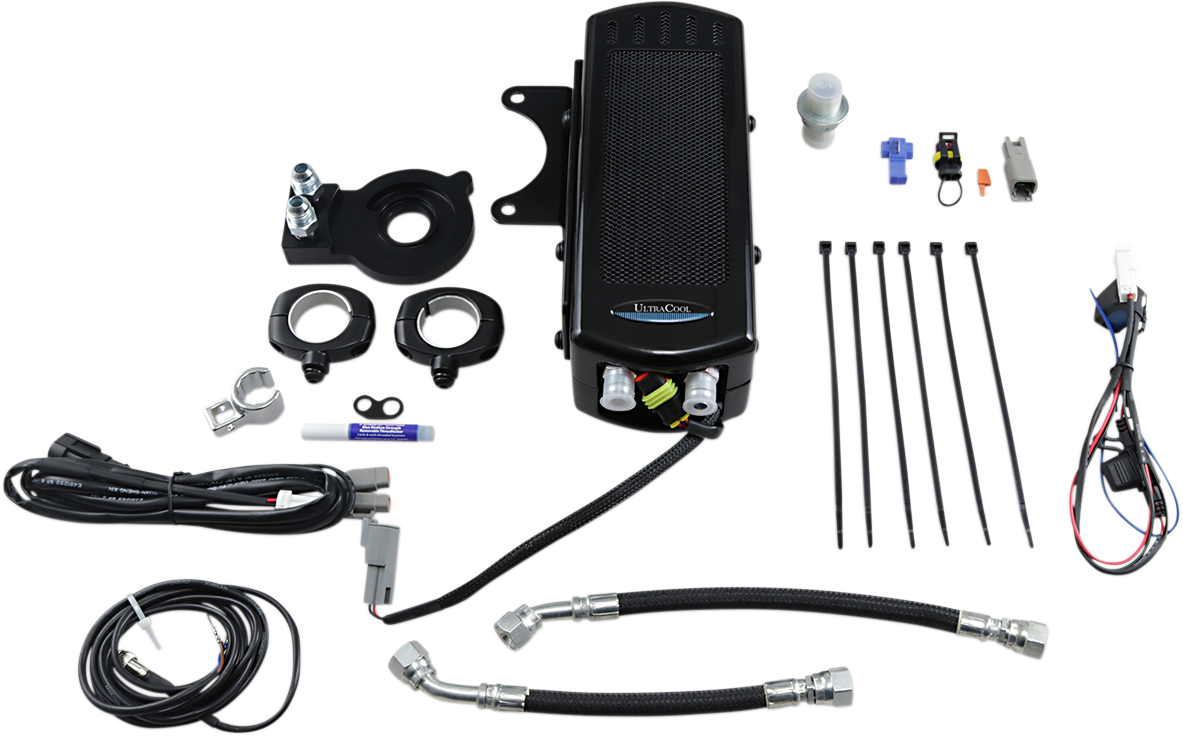

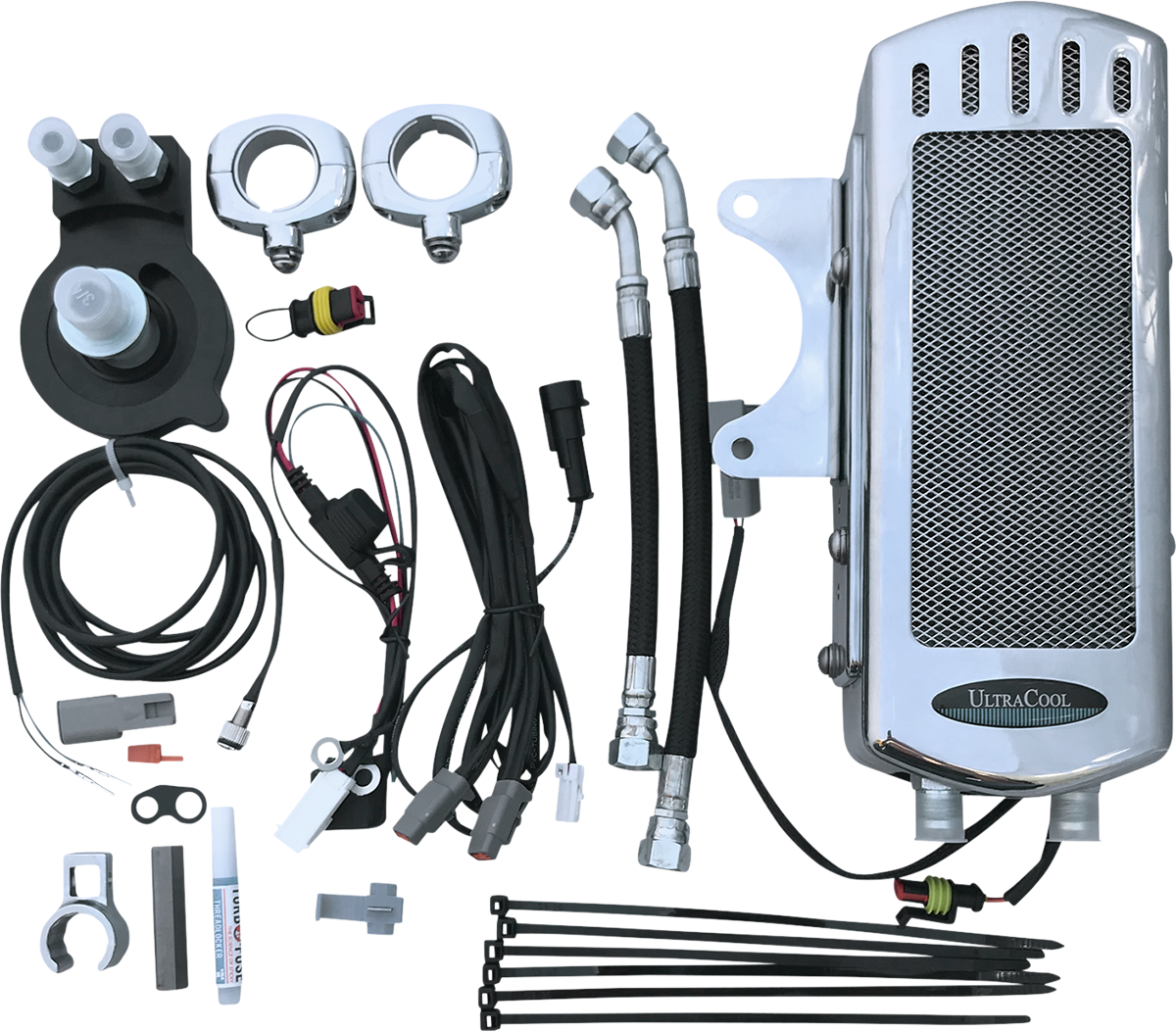

Side Mount Oil Cooler Kit - Sportster

0713-0166

$589.99

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
2004 - 2019 Harley-Davidson XL1200C Sportster 1200 Custom
2006 - 2011 Harley-Davidson XL1200L Sportster 1200 Low
2006 Harley-Davidson 1200 Roadster EFI XLR
2006 Harley-Davidson 883 Low EFI XLL
2010 - 2022 Harley-Davidson XL1200X Forty-Eight
2009 - 2022 Harley-Davidson XL883N Iron 883
2007 - 2012 Harley-Davidson XL1200N Sportster 1200 Nightster
2004 - 2009 Harley-Davidson XL883C Sportster 883 Custom
2016 - 2020 Harley-Davidson XL1200CX Roadster
2018 - 2021 Harley-Davidson XL1200NS Iron 1200
2005 - 2007 Harley-Davidson XL883R Sportster 883 Roadster
2006 Harley-Davidson 1200 Low EFI XLL
2005 - 2010 Harley-Davidson XL883L Sportster 883 Low
2011 - 2019 Harley-Davidson XL883L SuperLow
2004 - 2008 Harley-Davidson XL883 Sportster
2004 - 2009 Harley-Davidson XL1200R Sportster 1200 Roadster
2009 Harley-Davidson 883 EFI XL
2018 - 2019 Harley-Davidson XL1200XS Forty-Eight Special
2014 - 2017 Harley-Davidson XL1200T SuperLow 1200T
2011 - 2017 Harley-Davidson 1200 XLCP
2005 - 2006 Harley-Davidson 883 Roadster EFI XLR
2004 - 2006 Harley-Davidson 883 Custom EFI XLC
2012 - 2016 Harley-Davidson XL1200V Seventy-Two
2011 - 2012 Harley-Davidson Sportster 1200 XR
2009 Harley-Davidson Sportster 1200 X XR
2010 - 2012 Harley-Davidson XR1200X
2007 Harley-Davidson XL50 50th Anniversary Sportster
2004 - 2006 Harley-Davidson 1200 Custom EFI XLC
2010 Harley-Davidson XR1200
2007 Harley-Davidson 883 Roadster XLR

Video


Features

  • Oil adapter and thermal switch with waterproof connectors automatically turns on the powerful dual fans when oil reaches 210 F
  • Specially designed aluminum heat exchanger with turbulators for maximum heat dissipation
  • Sealed waterproof IP68 dual fans producing 220 CFM of airflow
  • Plug-and-play wiring harness with relay and waterproof connectors that all connects to the battery under the seat for simple installation
  • Black nylon-coated stainless steel braided oil lines with AN6 fittings
  • LED indicator light indicates when the fans are operating
  • Special designed oil line fitting wrench and detailed instructions included
  • Has the ability to drop your oil temperature up to 50 F
  • Complete kit; ready to install

    • Specs

  • Product Name: Oil Cooler
  • Style: Side Mount
  • Features: with Cover
  • Riding Style: Street
  • Units: Kit
  • Mounting Position: Down Tube
  • Mounting Position: Side Mount

    • Approximate Package Weight & Dimensions

  • Weight: 6.6
  • Height: 5.66
  • Length: 10.16
  • Width: 8.49
