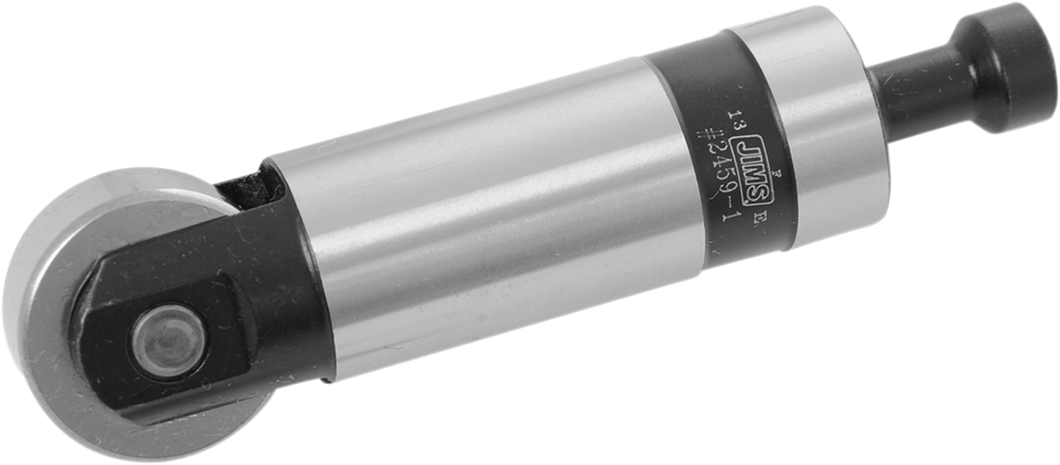

Hydraulic Tappet - Big Twin

JIMS

Hydraulic Tappet - Big Twin

DS-194271

Regular price $171.95

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
1980 - 1983 Harley-Davidson Tour Glide FLT
1982 - 1983 Harley-Davidson Super Glide II FXRS
1984 Harley-Davidson Electra Glide Special FLHX
1980 - 1982 Harley-Davidson Electra Glide Sport FLHS
1983 Harley-Davidson Disc Glide FXDG
1983 Harley-Davidson Sport Glide FXRT
1983 Harley-Davidson Electra Glide Classic FLHTC
1982 - 1983 Harley-Davidson Super Glide II FXR
1980 - 1983 Harley-Davidson Tour Glide Classic FLTC
1966 - 1980 Harley-Davidson 1200 Electra Glide FLH
1966 - 1980 Harley-Davidson Electra Glide FL
1971 - 1978 Harley-Davidson 1200 Super Glide FX
1978 - 1984 Harley-Davidson Electra Glide FLH
1981 Harley-Davidson Electra Glide Heritage FLH
1977 - 1979 Harley-Davidson 1200 Low Rider FXS
1980 - 1984 Harley-Davidson Wide Glide FXWG
1979 - 1984 Harley-Davidson Super Glide 80 FXE
1974 - 1980 Harley-Davidson 1200 Super Glide FXE
1979 - 1982 Harley-Davidson Low Rider FXS
1980 - 1982 Harley-Davidson Sturgis FXB
1979 - 1981 Harley-Davidson Fat Bob FXEF
1983 - 1984 Harley-Davidson Low Rider FXSB
1981 - 1982 Harley-Davidson Electra Glide Classic FLH
1979 - 1980 Harley-Davidson 1200 Fat Bob FXEF
1983 Harley-Davidson Electra Glide Standard FLHT

Features

  • These tappets will run in cast iron or aluminum tappet blocks
  • Recommend fitting the tappets to the blocks with a clearance of .0007" to .0012"
  • Produced from billet bearing steel
  • A true center-line for roller life and exact cam timing
  • State of the art pushrod seat, machined with the same segmented parabolic cup as the JIMS® roller rockers
  • Hand fit hydraulic unit to a running fit of .0002", with ultra precision air gauging system

  • Specs

  • Product Name: Tappet
  • Units: Each
  • Material: Steel
  • Style: Hydraulic
  • Diameter: 0.7310"
  • Riding Style: Street
  • Size: Standard
  • Model: Powerglide Series
  • Size: Standard

  • Approximate Package Weight & Dimensions

  • Weight: 0.25
  • Height: 1.02
  • Length: 4.05
  • Width: 1.14
