DESCRIPTION
Fitments
| Years |
Make |
Model |
| 1986 - 1992 |
Yamaha |
FJ 1200 |
| 1984 - 1985 |
Yamaha |
FJ 1100 |
| 1992 - 1993 |
Yamaha |
FJ 1200 A |
| 1984 - 1989 |
Yamaha |
XT 600 |
| 2009 |
Yamaha |
FZ6 |
| 1987 - 1990 |
Yamaha |
FZR 1000 |
| 1987 - 1988 |
Yamaha |
FZR 750 R |
| 1985 - 1988 |
Yamaha |
FZ 750 |
| 1986 - 1987 |
Yamaha |
FZX 700 Fazer |
| 1987 |
Yamaha |
FZ 700 |
| 1986 |
Yamaha |
SRX 600 |
| 1990 |
Kawasaki |
KL 650 B Tengai |
| 1985 |
Kawasaki |
VN 700 A Vulcan |
| 1993 - 1999 |
Kawasaki |
KLF 400 B Bayou 4x4 |
| 1988 - 2015 |
Kawasaki |
KLR 650 |
| 1998 |
Kawasaki |
KVF 400 Prairie 2x4 |
| 1986 - 1987 |
Suzuki |
LS 650 F Savage |
| 1986 - 1988 |
Suzuki |
LS 650 P Savage |
| 1989 - 1990 |
Suzuki |
GSX-R 1100 |
| 1986 - 1987 |
Suzuki |
Intruder 700 G |
| 1987 |
Suzuki |
Intruder 1400 G |
Features
Trivalent metal plating provides superior anti-corrosion and anti-seizing propertiesPure alumina silicate ceramic insulator, provides superior strength and better heat transferTriple seals prevent leakageCorrugated ribs prevent flashoverCopper core aids in heat removalSpecs
Center Electrode Projection: Projected
Hex Size: 19 mm
Riding Style: ATV
Terminal Configuration: Threaded Stud
Units: Each
Ground Electrode Configuration: Single
Ground Electrode Shape: Standard
Spark Gap: 0.9 mm
Center Electrode Type: Standard
Electrical Resistance: -
Electrode Tip Material: Nickel Alloy
Riding Style: Street
Spark Gap: 0,9 mm (0.035")
Spark Gap: 0.035"
Thread Reach: 19.1 mm
Heat Range: 8

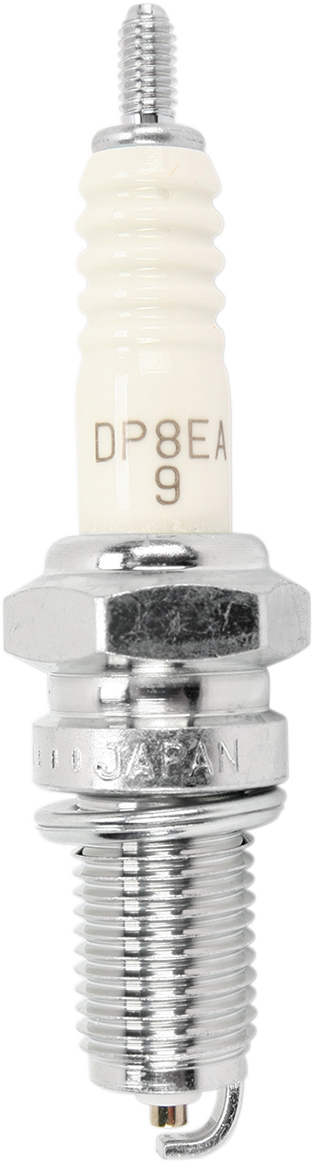

Model: DP8EA-9
Product Name: Spark Plug
Style: Standard
Type: Non-ResistorApproximate Package Weight & Dimensions
Weight: 0.13
Height: 0.74
Length: 3.07
Width: 0.94
