DESCRIPTION
Fitments
| Years |
Make |
Model |
| 1985 - 1990 |
Kawasaki |
EN 450 A 454 Ltd |
| 1990 - 1996 |
Kawasaki |
EN 500 A Vulcan |
| 1996 - 2009 |
Kawasaki |
EN 500 C Vulcan Ltd |
| 1994 - 1996 |
Kawasaki |
EX500 Ninja 500 |
| 1997 - 2009 |
Kawasaki |
EX500D Ninja 500R |
| 1981 - 1982 |
Kawasaki |
KZ 305 CSR |
| 1986 - 1987 |
Kawasaki |
ZL 600 B Eliminator |
| 1990 - 1991 |
Kawasaki |
ZR 550 B Zephyr |
| 1991 - 1992 |
Kawasaki |
ZR 750 C Zephyr |
| 1990 - 1997 |
Kawasaki |
Ninja 600R |
| 1987 - 1988 |
Kawasaki |
KZ 305 B Ltd |
| 1995 - 1997 |
Kawasaki |
ZX 600R Ninja |
| 2003 - 2004 |
KTM |
660 Rally |
| 1983 - 1986 |
Suzuki |
GS 550 ES |
| 1983 - 1986 |
Suzuki |
GS 550 L |
| 1988 - 1996 |
Suzuki |
GSX 1100 F Katana |
| 1991 - 1993 |
Suzuki |
GSX 1100 G |
| 1986 - 1987 |
Suzuki |
GSX-R 750 |
| 1980 - 1981 |
Suzuki |
GS 250 T |
| 1983 - 1986 |
Suzuki |
GS 550 E |
| 1982 - 1983 |
Suzuki |
GS 300 L |
| 1983 |
Suzuki |
XN 85 Turbo |
| 1973 - 1974 |
Yamaha |
TX 500 |
| 1998 |
Moto Guzzi |
V10 Centauro Sport |
| 1998 |
Moto Guzzi |
V10 Centauro GT |
| 1981 |
Honda |
CB900F Super Sport |
| 1980 - 1981 |
Honda |
CB900C Custom |
| 1992 |
Ducati |
888 Strada |
Features
The ultimate in the evolution of spark plug technology and performance from the industry leaderThe iridium electrode is 25% smaller than a platinum electrode, and it's just 1/4 the size of a conventional nickel electrodeUltra-small diameter center electrode reduces voltage requirement and extends ignition system lifeNew metal shell plating has enhanced anti-corrosion qualitiesSpecs
Center Electrode Projection: Non-Projected
Center Electrode Type: Necked Down

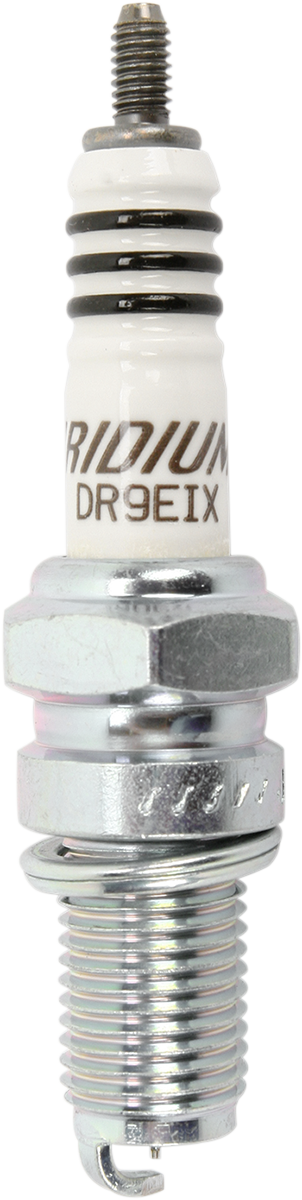

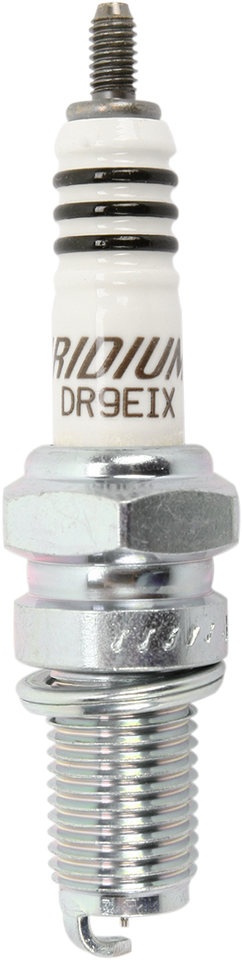

Product Name: Spark Plug
Spark Gap: 0.031"
Thread Reach: 19.1 mm
Type: Resistor
Heat Range: 9
Hex Size: 19 mm
Riding Style: Street
Terminal Configuration: Threaded Stud
Units: Each
Electrical Resistance: 5k Ohms
Ground Electrode Configuration: Single
Ground Electrode Shape: Grooved
Style: Iridium IX
Electrode Tip Material: Iridium
Model: DR9EIX
Spark Gap: 0.8 mmApproximate Package Weight & Dimensions
Weight: 0.1
Height: 1
Length: 3
Width: 1
