DESCRIPTION
Fitments
| Years |
Make |
Model |
| 2009 - 2021 |
Harley-Davidson |
Iron 883 XLN |
| 2011 - 2019 |
Harley-Davidson |
883 SuperLow XLL |
| 2002 - 2007 |
Harley-Davidson |
883 Roadster XLR |
| 2005 - 2006 |
Harley-Davidson |
883 Low XLL |
| 1998 - 2006 |
Harley-Davidson |
883 Custom XLC |
| 1987 - 2003 |
Harley-Davidson |
883 Hugger XLH |
| 1986 - 2003 |
Harley-Davidson |
Sportster 883 XLH |
| 1986 - 1995 |
Harley-Davidson |
883 Deluxe XLH |
| 1999 - 2009 |
Harley-Davidson |
883 Custom EFI XLC |
| 2007 - 2009 |
Harley-Davidson |
883 EFI XL |
| 2006 - 2010 |
Harley-Davidson |
883 Low EFI XLL |
| 2004 - 2006 |
Harley-Davidson |
883 XL |
| 2002 - 2007 |
Harley-Davidson |
883 Roadster EFI XLR |
| 2012 - 2016 |
Harley-Davidson |
Seventy-Two XLV |
| 1996 - 2006 |
Harley-Davidson |
1200 Custom XLC |
| 2002 - 2019 |
Harley-Davidson |
1200 Custom EFI XLC |
| 2006 - 2011 |
Harley-Davidson |
1200 Low EFI XLL |
| 1988 - 2003 |
Harley-Davidson |
Sportster 1200 XLH |
| 2010 - 2019 |
Harley-Davidson |
Forty-Eight XLX |
| 1986 - 1988 |
Harley-Davidson |
Sportster 1100 XLH |
| 2009 - 2012 |
Harley-Davidson |
Sportster 1200 X XR |
| 2018 - 2019 |
Harley-Davidson |
Iron 1200 XLNS |
| 2002 - 2017 |
Harley-Davidson |
1200 XLCP |
| 1996 - 2003 |
Harley-Davidson |
1200 Sport XLS |
| 2009 - 2012 |
Harley-Davidson |
Sportster 1200 XR |
| 2014 - 2017 |
Harley-Davidson |
SuperLow 1200 XLT |
| 2007 |
Harley-Davidson |
Sportster 1200 XL 50 |
| 2006 |
Harley-Davidson |
1200 Low XLL |
| 2004 - 2006 |
Harley-Davidson |
1200 Roadster XLR |
| 2006 - 2008 |
Harley-Davidson |
1200 Roadster EFI XLR |
| 2007 - 2012 |
Harley-Davidson |
1200 Nightster XLN |
| 2018 - 2019 |
Harley-Davidson |
Forty-Eight Special XLXS |
| 2016 - 2019 |
Harley-Davidson |
1200 Roadster XLCX |
Features

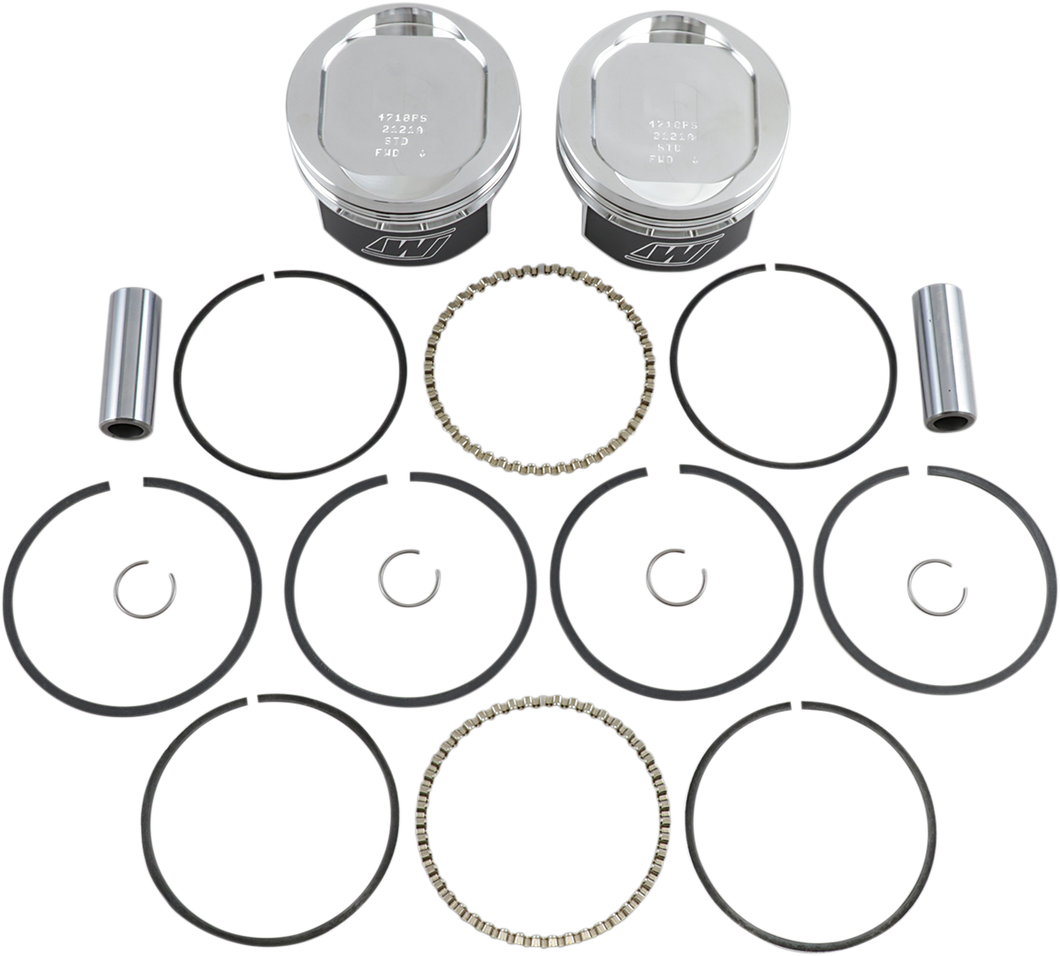

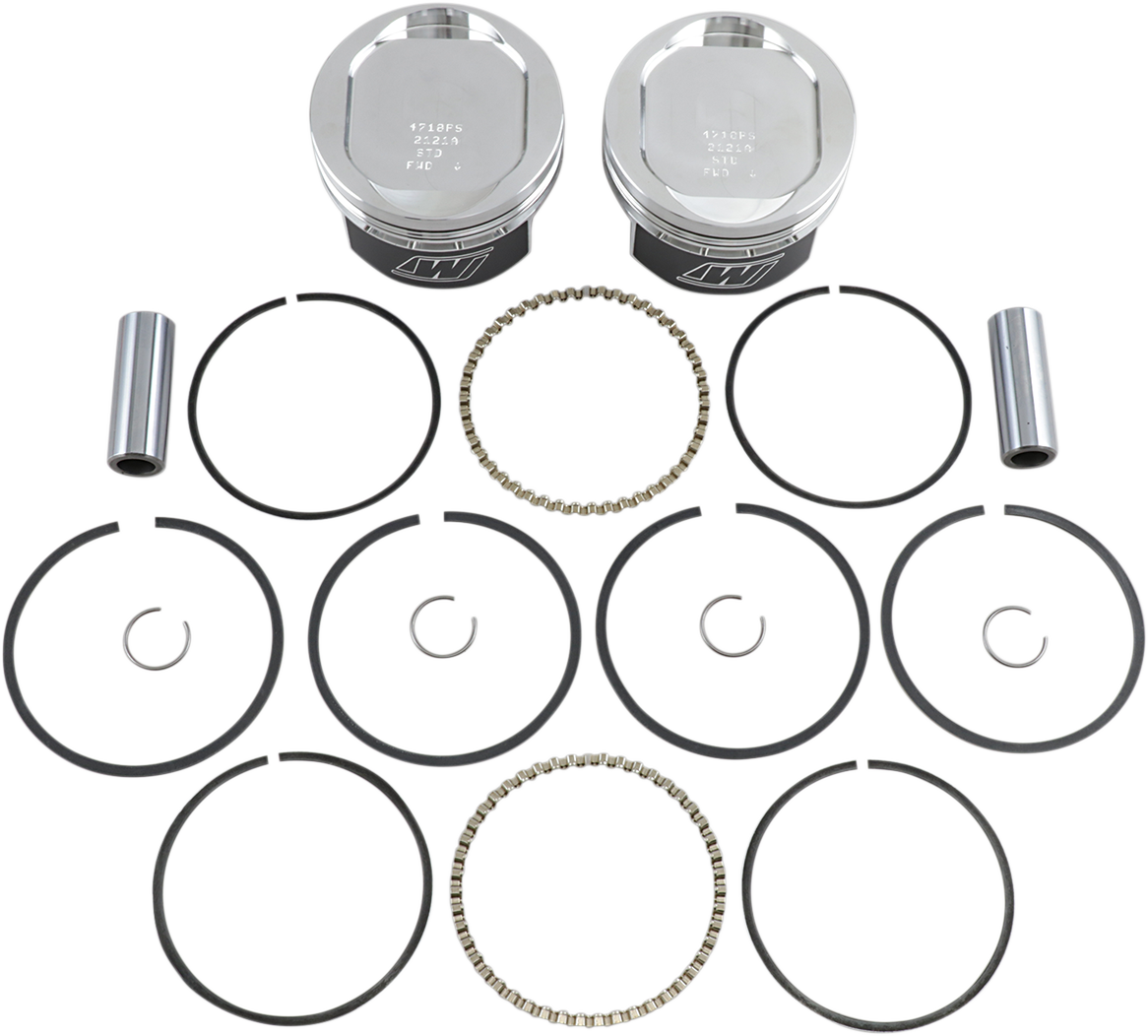

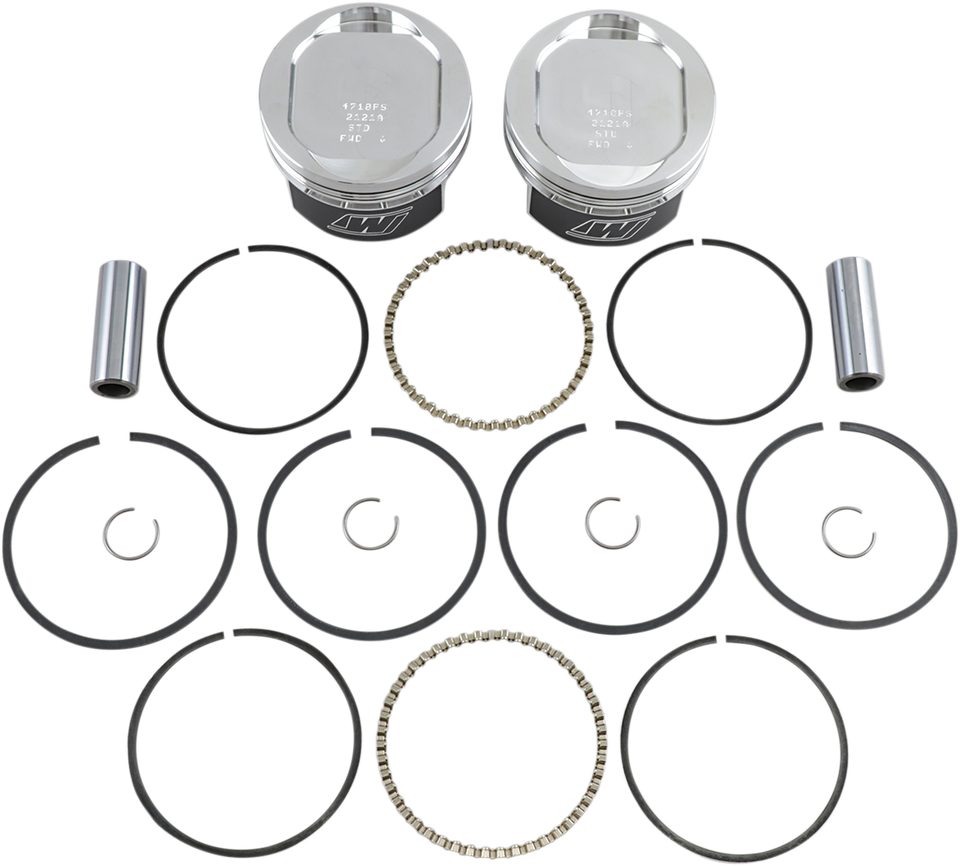

Forged from high-silicon aluminum alloy for maximum strength and dependabilityKit Includes pistons, rings, retainer clips and chrome piston pinsIncludes X-Ring package (0.062" top ring, 0.062" compression ring, and 0.158" oil ring)Pistons are made in the USASpecs
Piston Head Shape: Inverted Dome -11.2 cc
Piston Material: Forged 2618 Aluminum
Bore - Oversize: Standard
Bore Oversize: Standard
Color/Finish: Aluminum
Compression Ratio: 9.5:1
Piston Diameter: 3.4955"
Riding Style: Street
Skirt Coating: Non-Coated
Stroke Length: 3-13/16"
Displacement: 1200 cc
Product Name: Rebuild Kit
Bore Size: 3.498"
Engine Type: 4-Stroke
Type: Top End
Units: KitApproximate Package Weight & Dimensions
Weight: 2.25
Height: 3.93
Length: 8.66
Width: 4.33
