ALL BALLS

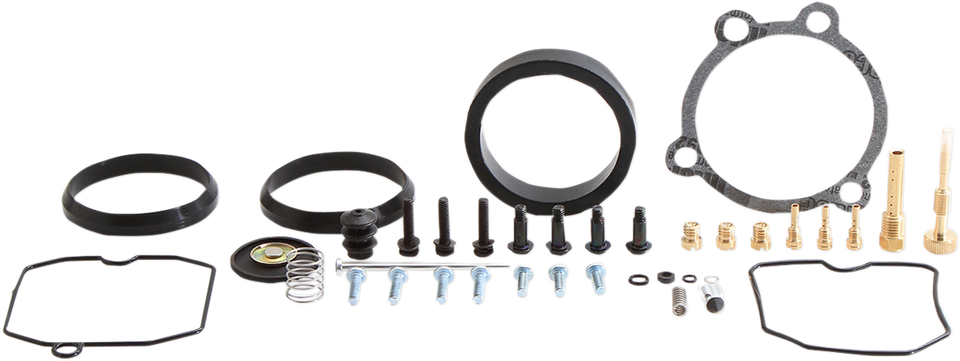

CV Carburetor Rebuild Kit - Sportster 883

1003-1271

Regular price $117.50

Quantity

-+

Ask about this product

DESCRIPTION

Fitments

Years	Make	Model
1988 - 2003	Harley-Davidson	883 Hugger XLH
1998 - 2003	Harley-Davidson	883 Custom XLC
1988 - 1995	Harley-Davidson	883 Deluxe XLH
1988 - 2003	Harley-Davidson	Sportster 883 XLH
2002 - 2003	Harley-Davidson	883 Roadster XLR

Features

Intended for closed-course racing only

Components included in the kit are based off of U.S. models and discretion must be used when attempting to install the kit on a non-US model

NBR rubber material is used on all O-rings and rubber gaskets; NBR has excellent resistance to the ethanol used in today’s fuels

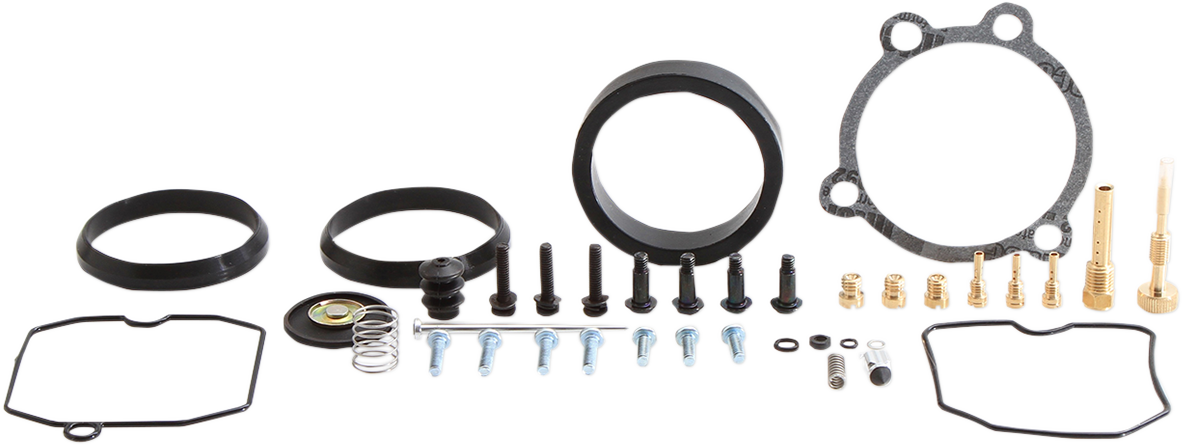

Includes all gaskets, O-rings, float bowl, carburetor cap, accelerator pump screws, extended fuel mixture screw (with spring, washer, and O-ring), accelerator pump diaphragm (spring and boot), float needle valve (FMK tip), emulsion tube, slide needle and main/pilot jets

Three main jets and three pilot jets that can be used to tune a stock machine or a modified one

Specs

Base Color: Black

Product Name: Rebuild Kit

Riding Style: Street

Color/Finish: Black

Color/Finish: Gold

Material: Brass

Material: Rubber

Type: Carburetor

Units: Kit

Approximate Package Weight & Dimensions

Weight: 0.15

Height: 1.14

Length: 5.9

Width: 4
