HOT RODS

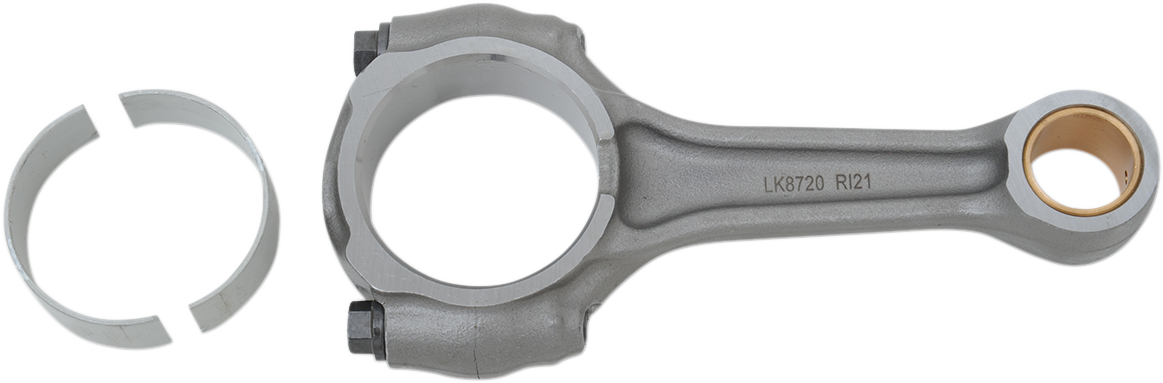

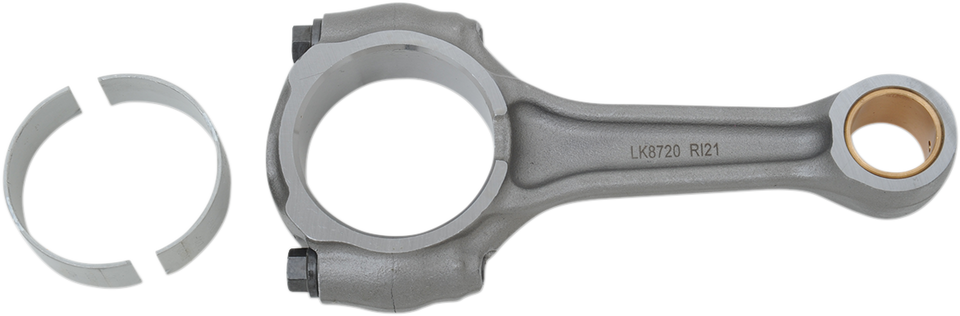

Connecting Rod Kit - Polaris

0923-0518

Regular price $203.95

Quantity

-+

Ask about this product

DESCRIPTION

Fitments

Years	Make	Model
2014 - 2018	Polaris	Scrambler XP 1000 H.O. EPS
2021	Polaris	Scrambler XP 1000 S 4x4
2014	Polaris	Scrambler XP 850 H.O.
2015 - 2021	Polaris	Sportsman XP 1000 4x4
2019 - 2021	Polaris	Sportsman XP 1000 High Lifter Edition 4x4
2016 - 2021	Polaris	Sportsman 850 High Lifter Edition 4x4
2013	Polaris	Scrambler XP 850 H.O. LE EPS 4x4
2019 - 2021	Polaris	Sportsman Touring XP 1000 4x4
2010 - 2011	Polaris	Sportsman Touring 850 EPS 4x4
2015 - 2019	Polaris	Sportsman Touring 850 SP 4x4
2015 - 2019	Polaris	Sportsman 850 SP
2009 - 2011	Polaris	Sportsman XP 850
2010 - 2012	Polaris	Sportsman XP 850 EPS LE Browning
2013 - 2014	Polaris	Sportsman XP 850 H.O. LE EPS
2010 - 2012	Polaris	Sportsman XP 850 EPS LE
2013 - 2014	Polaris	Sportsman Touring 850 H.O. EPS 4x4
2019 - 2020	Polaris	Sportsman 850 SP Premium EPS 4x4
2012	Polaris	Sportsman Touring 850 LE EPS
2014	Polaris	Sportsman 850 H.O. WV 4x4
2011	Polaris	Sportsman X2 850 LE
2009 - 2011	Polaris	Sportsman XP 850 EPS
2011	Polaris	Sportsman 850 Forest 4x4

Features

Heavy-duty OE replacement connecting rods

Certified 8620 AISI steel provides superior strength

Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc

Feature the latest in caged needle roller bearing designs for high rpm longevity

Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm

Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing

Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses

Double honing produces an ultra-round bearing surface for reliability at high rpm

Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers

Compatible with Hot Rods and OE crankshafts

Made in the USA

Specs

Riding Style: ATV

Engine Type: 4-Cycle

Material: 8620 Steel

Product Name: Connecting Rod Kit

Units: Kit

Approximate Package Weight & Dimensions

Weight: 1.25

Height: 1.89

Length: 7.47

Width: 3.22
