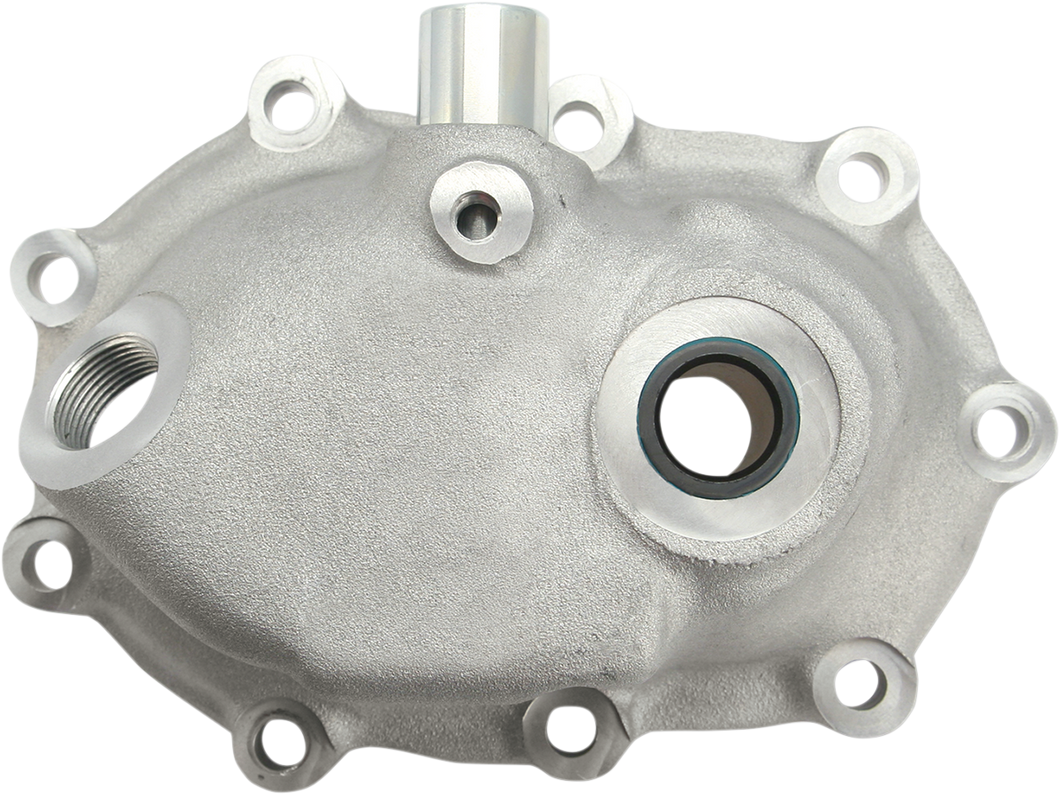

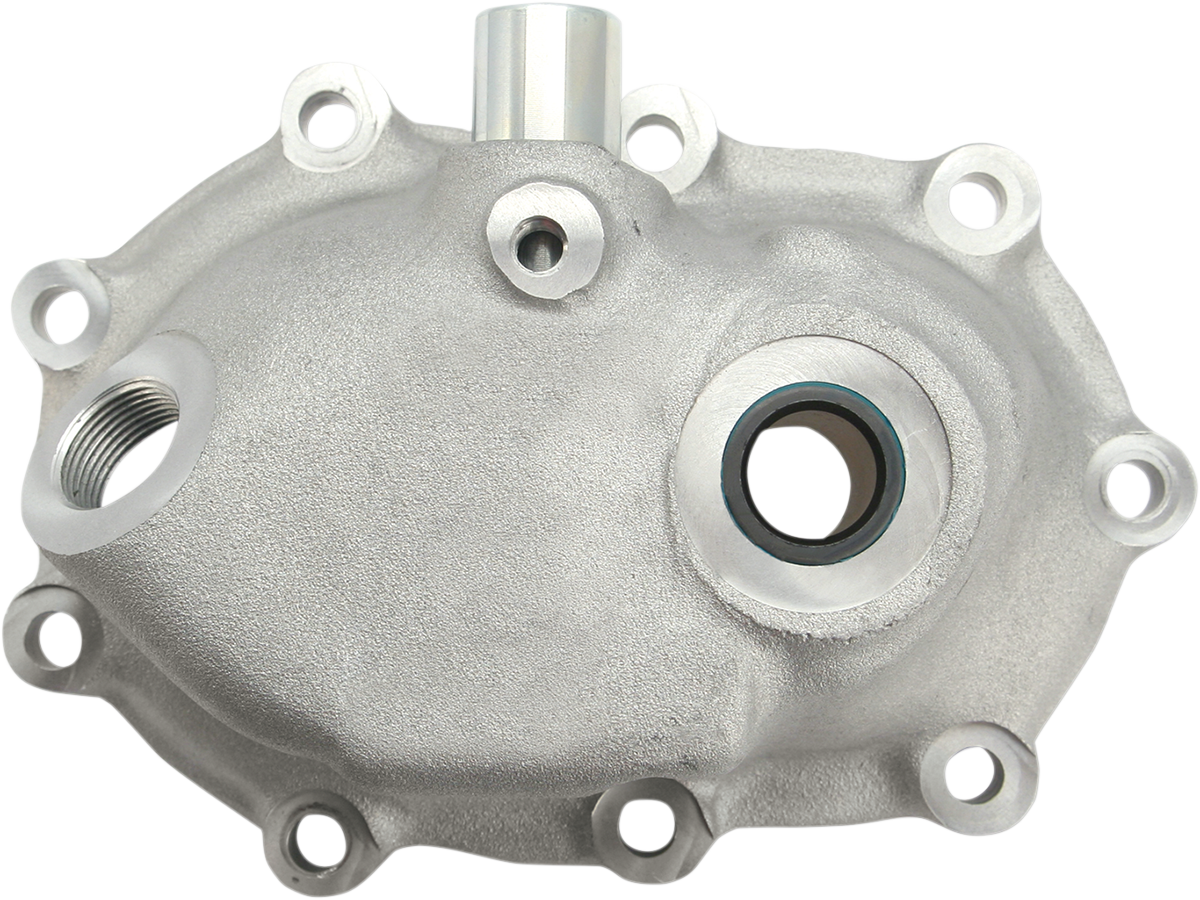

Transmission Side Cover

S&S CYCLE

Transmission Side Cover

1107-0498

$224.95

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
1958 - 1964 Harley-Davidson Duo Glide FLH
1980 - 1982 Harley-Davidson Electra Glide Sport FLHS
1965 - 1980 Harley-Davidson Electra Glide FL
1965 - 1980 Harley-Davidson 1200 Electra Glide FLH
1981 - 1982 Harley-Davidson Electra Glide Classic FLH
1949 - 1957 Harley-Davidson Hydra Glide EL
1949 - 1957 Harley-Davidson Hydra Glide FL
1983 - 1985 Harley-Davidson Low Rider FXSB
1979 - 1982 Harley-Davidson Low Rider FXS
1980 - 1982 Harley-Davidson Sturgis FXB
1980 - 1984 Harley-Davidson Wide Glide FXWG
1971 - 1978 Harley-Davidson 1200 Super Glide FX
1978 - 1983 Harley-Davidson Electra Glide FLH
1974 - 1980 Harley-Davidson 1200 Super Glide FXE
1981 Harley-Davidson Electra Glide Heritage FLH
1977 - 1979 Harley-Davidson 1200 Low Rider FXS
1958 - 1964 Harley-Davidson Duo Glide FL
1979 - 1985 Harley-Davidson Fat Bob FXEF
1979 - 1984 Harley-Davidson Super Glide 80 FXE
1936 - 1947 Harley-Davidson Knucklehead EL
1941 - 1947 Harley-Davidson Knucklehead FL
1979 - 1980 Harley-Davidson 1200 Fat Bob FXEF
1983 Harley-Davidson Disc Glide FXDG
1984 Harley-Davidson Electra Glide Special FLHX
1948 Harley-Davidson FL

Features

  • Close to original as you can get without stealing one from a factory museum bike
  • Boss imperfections in the casting are maliciously duplicated to represent the casting capabilities of the era
  • 100% CNC-machined to achieve quality S&S standards
  • Inside of the cover is an all new design, beefed up around the kicker boss and uses a single kicker shaft bushing for complete oiling and additional strength and stability
  • Cover is clearanced for the use of a large throw-out bearing and the kicker shaft bushing
  • Clutch arm bushings are precision reamed and ready for install
  • Outside is a modern small diameter seal for the kicker shaft that's so stealthy that only you will know it's there
  • The days of a dry outer bearing causing bushing seize are a thing of the past
  • Accepts stock hardware and filler plug
  • Includes a gasket so it's ready to install

    • Specs

  • Type: Transmission End
  • Mounting Style: 9 Hole
  • Material: Aluminum
  • Riding Style: Street
  • Color/Finish: Unfinished
  • Product Name: Cover
  • Units: Each

    • Approximate Package Weight & Dimensions

  • Weight: 2.2
  • Height: 2.5
  • Length: 9
  • Width: 5.6
