DESCRIPTION
Fitments
| Years |
Make |
Model |
| 1998 - 2001 |
Honda |
TRX450S Foreman 4x4 |
| 2002 - 2004 |
Honda |
TRX450FM Foreman S 4x4 |
| 1998 - 2001 |
Honda |
TRX450FE Foreman ES 4x4 |
Video
Features

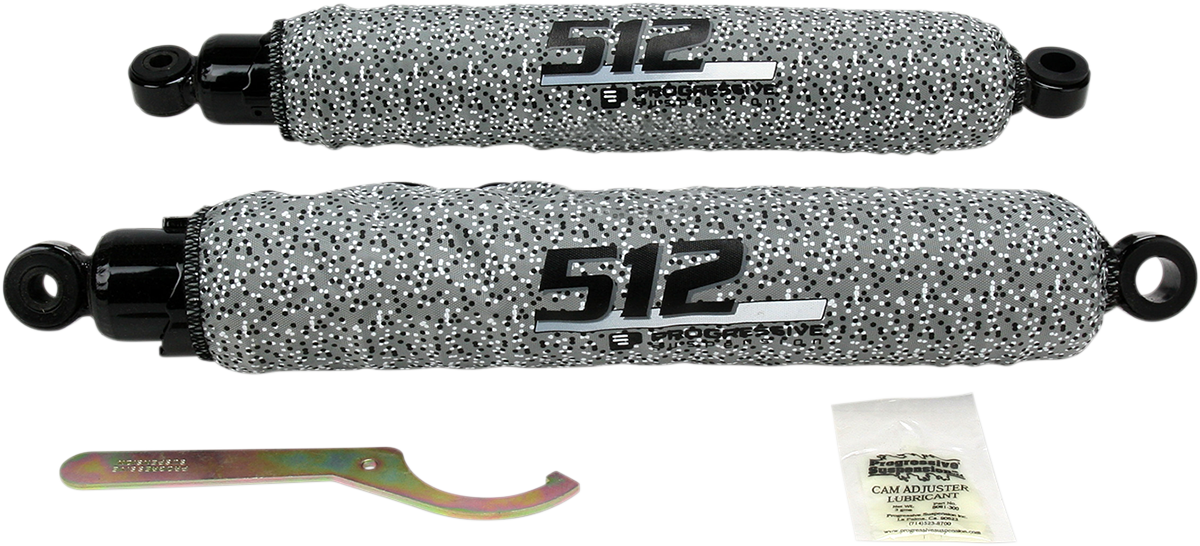

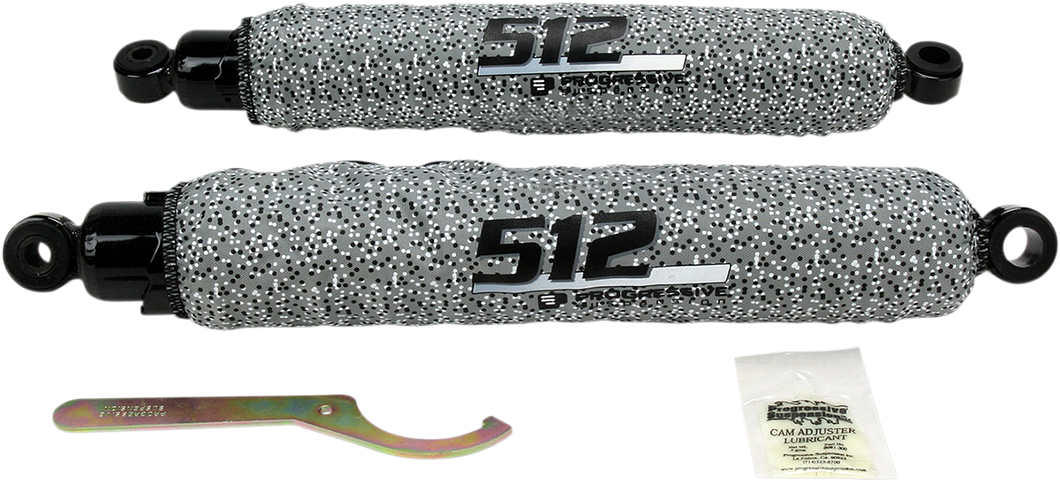

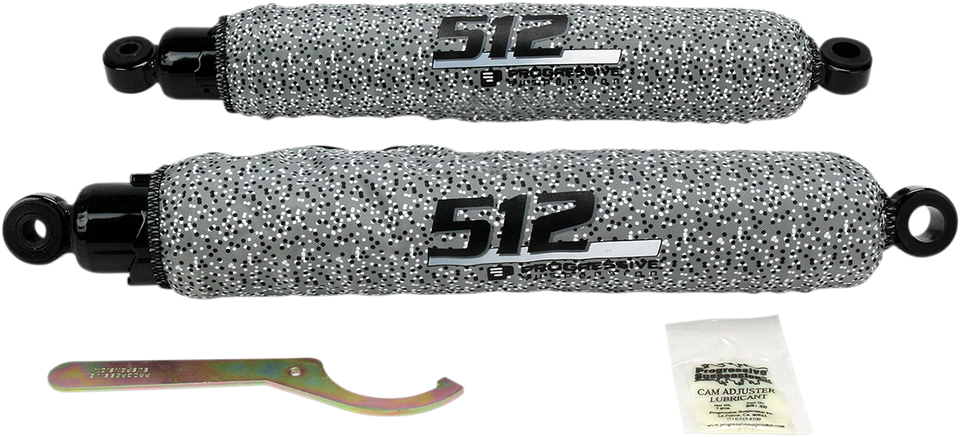

Increase ground clearance and wheel travel 1"-2" on most modelsRugged double-steel-wall constructionProgressive rate springs for comfortable ride and improved load-carrying capacityFive-position spring pre-load adjustment for varying loadsGas charged for fade-free operationDurable fabric Shock Sox are included to protect shocks from rock, sand and mud damageShock Sox are easily removable with hook-and-loop fasteners for cleaning and adjustmentsNot compatible with lift kitsSpecs
Color/Finish: Gray
Material: Steel
Progressive Spring Rate: 2.15 kg/mm - 3.00 kg/mm
Riding Style: ATV
Spring Type: Single Progressive Rate
Type: Coilover Twin-Tube
Damping Method: Gas Charged
Progressive Spring Rate: 120.00 lb/in - 170.00 lb/in
Model: 512 Series
Mounting Position: Rear
Reservoir Location: Internal
Adjustment Type: Adjustable Rebound Damping
Color/Finish: Black
Extended Length: 15.50"
Product Name: Shock Absorber
Units: PairApproximate Package Weight & Dimensions
Weight: 11.81
Height: 4.44
Length: 21.69
Width: 9.01
