Valve Springs - Econo Beehive

FEULING OIL PUMP CORP.

Valve Springs - Econo Beehive

0926-1467

$219.95

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
1999 Harley-Davidson FXR 3
2001 - 2003 Harley-Davidson Softail Heritage Springer EFI FLSTSI
1997 - 2003 Harley-Davidson Softail Heritage Springer FLSTS
1994 - 1996 Harley-Davidson Softail Heritage Special FLSTN
1996 - 2003 Harley-Davidson 1200 Sport XLS
1987 - 2003 Harley-Davidson 883 Hugger XLH
1988 - 2003 Harley-Davidson Sportster 1200 XLH
1986 - 2003 Harley-Davidson Sportster 883 XLH
1986 - 1995 Harley-Davidson 883 Deluxe XLH
1996 - 2003 Harley-Davidson 1200 Custom XLC
2000 - 2004 Harley-Davidson Softail Deuce FXSTD
1993 Harley-Davidson Softail Nostalgia FLSTN
1999 Harley-Davidson FXR 2
2004 Harley-Davidson Low Rider EFI FXDL
2000 Harley-Davidson FXR 4
1986 - 1988 Harley-Davidson Sportster 1100 XLH
1987 - 1993 Harley-Davidson Electra Glide Sport FLHS
1993 - 2004 Harley-Davidson Low Rider FXDL
1994 - 2004 Harley-Davidson Road King FLHR
1998 - 2004 Harley-Davidson Road King Classic EFI FLHRC
1996 Harley-Davidson Tour Glide Ultra Classic EFI FLTCU
2001 - 2003 Harley-Davidson Super Glide T-Sport FXDXT
1998 - 2003 Harley-Davidson 883 Custom XLC
2002 - 2003 Harley-Davidson 883 Roadster EFI XLR
2002 - 2003 Harley-Davidson 1200 Custom EFI XLC
1999 - 2003 Harley-Davidson 883 Custom EFI XLC
2002 - 2003 Harley-Davidson 883 Roadster XLR
2002 - 2003 Harley-Davidson 1200 XLCP
1997 - 2002 Buell M2 Cyclone
2002 - 2003 Buell XB9R Firebolt
2003 Buell XB9S Lightning Low
1996 - 1998 Buell S1 Lightning
1999 - 2003 Buell X1 Lightning
2003 Buell XB9S Lightning
1997 - 2002 Buell S3 Thunderbolt
1997 - 2002 Buell S3T Thunderbolt
2001 - 2002 Buell M2 Cyclone Low
1995 - 1996 Buell S2T Thunderbolt
2000 - 2003 Buell Blast 500
1995 Buell S2 Thunderbolt
1998 Buell S1 White Lightning
2002 Buell X1W White Lightning

Video


Features

  • Made from premium stress-relieved conical ovate wire
  • Feature extremely high-level of fatigue life
  • Use a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
  • Designed to handle the demands of performance engines with 585" and smaller lift camshafts

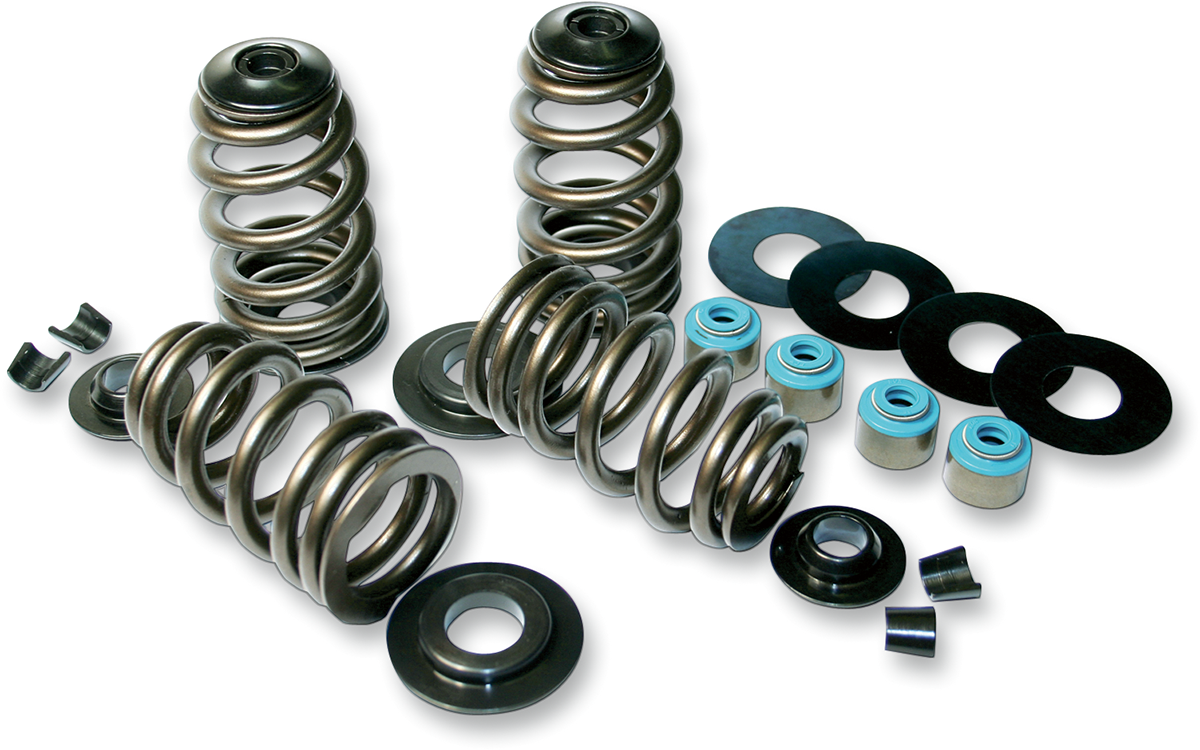

  • Kits include: Econo BeeHive® valve springs, lightweight 7° steel retainers, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
  • Seat lbs./installed height; 183 lbs. at 1.770" (0.510" lift), 175 lbs. at 1.795" (0.535" lift), 172 lbs. at 1.813" (0.553" lift), 165 lbs. at 1.835" (0.574" lift), 160 lbs. at 1.845" (0.585" lift), 380 lbs. at 1.260" OPEN HEIGHT coil bind at 1.190"
  • Dyno proven and track tested
  • Feuling® BeeHive® valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs
  • Made in the U.S.A.

    • Specs

  • Application: Exhaust
  • Model: Econo Beehive
  • Style: Ovate Wire Beehive
  • Type: Valve
  • Riding Style: Street
  • Product Name: Spring Kit
  • Spring Lift: 0,585"
  • Spring Lift: 0.585"
  • Units: Kit
  • Material: Steel
  • Stem Diameter: 0,3125"
  • Stem Diameter: 0.3125"

    • Approximate Package Weight & Dimensions

  • Weight: 1.6
  • Height: 3.28
  • Length: 6
  • Width: 4.9
