LA SLEEVE

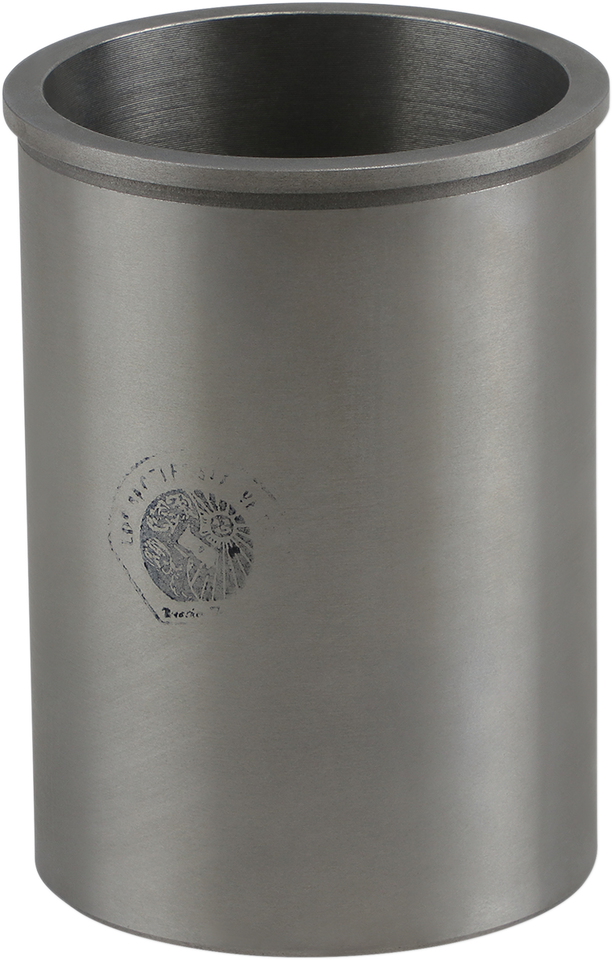

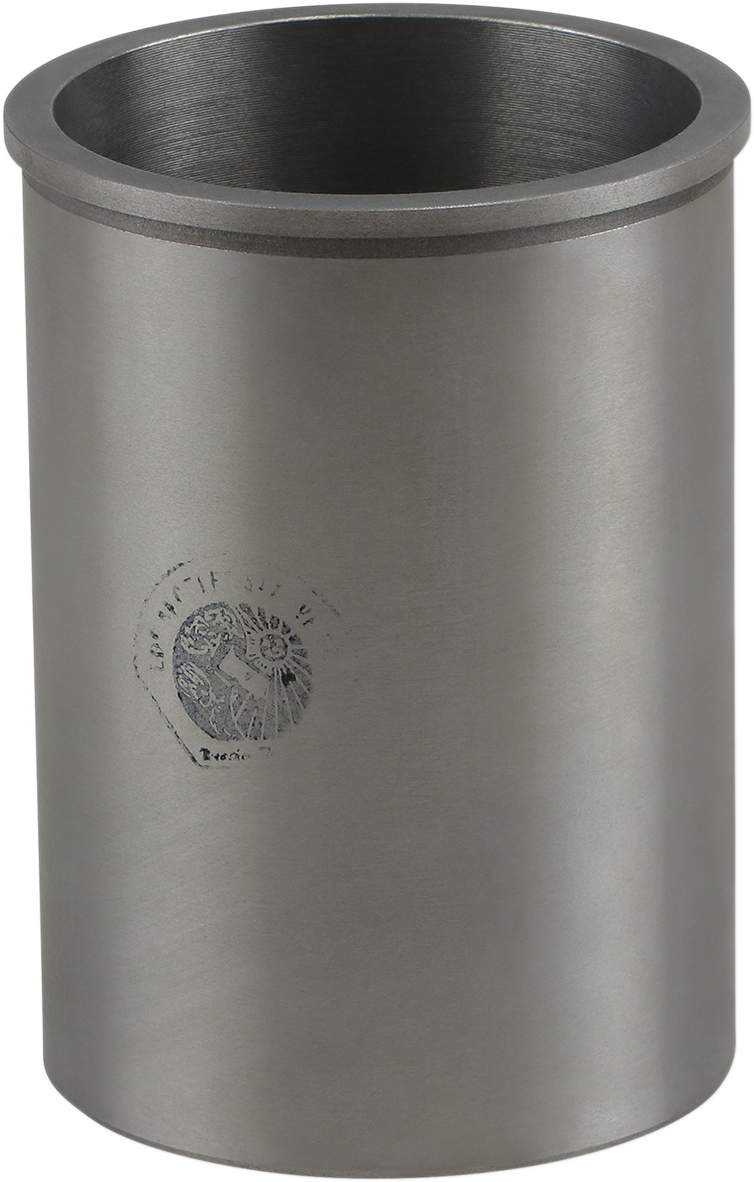

Cylinder Sleeve

0931-0140

Regular price $111.95

Quantity

-+

DESCRIPTION

Years	Make	Model
2002 - 2008	Arctic Cat	400 4x4
2002 - 2008	Arctic Cat	400 4x2
2004 - 2007	Suzuki	400 Eiger
2008 - 2010	Suzuki	LT-A KingQuad 400 AS 4x4
2004 - 2007	Suzuki	LT-A 400F Eiger AT Camo 4x4
2004 - 2007	Suzuki	LT-A 400F Eiger AT 4x4
2011 - 2022	Suzuki	LT-A KingQuad 400 ASi 4x4
2016 - 2018	Suzuki	LT-A KingQuad 400 ASi SE 4x4
2011 - 2022	Suzuki	LT-A KingQuad 400 ASi Camo 4x4
2007	Suzuki	LT-A 400F Eiger Hunter X 4x4
2019	Suzuki	LT-A KingQuad 400 ASi Plus 4x4
2006	Suzuki	LT-A 400F Eiger Celebration Ed. 4x4
2014	Suzuki	LT-A KingQuad 400 ASi LE 4x4
2008 - 2009	Suzuki	LT-F KingQuad 400 FS Camo 4x4
2011 - 2022	Suzuki	LT-F KingQuad 400 FSi Camo 4x4
2011 - 2022	Suzuki	LT-F KingQuad 400 FSi 4x4
2020 - 2022	Suzuki	LT-A KingQuad 400ASi SE Plus
2008 - 2010	Suzuki	LT-F KingQuad 400 FS 4x4
2004 - 2007	Suzuki	LT-A 400 Eiger AT 4x2
2008 - 2009	Suzuki	LT-A KingQuad 400 AS Camo 4x4
2009	Suzuki	LT-F KingQuad 400 FS Anniversary Ed. 4x4
2014	Suzuki	LT-F KingQuad 400 FSi Limited Ed. 4x4
2004 - 2007	Suzuki	LT-F 400F Eiger MT Camo 4x4
2004 - 2007	Suzuki	LT-F 400F Eiger MT 4x4
2009	Suzuki	LT-A KingQuad 400 AS Anniversary Ed. 4x4

Quality replacement cylinder sleeves give old cylinders new life

CS – Original barrel has a cast-in iron liner in the cylinder; liner must be bored out completely (do not try to push out the cast-in liner)

RS – Original barrel has a replacement sleeve

AC – Original cylinder bore is alloy-chrome plated, nikasil, or electrofused; cylinder must be bored to accept new sleeve

CL – The cylinder’s original cast-in liner will be bored, but not completely removed; sleeve is designed to insert into the iron-lined cylinder

Bore Size: 82.00 mm

Product Name: Cylinder Sleeve

Color/Finish: Aluminum

Riding Style: ATV

Units: Each

Cylinder Bore Coating: Chrome-Moly Alloy

Type: AC

Weight: 2.2

Height: 3.71

Length: 5.3

Width: 3.72
