DESCRIPTION
Fitments
| Years |
Make |
Model |
| 2019 - 2020 |
Harley-Davidson |
FXDR 114 |
Video
Features

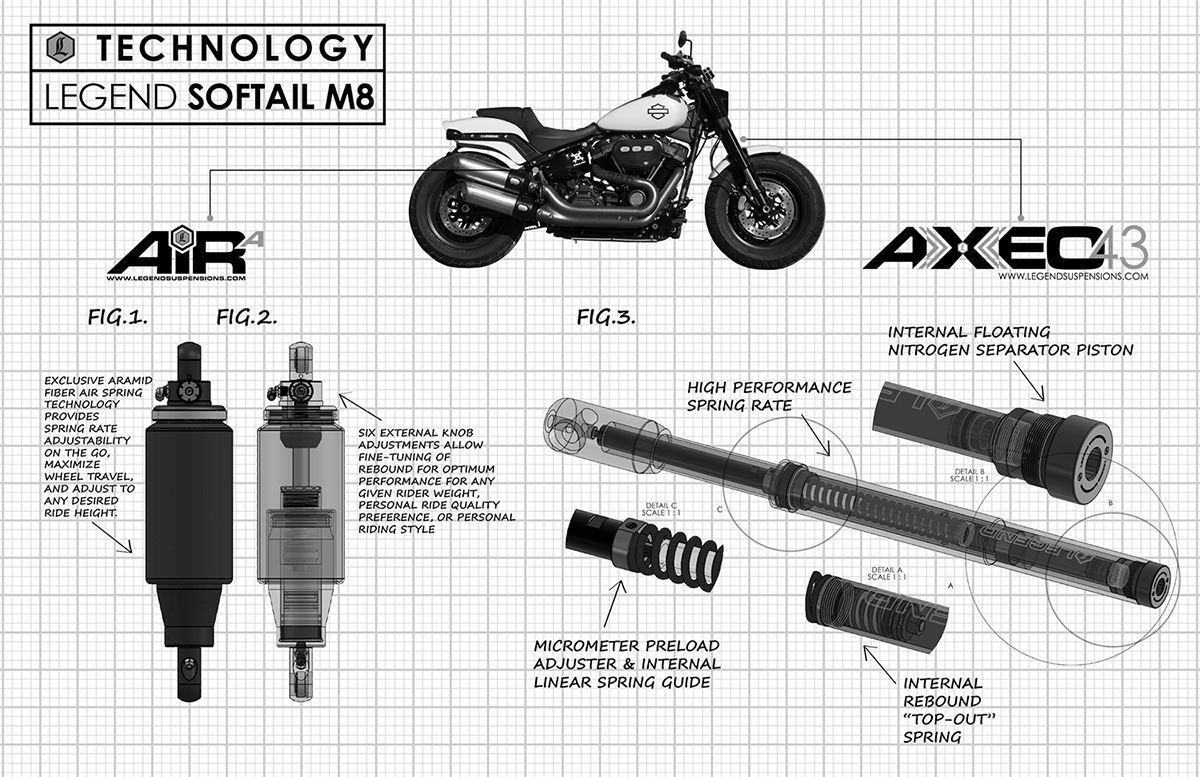

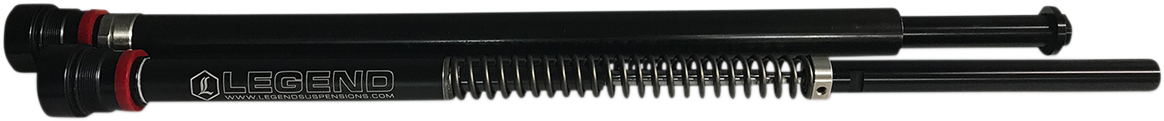

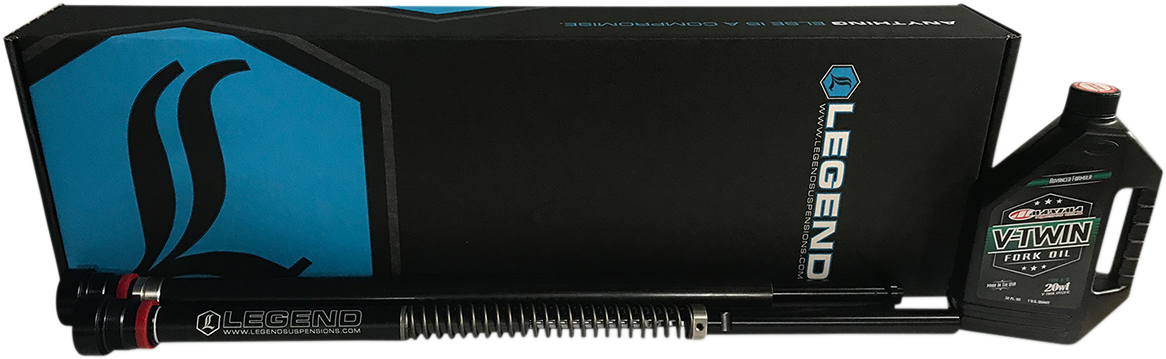

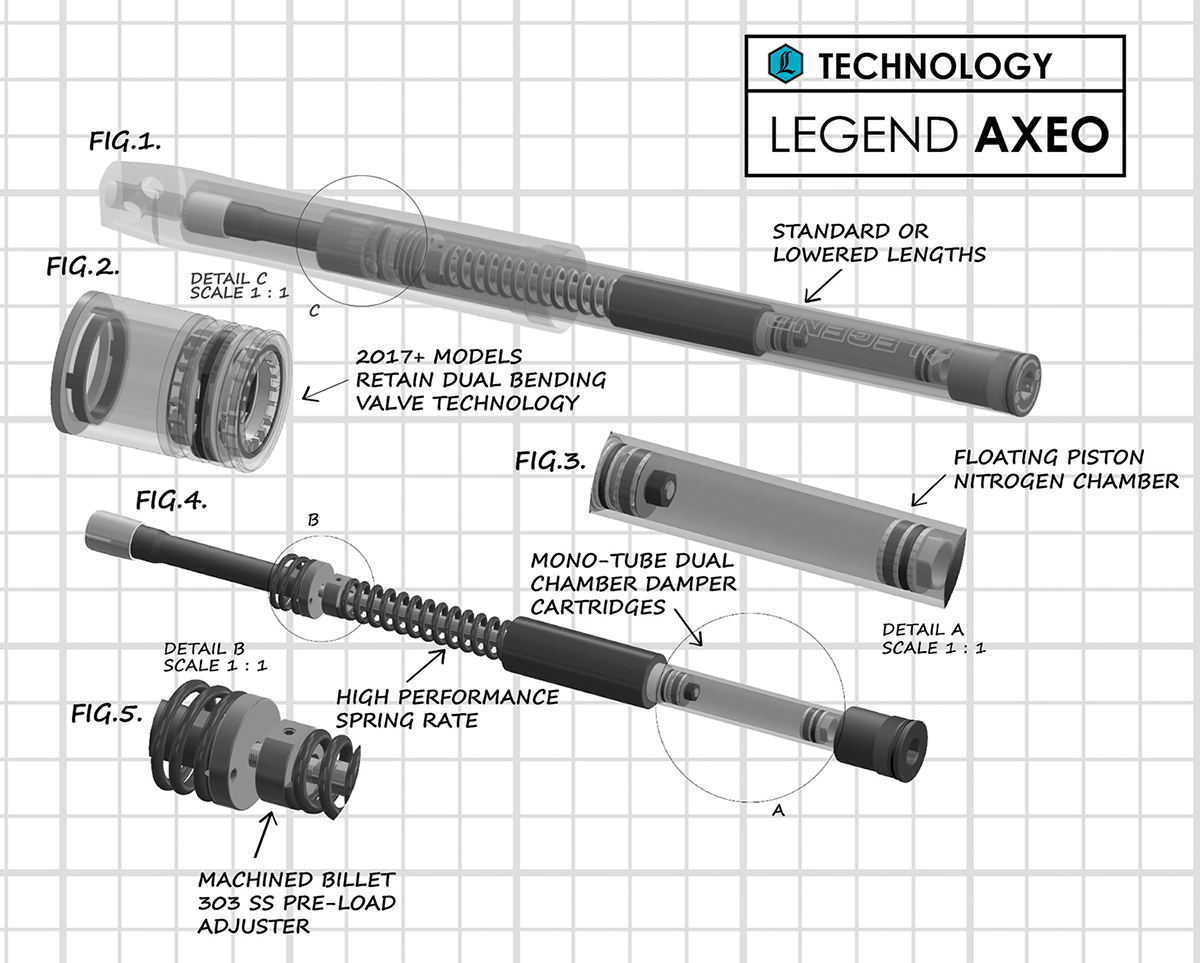

Replaces the asymmetrical stock internals with a highperformance twin cartridge set (despite different mounting requirements)Drop-in cartridge that installs easily in a few simple stepsIncludes two mono-tube, dual-chambered, suspension fluid-filled damper cartridgesIncludes Maxima Racing Oil in cartridge and quart bottleNitrogen chamber with internal floating pistonSealed with a high-pressure core Schrader valve specific to nitrogenDamper piston and deflective disc shim stackPerformance-rated springs with internal linear spring guide and top-out springsMachined 303 stainless steel threaded pre-load adjusterMicrometer preload adjuster and internal linear spring guide is designed for and unique to the Legend AXEO43 systemIncreased pre-load range allows fine tuning for various riding styles and weightsInternal rebound top-out springHydraulic bumper with polyurethane bump stopRide quality is smooth and controlledImproves stability, cornering and tractionEliminates front-end dive during aggressive braking and maneuveringFirm feel for high-speed sweeping turnsEliminates bottoming out on large bumps or potholesReduces dragging floorboards and pegsDesigned for optimum performance with Legend rear suspension systemLifetime WarrantyMade by hand in Sturgis, SD USASpecs
For Fork Tube Diameter: 43.00 mm
Model: Axeo
Height Adjustment: Standard
Style: Inverted
Color/Finish: Black
Product Name: Cartridge
Riding Style: Street
Type: Fork Damping
For Fork Tube Diameter: 43,00 mm (1,69")
For Fork Tube Diameter: 1.69"
Units: KitApproximate Package Weight & Dimensions
Weight: 14.3
Height: 5
Length: 34.1
Width: 10.8
