DRAG SPECIALTIES

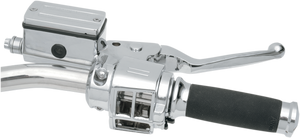

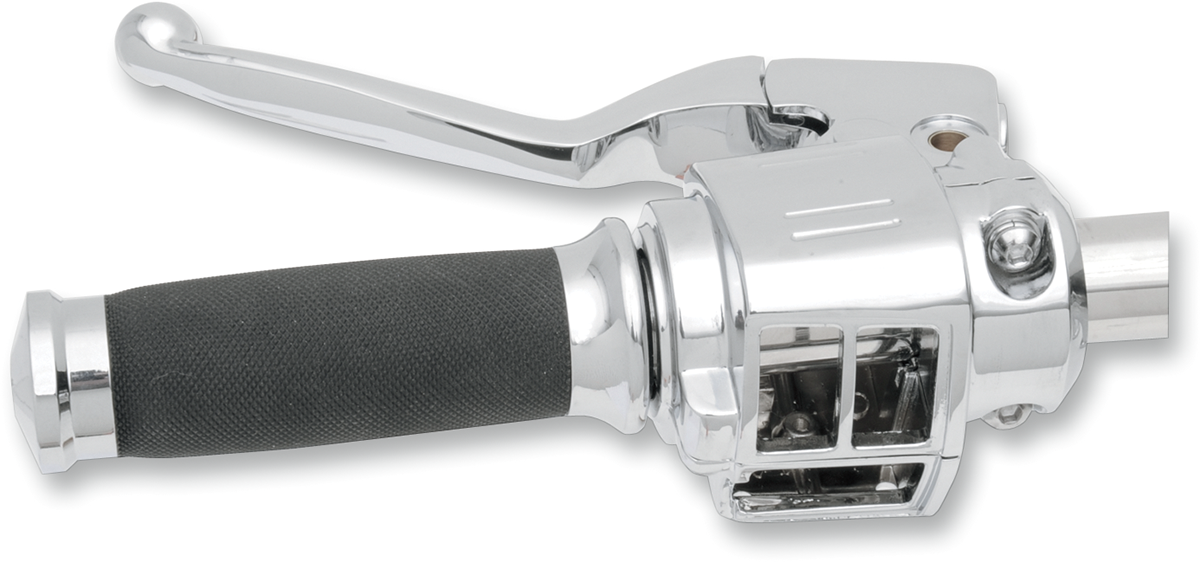

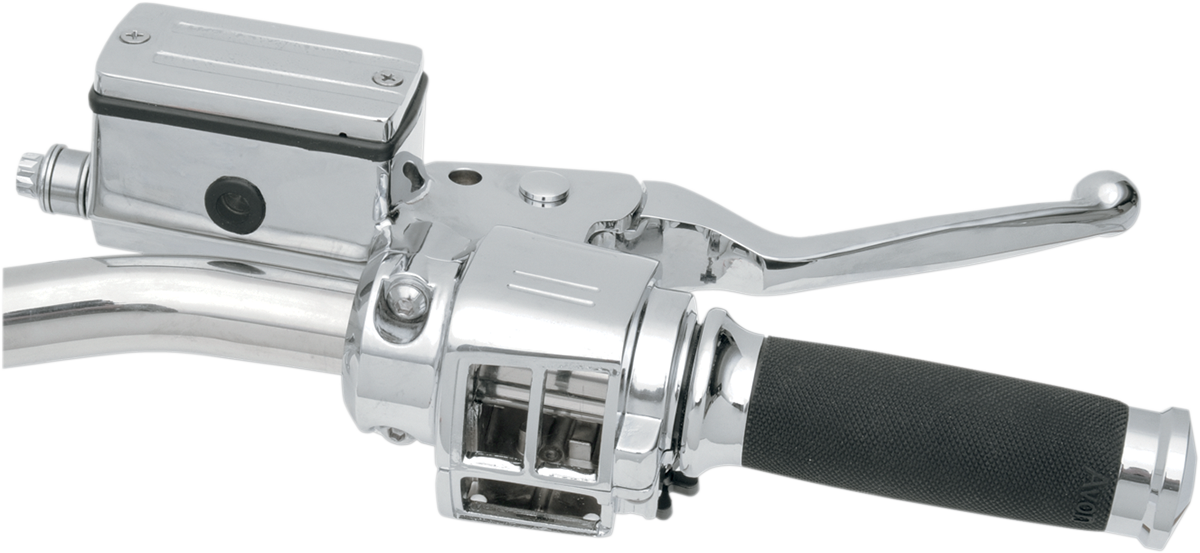

Handlebar Controls - 11/16" Master Cylinder - 84 - 96

0610-0502

Regular price $330.95

DESCRIPTION

Fitments

Years	Make	Model
1990 - 1993	Harley-Davidson	Low Rider Convertible FXRS-CONV
1984 - 1985	Harley-Davidson	Tour Glide Classic FLTC
1988 - 1993	Harley-Davidson	Low Rider Sport FXRS-SP
1993 - 1995	Harley-Davidson	Low Rider FXDL
1984 - 1985	Harley-Davidson	Sport Glide FXRT
1995	Harley-Davidson	Dyna Convertible FXDS-CONV
1994 - 1996	Harley-Davidson	Road King FLHR
1984 - 1985	Harley-Davidson	Electra Glide Classic FLHTC
1985	Harley-Davidson	Electra Glide Standard FLHT

Features

Customize the most visible area the factory overlooked - the handlebar controls

Designed to work with all 1-1/4" diameter handlebars

Chrome die-cast clutch/brake controls with switch housings are sold in complete kits or as individual components

OEM wires and switches mount directly into these housings, so there is no need for new wires and switches

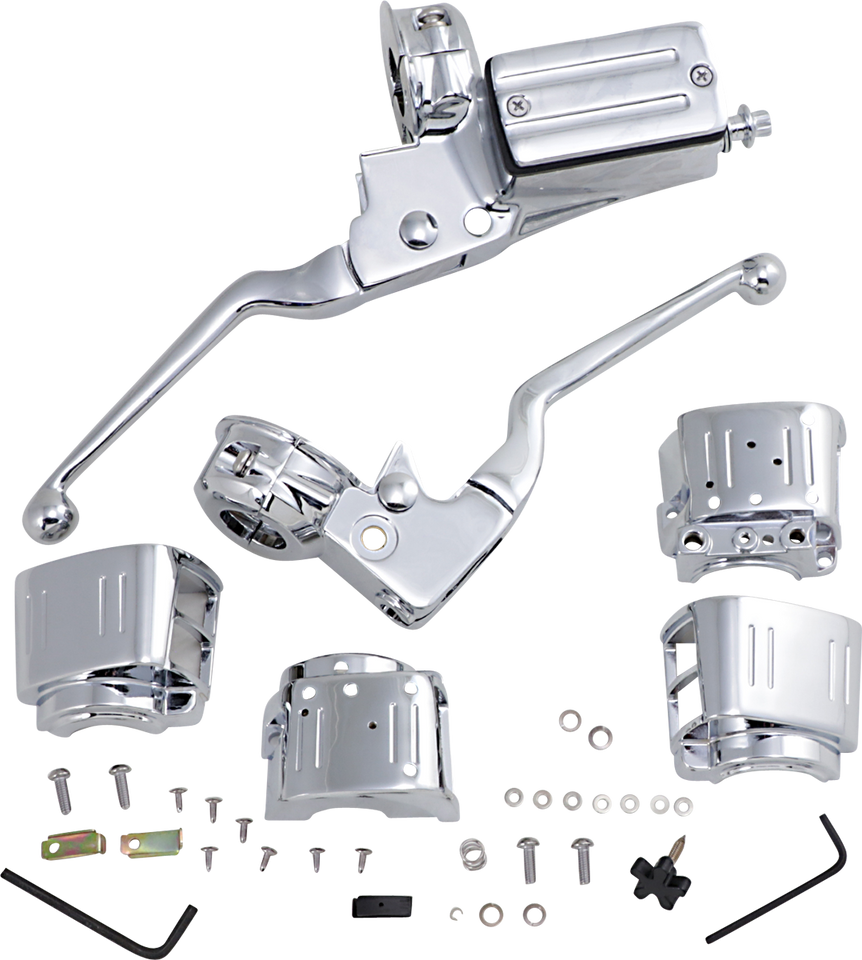

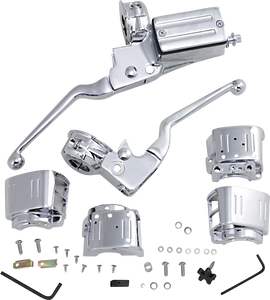

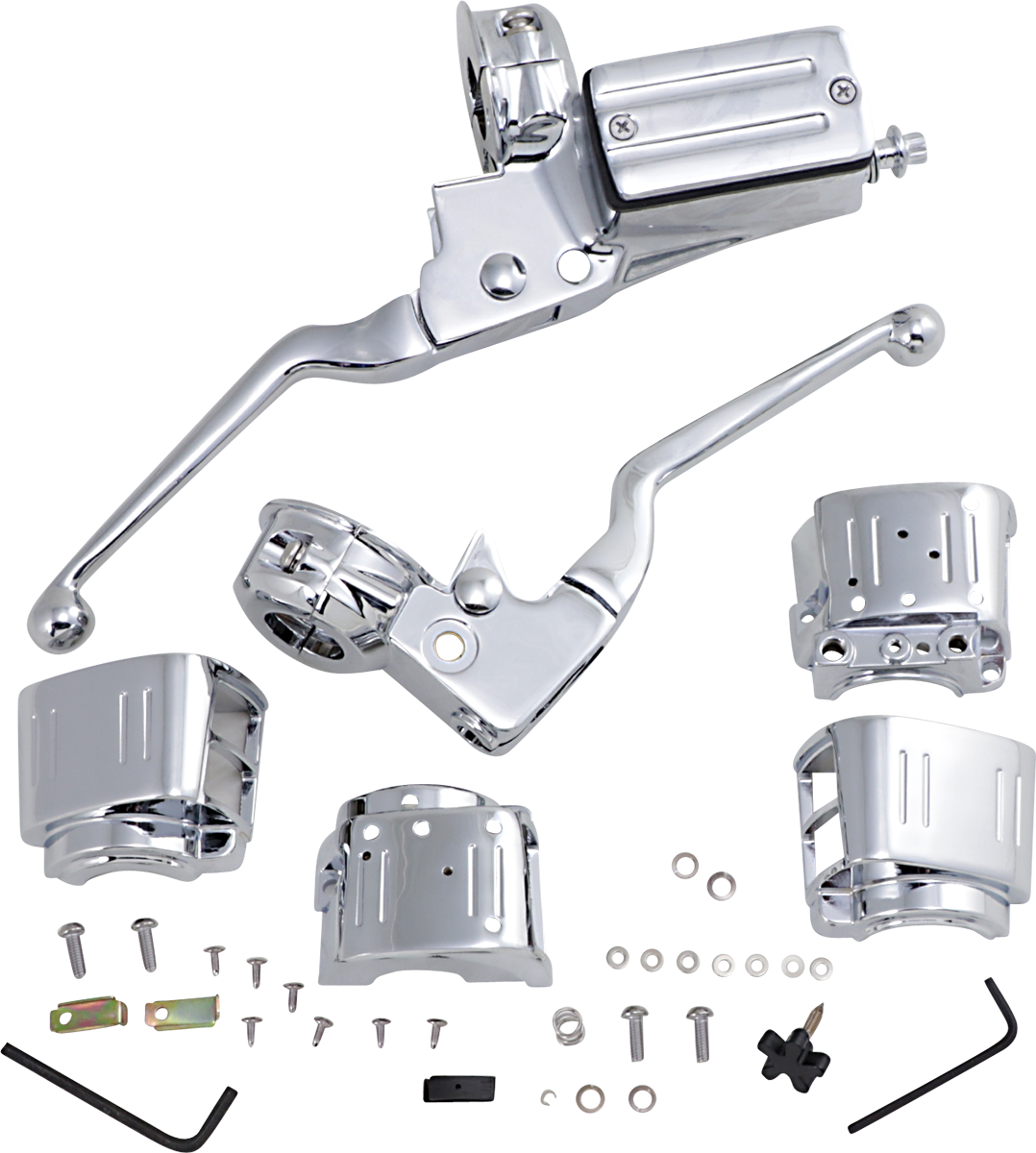

Each Complete Kit includes clutch lever assembly with clamp half, a master cylinder assembly with clamp half, and the right and left switch housings

Switch Housing Kit includes right and left housing only with mounting hardware

Kits come complete with all hardware for easy installation

Specs

Brake Master Cylinder Bore Diameter: 17.5 mm

Compatablity: OEM Compatible

Disc: Dual

for Braking System: Non-ABS

Type: Handlebar

Actuation: Mechanical

Base Color: Silver

Clamping Diameter: 25.4 mm

Features: Without Switches

Finish: Chrome

Brake Master Cylinder Bore Diameter: 17,5 mm (11/16")

Brake Master Cylinder Bore Diameter: 11/16"

Clamping Diameter: 25,4 mm (1")

Color/Finish: Chrome

Material: Aluminum

Riding Style: Street

Clamping Diameter: 1"

Material: Die Cast

Product Name: Control

Units: Kit

Approximate Package Weight & Dimensions

Weight: 4

Height: 4.37

Length: 21.22

Width: 11.33
