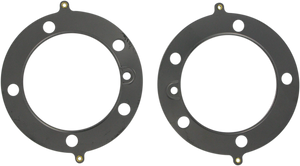

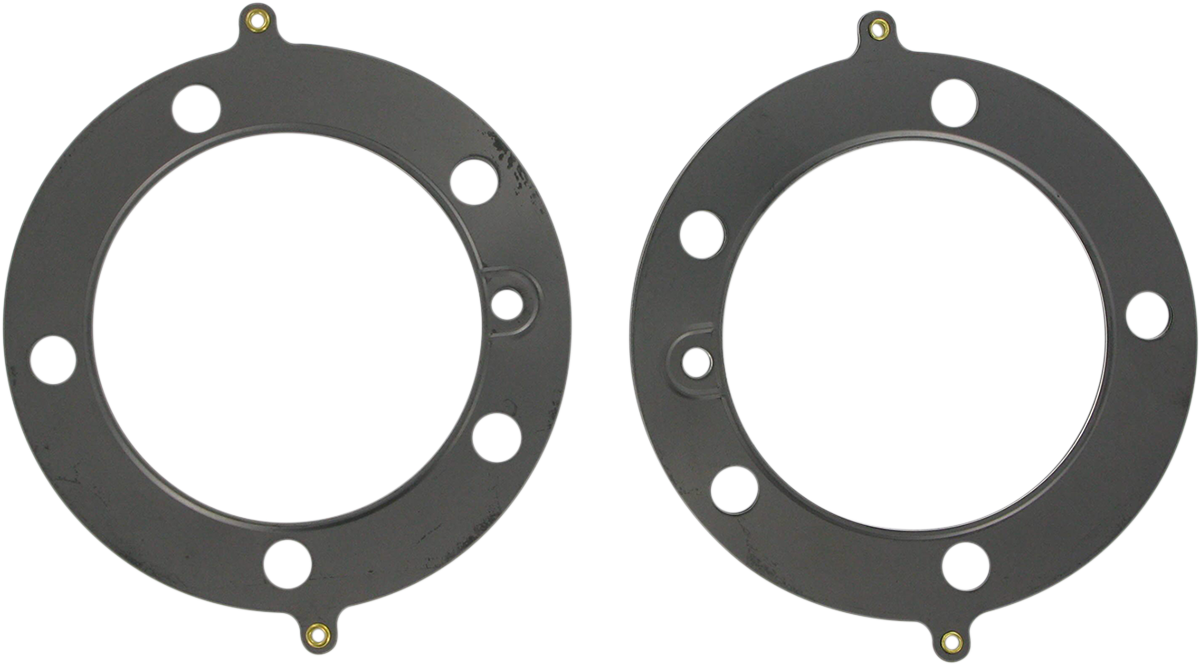

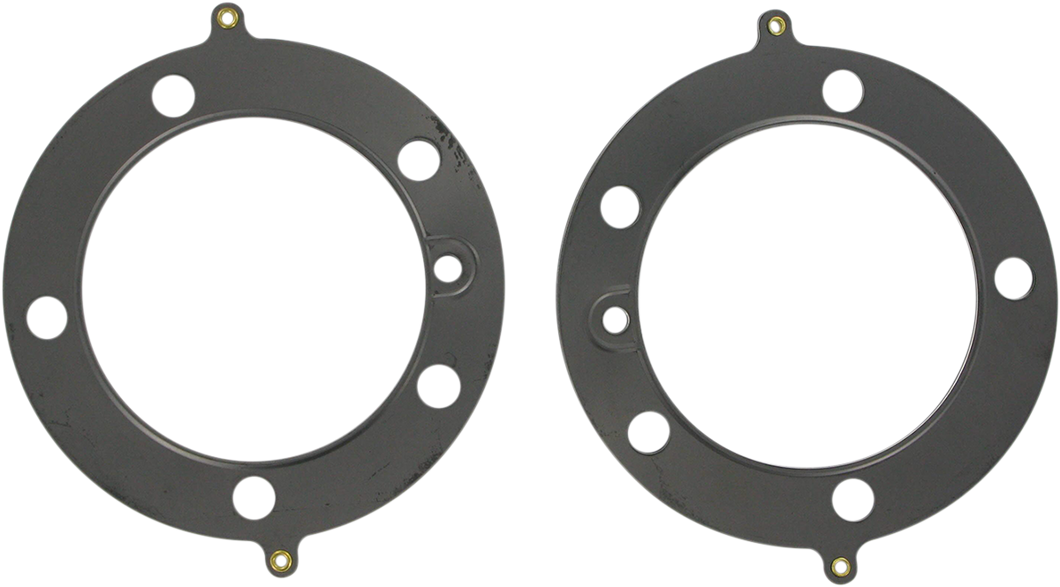

Head Gasket - 3 5/8" - .040"

COMETIC

Head Gasket - 3 5/8" - .040"

0934-0797

Regular price $58.95

-+

Ask about this product

DESCRIPTION


Fitments

Years Make Model
1980 - 1983 Harley-Davidson Tour Glide Classic FLTC
1980 - 1983 Harley-Davidson Tour Glide FLT
1982 - 1983 Harley-Davidson Super Glide II FXR
1982 - 1983 Harley-Davidson Super Glide II FXRS
1980 - 1982 Harley-Davidson Electra Glide Sport FLHS
1983 Harley-Davidson Disc Glide FXDG
1983 Harley-Davidson Sport Glide FXRT
1983 Harley-Davidson Electra Glide Classic FLHTC
1984 Harley-Davidson Electra Glide Special FLHX
1966 - 1980 Harley-Davidson Electra Glide FL
1980 - 1984 Harley-Davidson Wide Glide FXWG
1978 - 1984 Harley-Davidson Electra Glide FLH
1974 - 1980 Harley-Davidson 1200 Super Glide FXE
1979 - 1982 Harley-Davidson Low Rider FXS
1980 - 1982 Harley-Davidson Sturgis FXB
1979 - 1981 Harley-Davidson Fat Bob FXEF
1977 - 1979 Harley-Davidson 1200 Low Rider FXS
1966 - 1980 Harley-Davidson 1200 Electra Glide FLH
1981 - 1982 Harley-Davidson Electra Glide Classic FLH
1971 - 1978 Harley-Davidson 1200 Super Glide FX
1979 - 1980 Harley-Davidson 1200 Fat Bob FXEF
1981 Harley-Davidson Electra Glide Heritage FLH
1979 - 1984 Harley-Davidson Super Glide 80 FXE
1983 - 1984 Harley-Davidson Low Rider FXSB
1983 Harley-Davidson Electra Glide Standard FLHT

Features

  • Center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements
  • Outer layers are embossed and coated on both sides with Viton to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes
  • MLS (Multi-Layer Steel) head gaskets promote an even torque load across the gasket sealing surface utilizing LCE (Load Control Embossments), providing less bore distortion and better piston ring seal for more power
  • Made in the U.S.A.

  • Specs

  • Thickness: 0,040"
  • Thickness: 1.02 mm
  • Bore Size: 3,625"
  • Bore Size: 3.625"
  • Riding Style: Street
  • Type: Cylinder Head
  • Product Name: Gasket
  • Units: Pair
  • Material: Layered Steel
  • Material: Viton
  • Thickness: 1,02 mm (0,040")

  • Approximate Package Weight & Dimensions

  • Weight: 0.34
  • Height: 0.47
  • Length: 7.08
  • Width: 5.94
