DESCRIPTION
Fitments
| Years |
Make |
Model |
| 1988 - 2003 |
Harley-Davidson |
Sportster 1200 XLH |
| 1996 - 2003 |
Harley-Davidson |
1200 Custom XLC |
| 1996 - 2003 |
Harley-Davidson |
1200 Sport XLS |
Features

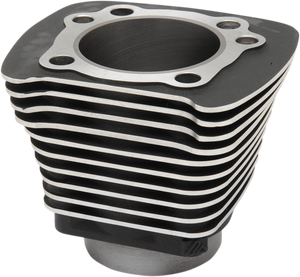

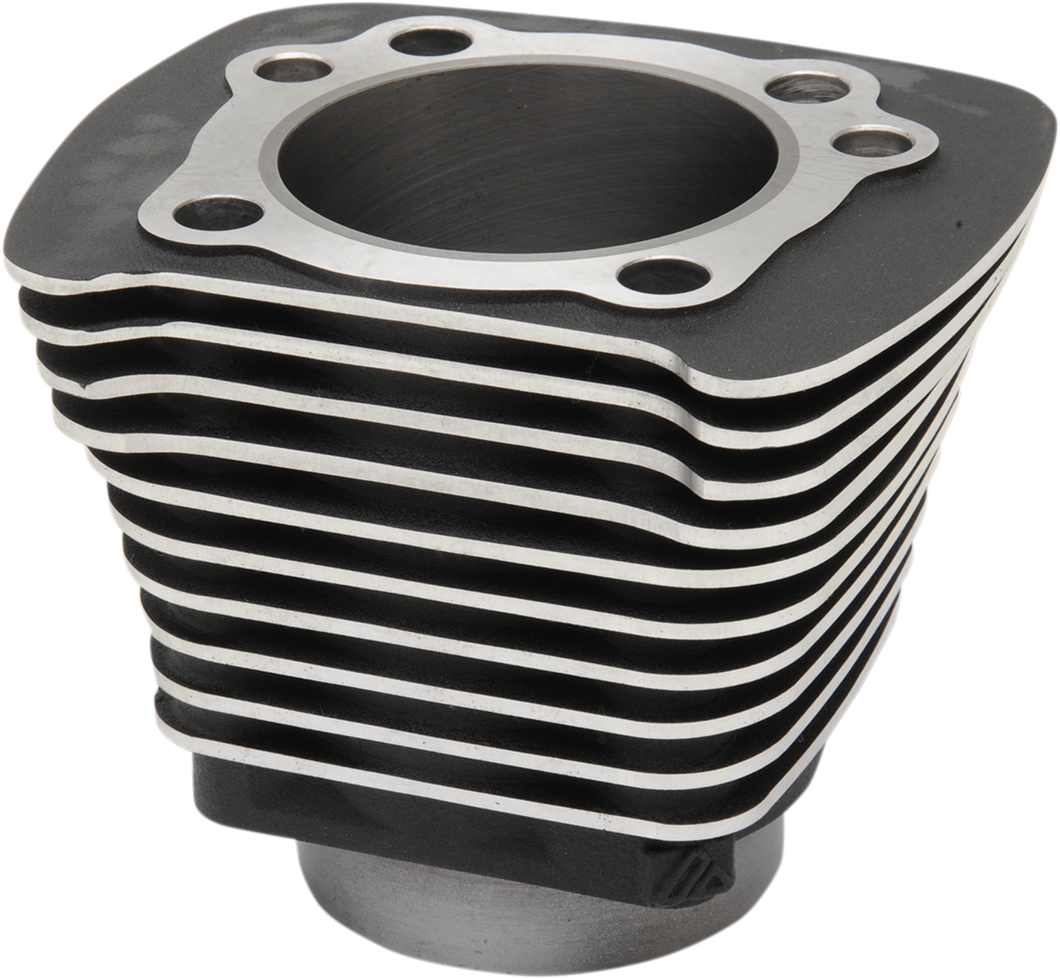

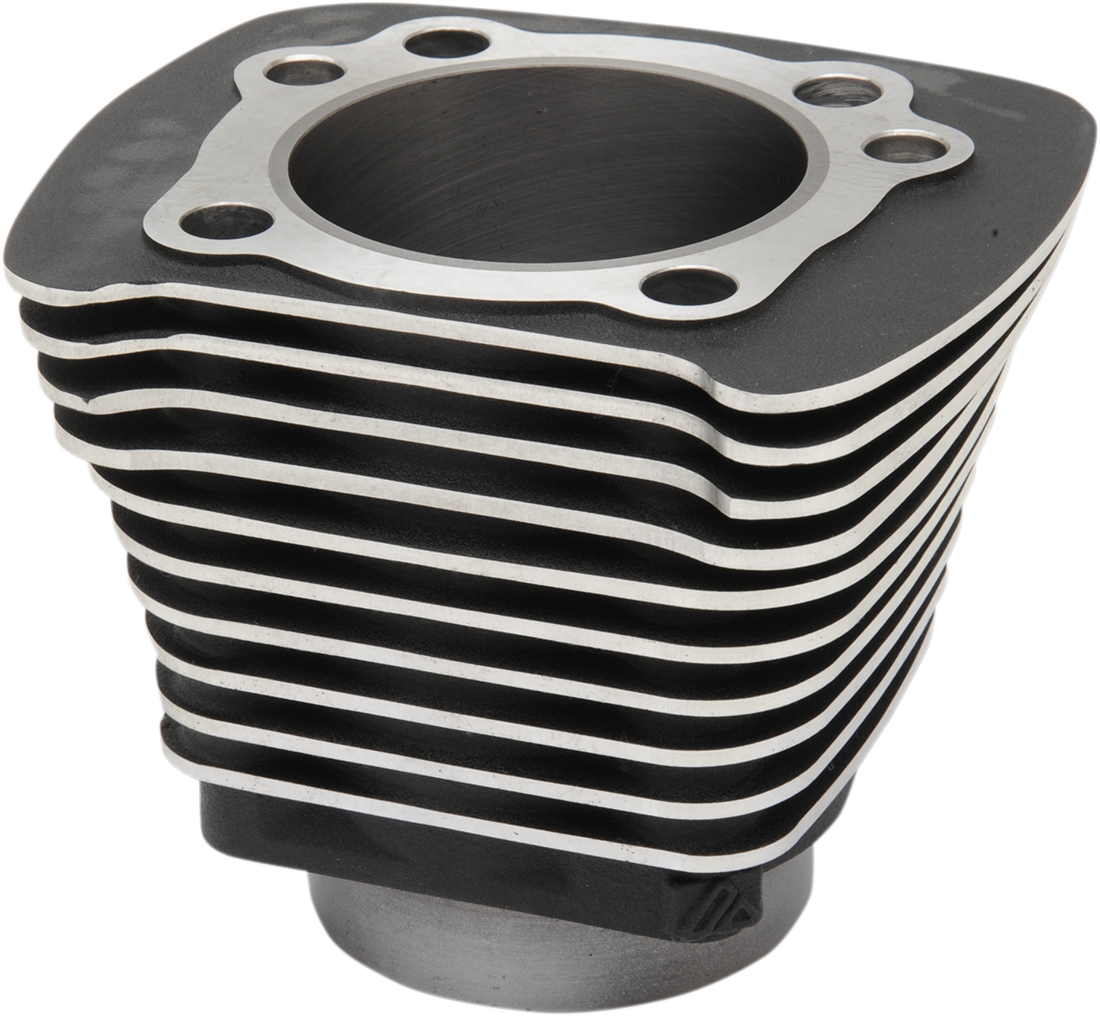

Replacement cylinders feature ductile cast-iron sleeves in aluminum castingsSleeve has external ribs that lock the sleeve to the aluminum casting so it cannot moveExcellent for stock replacementCylinders are finished slightly undersized so they may be finish-honed to fit your pistons1200 XL cylinders make increasing the displacement of an 883 a snapSpecs
Displacement: 1200 cc
Material: Cast
Product Name: Cylinder
Riding Style: Street
Bore Size: 3,500"
Material: Aluminum
Material: Iron
Units: Each
Bore Size: 3.500"Approximate Package Weight & Dimensions
Weight: 7.28
Height: 8.26
Length: 8.66
Width: 8.46
